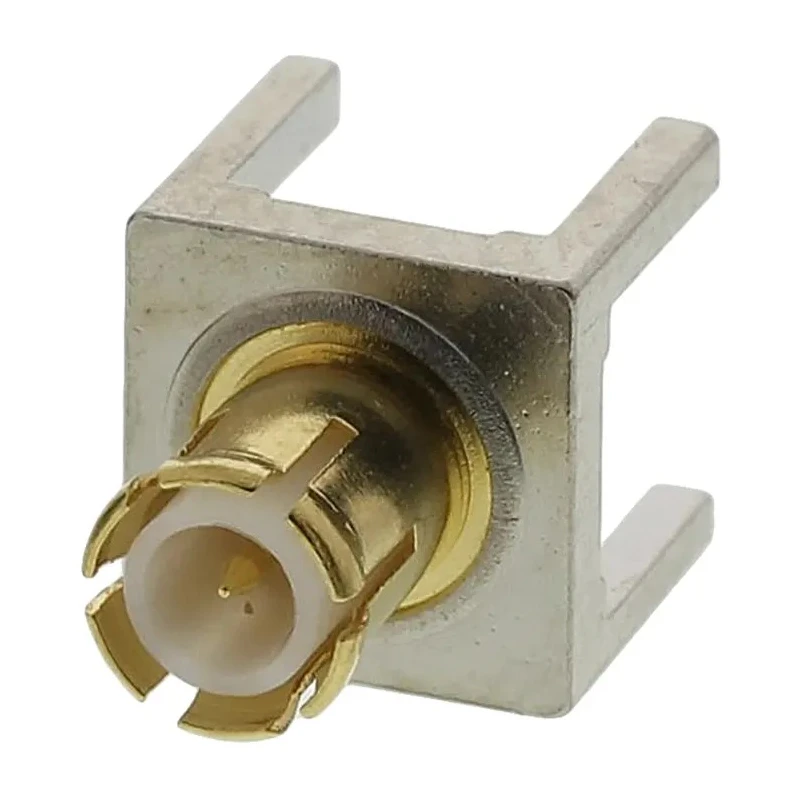

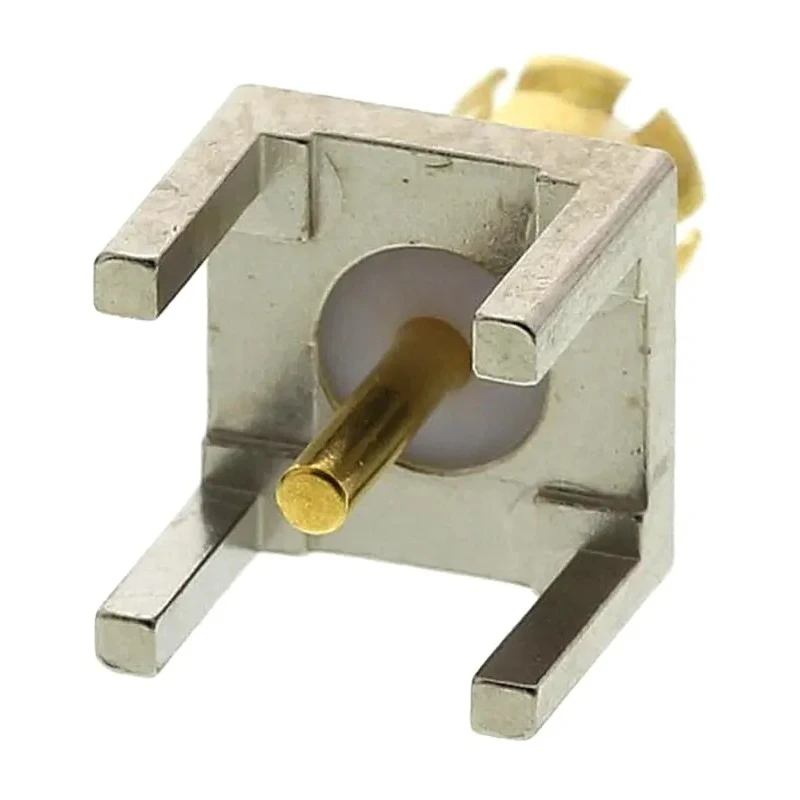

TE Connectivity AMP Series Coaxial Connector Through Hole Male MCX 50 Ω Straight Body Solder 1061015-1

TE Connectivity 1061015-1 AMP Series Coaxial Connector is a precision-engineered through hole male MCX connector with 50 Ω impedance and straight body solder termination. This connector provides a durable and reliable solution for RF applications requiring a compact form factor and high-frequency performance up to 4 GHz.

Constructed with beryllium copper contact material and gold plating, it ensures excellent electrical conductivity and long-term reliability. The body plating is nickel, offering robust resistance against corrosion in harsh environments. The connector supports a wide temperature range from -55°C minimum to 165°C maximum, enabling its use in varied industrial, automotive, and communication conditions.

The through hole mount type delivers stable mechanical retention on PCBs. The AMP series connectors utilize a microminiature snap-on interface, eliminating the need for threading while saving space compared to traditional SMB connectors. This makes it suitable for dense circuit packaging and high-frequency broadband applications.

Typical industrial use cases include GPS systems, automotive electronics, wireless communication devices, and broadcast equipment. The connector is fully mateable with standard MCX connectors and complies with CECC interface standards. Its compact design and reliable quick connect/disconnect feature improve assembly efficiency and operational flexibility.

TE Connectivity's MCX range is recognized for high performance and durability in demanding environments. This model 1061015-1 is a standard-sized, normal polarity connector providing straight orientation and solder termination. It is ideal for applications needing a compact, high-frequency coaxial connector with excellent mechanical and electrical properties.

Designed for MMCX-style snap-on coupling with reliable quick connect/disconnect functionality. Constructed with beryllium copper contacts plated in gold for conductivity and durability. Nickel-plated body ensures corrosion resistance and longevity.

Operates over a frequency range up to 4 GHz, suitable for high-frequency applications. Wide operating temperature range from -55°C to 165°C for versatile environments. Through hole mount type provides sturdy PCB attachment.

Ideal for use in GPS, automotive, wireless communication, and broadcast systems. Maintains compatibility with standard MCX connectors conforming to CECC specifications. Compact and lightweight design supports dense packaging layouts.
