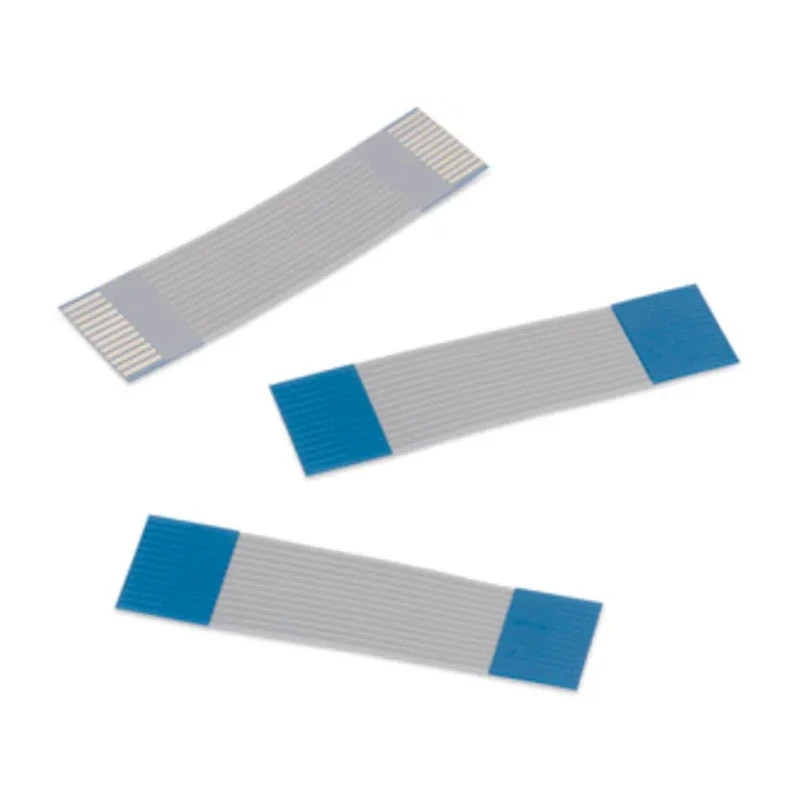

Wurth Elektronik WR-FFC Series Ribbon Cable 22 Conductors 1 mm Pitch 100 mm Length 686622100001

Wurth Elektronik 686622100001 WR-FFC Series Ribbon Cable is a Type 1 flat flexible cable designed with a 1 mm pitch and 22 conductors over a 100 mm length. This ribbon cable offers high flexibility and reliability, ideal for complex and compact board to board connections requiring secure and space-saving solutions.

The cable features a polyphenylene ether jacket in white, providing excellent insulation and durability. Copper conductors ensure efficient electrical conductivity and signal integrity. A blue PET support tape at each end facilitates easy ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connector mating, simplifying assembly.

These cables have been tested for high flexibility with a flex rating of 180 degrees over 20 cycles, making them suitable for applications where movement or bending is typical. The WR-FFC series cables comply with RoHS environmental standards, aligning with current regulations.

Applications of Wurth Elektronik's WR-FFC Ribbon Cable include board to board electrical connections in LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook PCs. Their low profile and lightweight design contribute to cost savings and efficient space usage in electronics manufacturing.

Manufactured in China with stringent quality controls, these cables are an excellent choice for electronic design engineers seeking reliable, flexible flat cables for various industrial, commercial, and consumer electronics applications.

Flat flexible cable with Type 1 1.00 mm pitch for secure, lightweight connections. Highly flexible cable tested for over 20 flex cycles at 180 degrees. Blue PET support tape at ends facilitates ZIF and LIF connector assembly.

Constructed with copper conductors and polyphenylene ether jacket material for durability. White colored jacket ideal for visual identification and insulation. Compliant with RoHS standards ensuring environmental safety.

Suitable for complex, compact board to board applications requiring high flexibility. Commonly used in LCDs, printers, scanners, DVD players, and notebook PCs. Manufactured in China and crafted for consistent quality and performance.
