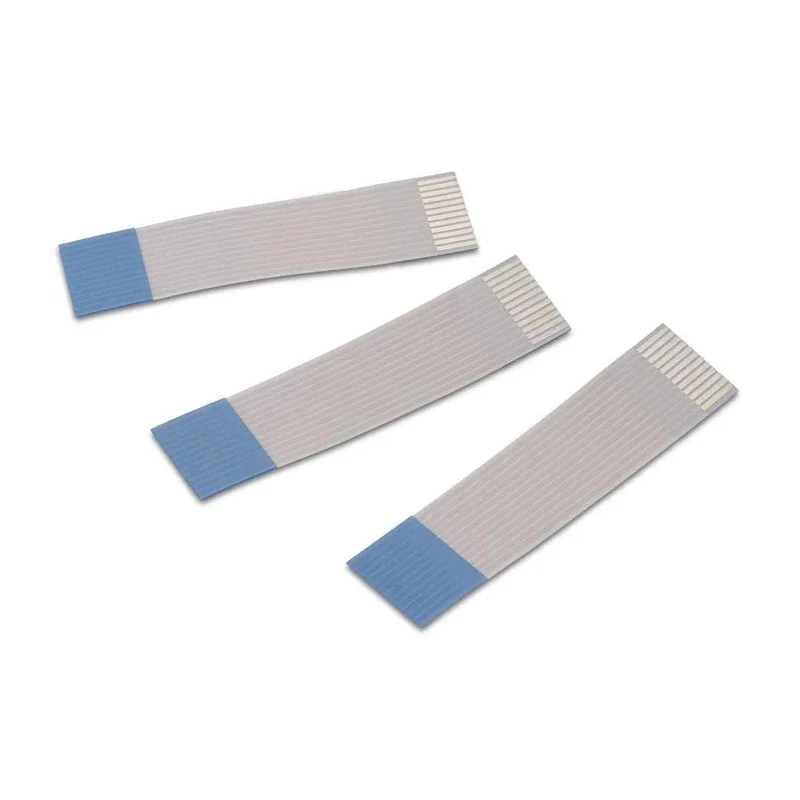

Wurth Elektronik WR-FFC Series Ribbon Cable 24 Conductors 1 mm Pitch 200 mm Length 686724200001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Cable Length | 200mm |
| Series | WR-FFC |
| Conductor Material | Copper |
| Jacket Material | Polyphenylene Ether |
| Pitch | 1mm |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | White |
| Number of Conductors | 24 |
Key Features
- This cable has a 1.00 mm pitch for precise fit and compatibility.
- The WR-FFC series uses Type 2 flat flexible jumper cables to ensure high density and space saving.
- Constructed with copper conductors and a polyphenylene ether white jacket for durability.
- These cables offer excellent flexibility with a 180° flexing test lasting more than 20 cycles.
- Blue PET support tape at each end facilitates ZIF or LIF connections.
- Available in lengths up to 200 mm, suitable for complex and confined electronic applications.
- RoHS compliant material ensures environmental safety and regulatory compliance.
Product Description
Wurth Elektronik 686724200001 WR-FFC Series Ribbon Cable offers a reliable, lightweight, and highly flexible connection solution for board-to-board applications. It comprises 24 copper conductors spaced at a 1 mm pitch and encased in a white Polyphenylene Ether jacket, delivering durability and environmental resistance. Measuring 200 mm in length, this FFC cable belongs to the WR-FFC series Type 2 category, known for high-density and space-saving designs essential in modern compact electronics.
The cable’s enhanced flexibility is proven by its ability to endure over 20 flexing cycles at 180°, making it well-suited for devices requiring frequent bending or placement within tight spaces. The blue PET support tape at both ends supports Zero Insertion Force (ZIF) and Low Insertion Force (LIF) connectors, simplifying assembly and enhancing connection security.
This Ribbon Cable is ideal for applications across various industries including consumer electronics, LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook PCs. It provides robust, low-cost solutions for establishing electrical connections between PCBs and display boards, supporting high-flex and high-density configurations effectively.
This product complies with RoHS regulations, ensuring safe use and reduced environmental impact. The cable’s polyphenylene ether jacket offers excellent electrical insulation and mechanical protection. Typical uses cover industrial, consumer electronics, and manufacturing applications requiring flexible and compact wiring solutions.
Available with various lengths and circuit options to accommodate different design requirements.
Discover the Wurth Elektronik WR-FFC series for engineering solutions demanding thin, flexible, and reliable ribbon cabling. Explore the full range on EnvMart to access premium quality cables and improve your electronic assembly's performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ribbon cable measures 200 mm in length.
It features 24 copper conductors.
The conductors are spaced at a 1 mm pitch.
The jacket is made from polyphenylene ether, which provides durability and electrical insulation.
Yes, it complies with RoHS regulations, ensuring safe use and reduced environmental impact.
It is suitable for applications in consumer electronics, LCD appliances, printers, scanners, and notebook PCs.
The blue PET support tape at each end facilitates Zero Insertion Force (ZIF) and Low Insertion Force (LIF) connections.
It has been tested to endure over 20 flexing cycles at 180°, making it highly flexible for tight spaces.
The cable is manufactured in China.
The jacket is white in color.
It is classified as a Type 2 flat flexible cable.
Typical uses include establishing electrical connections between PCBs and display boards in various electronic devices.
