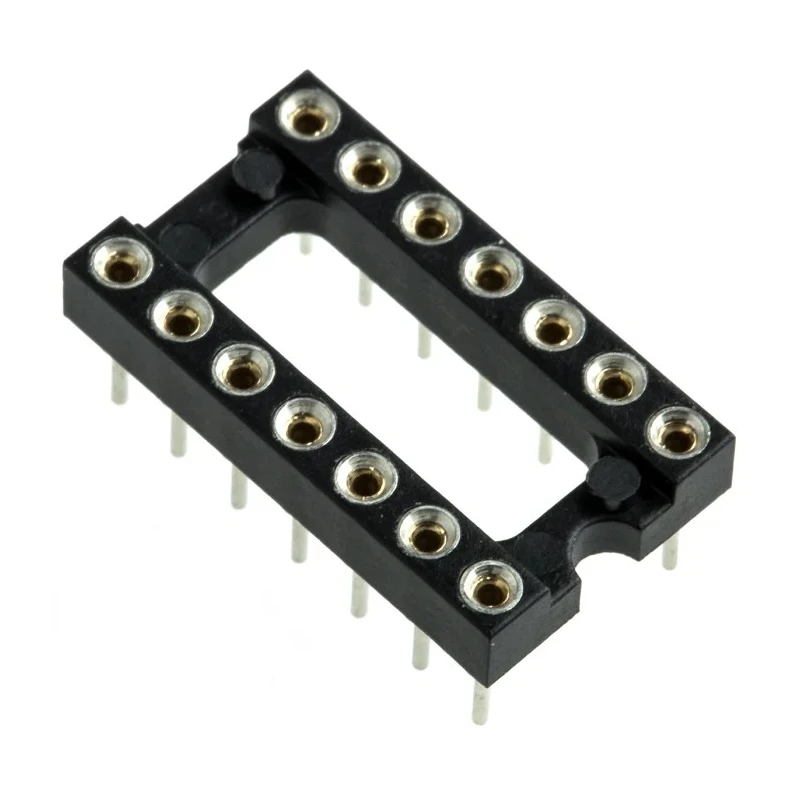

Preci-Dip 14 Way 2.54 mm Pitch Vertical Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-314-41-001101

The Preci-Dip 110-87-314-41-001101 is a 14 way, vertical through-hole DIL socket designed for electronic component mounting with a 2.54 mm pitch. This open frame socket provides reliable connectivity, ideal for industrial and laboratory electronic assembly applications.

Featuring turned pins, this socket ensures stable mechanical and electrical performance. The contact clips are plated with tin and gold, combining excellent corrosion resistance with optimal conductivity, while the contacts are made from brass and beryllium copper alloy for superior durability.

The housing is fabricated from fibreglass reinforced polyethylene terephthalate, ensuring mechanical strength and thermal stability. The product supports solder termination for secure PCB mounting, with an operating current of 1A and voltage rating of 150V DC.

Its vertical orientation and standard 7.62 mm row width make it suitable for a wide range of electronic designs. Temperature endurance from -55°C to 125°C enables use in diverse environments, while the open frame design facilitates easy inspection and maintenance.

This socket complies with UL 94V-0 standards, reflecting its safety and quality level, and is manufactured in Switzerland, assuring precision and reliability. The socket supports 14 contacts arranged in a dual-in-line form factor.

It includes turned pins for effective and stable connections on circuit boards. The open frame design allows efficient soldering and inspection. Contact plating with tin and gold ensures excellent conductivity and durability.

Suitable for use in industrial, laboratory, manufacturing, and electronic research environments. Rated current is 1 Ampere with a voltage capacity of 150V DC. The housing is made from fibreglass reinforced polyethylene terephthalate for mechanical strength.

Tolerant to a wide temperature range from -55°C to 125°C. Standard 2.54 mm pitch and 7.62 mm row width for compatibility across PCBs. RoHS compliant and manufactured to high quality Swiss standards. Explore more electronics components and DIL Sockets at EnvMart's dedicated categories to find compatible and high-quality products for your projects and manufacturing needs.
