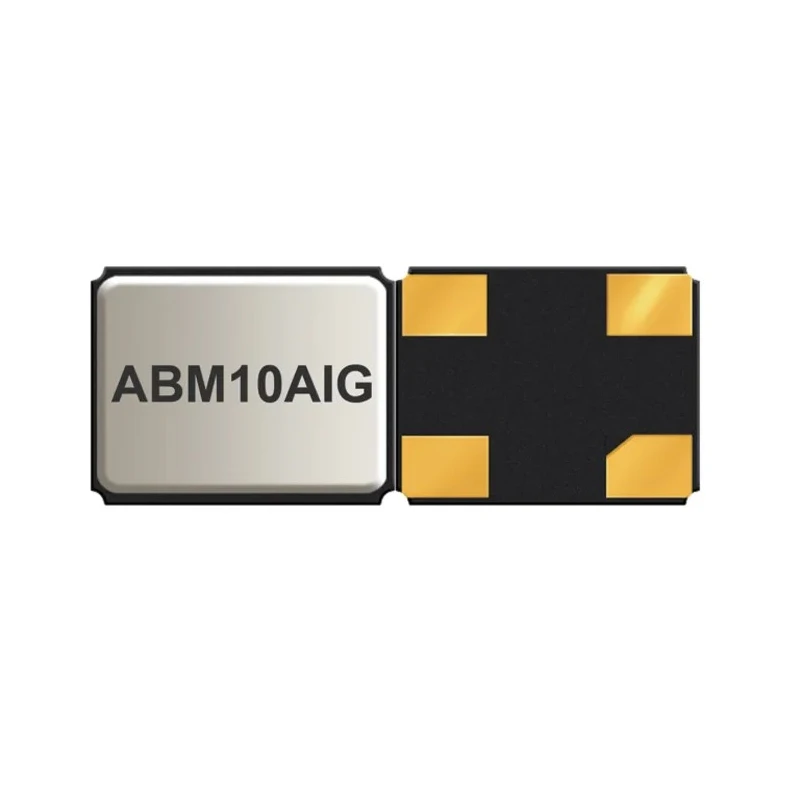

Abracon 24 MHz Surface Mount Ceramic Package 4-Pin Crystal ±50 ppm ABM10AIG-24.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-24.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 24MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- High precision frequency standard at 24 MHz with ±50 ppm tolerance.
- Packaged in a hermetically sealed ceramic 4-pin surface mount package.
- Operating temperature range from -40°C to 125°C suitable for industrial and automotive use.
- Low series resistance of 60 Ω ensuring efficient signal performance.
- AEC-Q200 qualified and automotive grade 1 certified for robust applications.
- Featuring tape and reel packaging for automated assembly processes.
- Load capacitance of 10 pF suitable for standard crystal oscillator circuits.
Product Description
The Abracon ABM10AIG-24.000MHZ-4Z-T3 is a high-quality 24 MHz crystal unit designed for automotive and industrial electronics requiring precise timing and frequency control. It features a hermetically seam-sealed ceramic package with a 4-pin surface mount configuration, ensuring durability and reliability in harsh environments.
This crystal operates within a wide temperature range from -40°C to 125°C, meeting Automotive Grade 1 standards and AEC-Q200 qualification, making it suitable for automotive infotainment systems, GPS navigation, ADAS, LiDAR, and other advanced control systems.
With a frequency tolerance of ±50 ppm and series resistance of 60 Ω, it offers excellent frequency stability and low signal loss. The crystal’s compact size (2.5 x 2.0 x 0.55 mm) allows for dense PCB layouts and space-efficient designs.
The package is supplied on tape and reel, facilitating easy integration into automated PCB assembly lines. With a load capacitance rating of 10 pF, it fits standard oscillator circuit requirements.
Additional certifications include RoHS/RoHS II compliance and TS16949 production line certification, with PPAP available upon request for quality assurance. High precision 24 MHz frequency with ±50 ppm tolerance. Hermetically sealed ceramic package protecting the crystal element.
Wide operating temperature range suited for automotive applications. Automotive Grade 1 and AEC-Q200 qualified for superior reliability. Tape and reel packaging optimized for manufacturing efficiency. Compact surface mount 4-pin design for space savings.
Low series resistance enhancing signal quality and stability.
This crystal unit is ideal for demanding industrial, automotive, and communication electronics applications requiring stable and accurate frequency sources. Explore more Abracon products in the Crystal Units category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 24 MHz.
It has an operating temperature range from -40°C to 125°C, making it suitable for various applications.
The load capacitance rating is 10 pF, which is suitable for standard crystal oscillator circuits.
It is supplied on tape and reel, facilitating easy integration into automated PCB assembly lines.
The series resistance is 60 Ω, which helps ensure efficient signal performance.
The dimensions are 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
It is AEC-Q200 qualified and classified as Automotive Grade 1, suitable for automotive applications.
This crystal unit is ideal for automotive infotainment systems, GPS navigation, ADAS, and LiDAR applications.
It features a hermetically sealed ceramic package, ensuring durability and reliability in harsh environments.
Yes, it is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
This model has a pin count of 4, suitable for surface mount applications.
The country of origin for this crystal unit is India.
