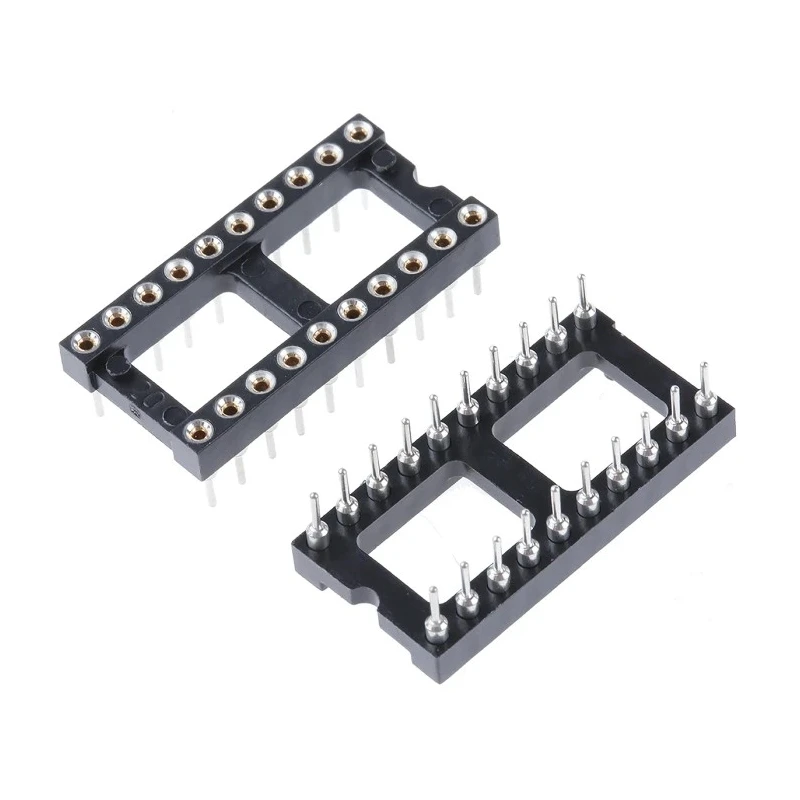

Preci-Dip 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-420-41-001101

Preci-Dip 110-87-420-41-001101 is a precision Swiss-made dual-in-line (DIL) socket featuring a 2.54 mm pitch vertical configuration with 20 contact points. Designed for through-hole mounting on printed circuit boards, it utilizes turned pin contacts housed in an open frame body, enabling secure electrical connections and easy circuit board assembly.

The socket contacts are crafted from brass and beryllium copper alloy, plated with tin and a gold flash to ensure excellent durability and low resistance, making it suitable for industrial, laboratory, and telecommunications electronic applications. The housing material is fibreglass reinforced polyethylene terephthalate, which provides mechanical strength and high temperature resistance.

Operating voltage is rated at 150 V dc with a current carrying capacity of 1A, and it supports continuous operation in environmental temperatures ranging from -55°C up to 125°C. The product dimensions (length 25.4 mm, width 12.6 mm, depth 2.8 mm) make it compatible with standard dual-in-line integrated circuits and other electronic components requiring reliable socket connections.

The solder termination type is optimized for through-hole PCB mounting, allowing robust mechanical and electrical connectivity. This socket series is part of the Preci-Dip 110 series, known for precision and quality, enhancing signal integrity in electrical systems.

The socket supports a current rating of 1A for reliable electrical performance. It features a vertical orientation and 2.54 mm pin pitch for standard dual-in-line applications. The open frame design facilitates easy insertion and reliable solder termination.

Constructed with brass and beryllium copper alloy contacts plated with tin and gold for optimal conductivity and corrosion resistance. The housing is made of fibreglass reinforced polyethylene terephthalate ensuring good mechanical strength and thermal stability.

Rated voltage is 150 V dc, suitable for low power electronic circuits. Operating temperature range spans from -55°C to 125°C to accommodate industrial environments. Dimensionally compact with a length of 25.4 mm, width 12.6 mm, and depth 2.8 mm to fit standard PCB layouts.

Termination type is solder, compatible with through-hole PCB assembly methods. Manufactured in Switzerland ensuring high quality and precision standards.

This DIL Socket is commonly utilized in electronic, industrial, and laboratory equipment for easy insertion/removal of ICs and enhancement of circuit testing and maintenance efficiency. It is suited for applications such as prototype boards, test rigs, embedded systems, and other electronic manufacturing uses.
