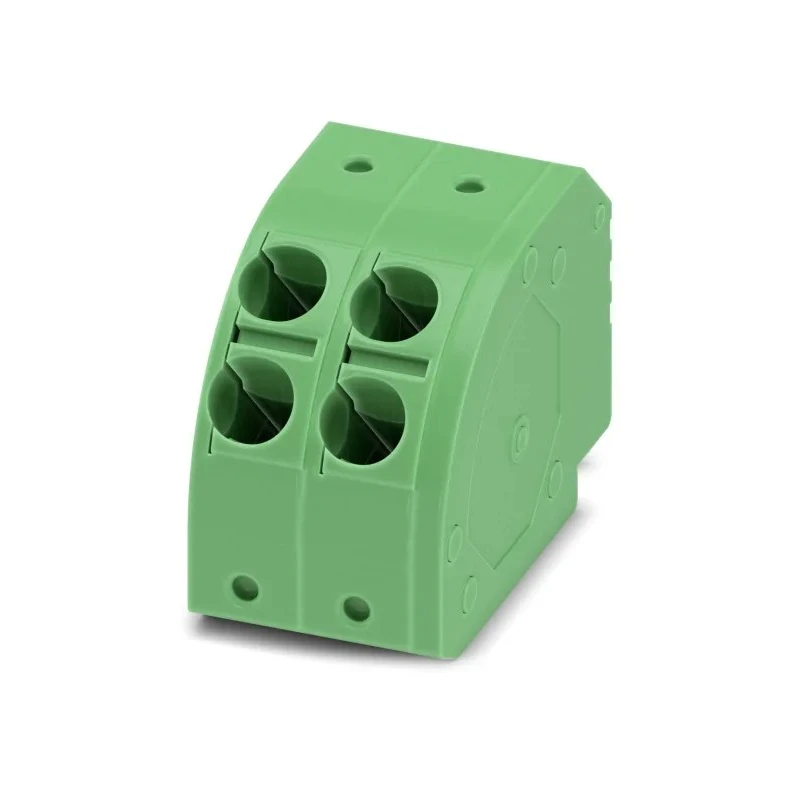

Phoenix Contact Pluggable Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 14A, 630V, Polyamide Housing, Right Angle 1725497

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 14A, 630V, Polyamide Housing, Right Angle 1725497

Name: Phoenix Contact Pluggable Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 14A, 630V, Polyamide Housing, Right Angle 1725497
Brand: PHOENIX CONTACT
SKU: 214193
Price: 1.88 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	630V
Brand	Phoenix Contact
Colour	Green
Orientation	Right Angle
Current	14A
Length	10mm
Model	1725497
Depth	16mm
Width	20mm
Housing Material	Polyamide
Series	PTDA 2.5/2-PH-5.0
Number of Rows	1
Pitch	5mm
Number of Contacts	2
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Push-in Spring

Key Features

Equipped with a polyamide housing for robust durability.
Supports a current rating of 14A and voltage rating of 630V.
Features right-angle orientation with push-in spring wire connection method.
Compatible with wire sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
Designed with spring-cage double connection and a release button for secure and easy wiring.
Offers a 5.0 mm pitch with optional mechanical coding for reliable field connections.
Green color coding assists in visual identification and organization.

Product Description

The Phoenix Contact 1725497 Pluggable Terminal Block is a high-quality PCB connector engineered for reliable electronic and industrial connections. Featuring a 2-contact design with a 5 mm pitch and single row configuration, it is ideal for precise component integration on circuit boards.

Constructed with a durable polyamide housing, this terminal block supports currents up to 14 amperes and operates safely at voltages up to 630 volts. Its right-angle orientation and push-in spring wire connection method provide secure and efficient wiring solutions in compact spaces. It accommodates wire sizes ranging from 0.2 mm² to 2.5 mm², corresponding to 24 AWG to 12 AWG, enabling versatility across various electrical wiring requirements.

The terminal block measures 20 mm in width, 16 mm in depth, and 10 mm in length, making it a compact option for printed circuit boards. The spring-cage double connection system with an integrated release button allows for convenient plugging and unplugging during installation or maintenance.

This product's 5.0 mm pitch ensures consistent spacing for stable electrical contact, and the plug includes optional mechanical coding to prevent incorrect mating during assembly. The green color enhances visual management in complex wiring systems.

Polyamide housing ensures mechanical and thermal resistance. Push-in spring connection method offers fast and secure wire termination. Right-angle design suits PCB applications where space is limited. Spring-cage double connection with release button for efficient wiring.

Electrical ratings: 14A current, 630V voltage compatibility. 5.0 mm pitch and 2-contact configuration for reliable connectivity. Supports wire sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).

This terminal block is suitable for use in electronics assembly, industrial machines, control cabinets, power supply connections, and other applications requiring dependable, compact, and user-friendly terminal solutions. It is part of Phoenix Contact's respected PTDA 2.5/2-PH-5.0 series, known for quality and ease of integration.
