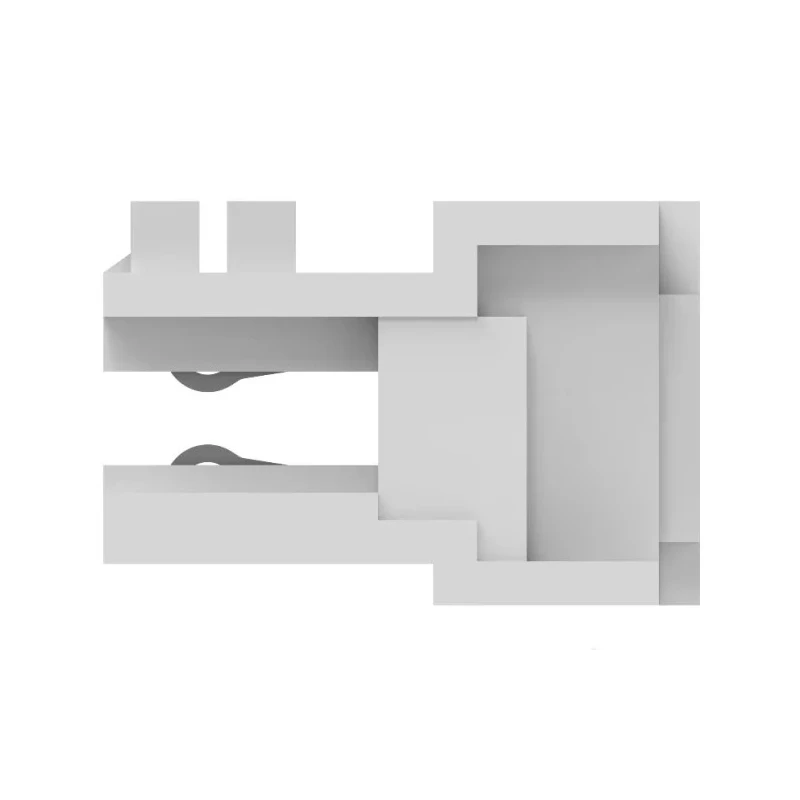

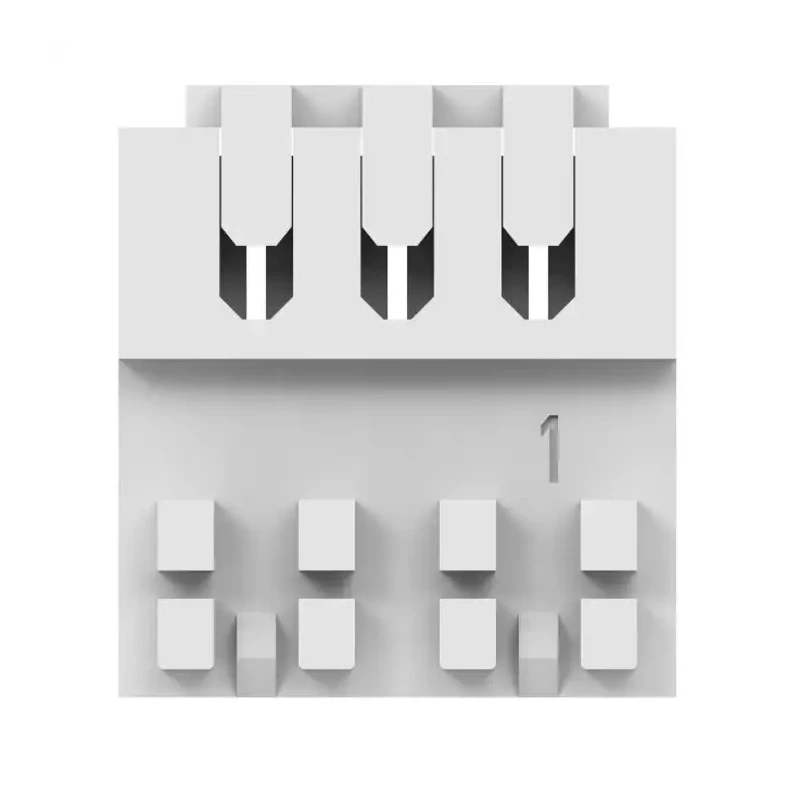

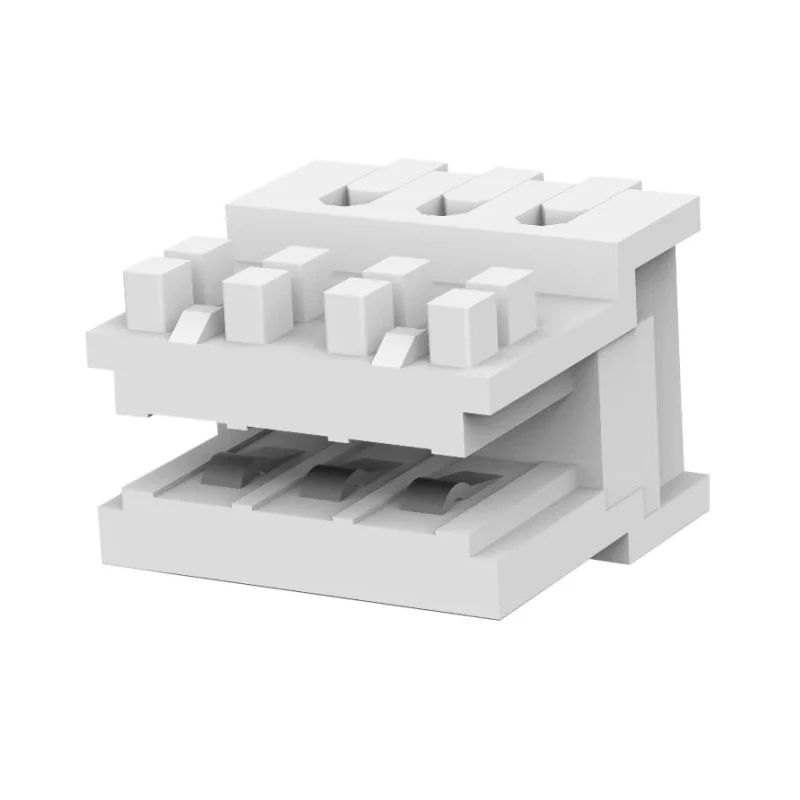

TE Connectivity Right Angle Edge Connector Female Cable 3-Contacts 2.5 mm Pitch 1 Row IDT 1-966194-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Right Angle Edge Connector Female Cable 3-Contacts 2.5 mm Pitch 1 Row IDT 1-966194-3

Name: TE Connectivity Right Angle Edge Connector Female Cable 3-Contacts 2.5 mm Pitch 1 Row IDT 1-966194-3
Brand: TE Connectivity
SKU: 210478
Price: 0.39 USD
Availability: InStock



Category Edge Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Italy
Voltage	63V
Brand	TE Connectivity
Orientation	Right Angle
Current	2A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	IDT
Maximum Operating Temperature	110°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Female
Connector Gender	Female
Card Type	Dual Edge

Key Features

Features right angle orientation for specific mounting requirements.
Equipped with 3 contacts arranged in a single row ensuring compact design.
Utilizes IDC termination type for quick and easy cable connection.
Constructed with phosphor bronze contacts plated with tin for corrosion resistance.
Designed with polybutylene terephthalate housing for durability and protection.
Supports operating temperatures from -40°C to 110°C for versatile applications.
Operates at a voltage rating of 63V and current carrying up to 2A.
Includes keying features for accurate mating and secure locking for strain relief.

Product Description

TE Connectivity 1-966194-3 Right Angle Edge Connector Female is an IDC cable connector featuring 3 contacts spaced at 2.5 mm pitch in a single row configuration. Designed according to the RAST 2.5 specification, this AMP DUOPLUG connector ensures reliable performance in demanding industrial and electronic applications.

The right angle orientation facilitates unique mounting conditions, allowing for easy integration within compact assemblies. Its durable polybutylene terephthalate housing and phosphor bronze contacts with tin plating guarantee excellent electrical conductivity and resistance against corrosion and damage.

This connector operates within a temperature range of -40°C to 110°C, making it suitable for a wide array of environments including household appliances, consumer electronics, telecommunications infrastructure, automotive industry, vending machines, and measuring instruments.

The IDC termination type provides a quick and secure cable connection, while the keying and locking features ensure accurate mating and strain relief, enhancing durability and reducing maintenance.

Right angle orientation for optimized PCB or cable routing. 3 contacts in one row, 2.5 mm pitch spacing. Phosphor bronze contacts plated with tin for longevity. Housing material offers protection against mechanical damage.

Keying and locking features improve connection reliability. Wide operating temperature range from -40°C to 110°C. Voltage rating of 63V with current capacity of 2A. Ideal for multiple industrial and electronic applications.

This product is manufactured in Italy under strict quality controls, ensuring consistent performance and compliance with industrial standards. It suits diverse sectors including industrial electronics, telecommunications, automotive, consumer electronics, and other specialized technical fields.
