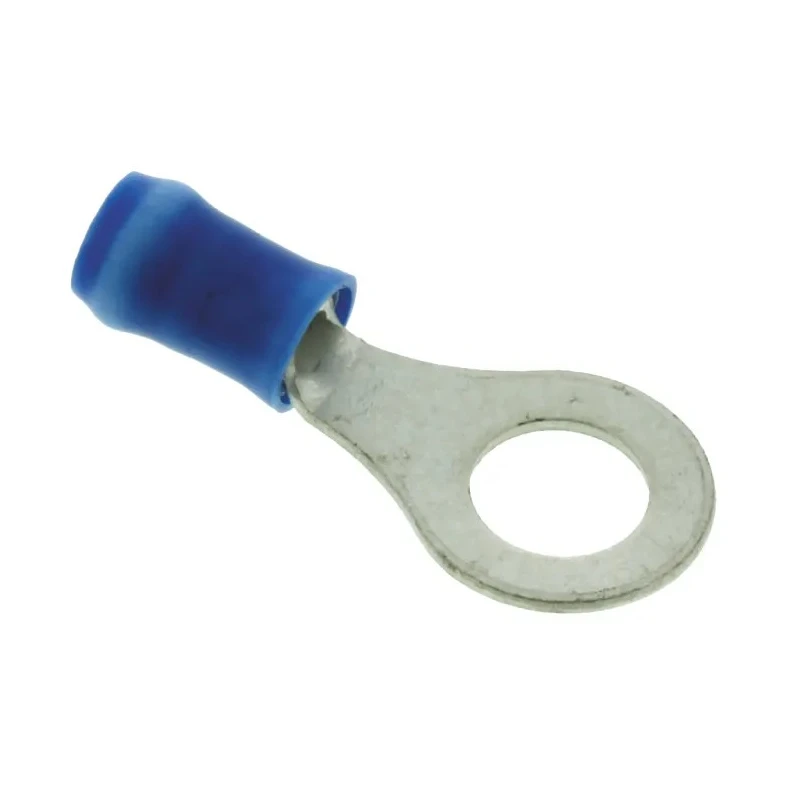

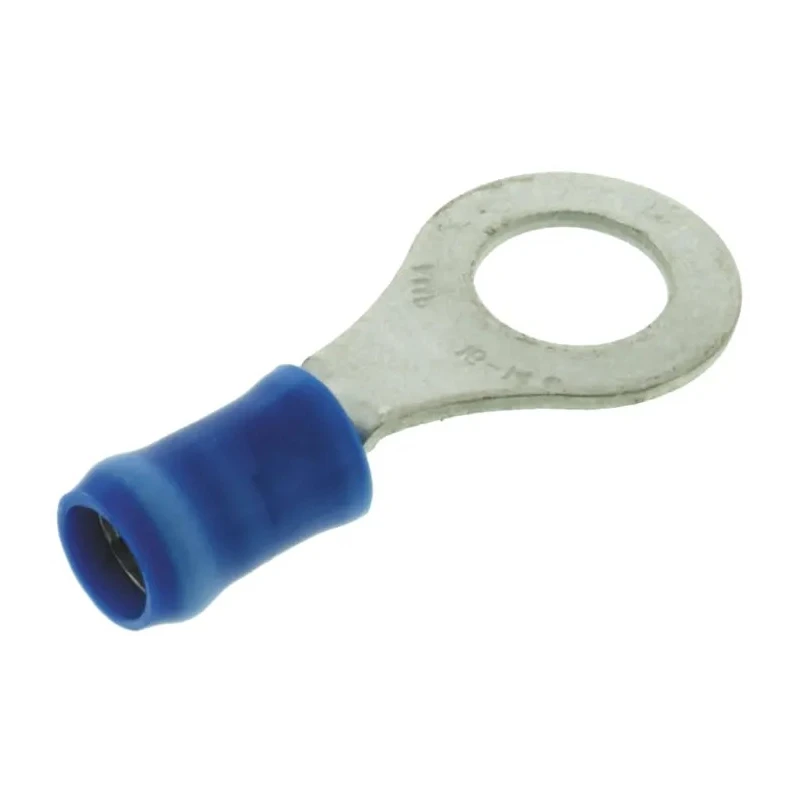

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size, 16 AWG to 14 AWG Wire Size, Polyvinyl Chloride Insulation 31906

TE Connectivity 31906 PIDG Insulated Ring Terminal is a precision-formed wire crimp terminal engineered for 16 AWG to 14 AWG wire sizes and featuring an M6 stud size. It is insulated with blue polyvinyl chloride and manufactured with a high conductivity copper body and a copper sleeve for enhanced wire insulation and durability. The crimp barrel includes serrations for superior contact and tensile strength post-crimping. The funnelled entry design facilitates quick and easy wire insertion while preventing strand damage.

This terminal is crafted to meet rigorous industrial demands, ideal for use in electronics, control panels, transportation, motors, aerospace, and appliance wiring. The colour-coded sleeve supports easy wire size identification and seamless tooling compatibility. It operates efficiently under temperatures up to 105°C, ensuring stability and long service life in tough circuit environments.

The manufacturing design adheres to reliable crimping standards producing consistent results, suited for both manual and high-speed automated assembly processes. Its robust construction and materials provide uniform reliability across various installations. This product enhances connection security and wiring integrity in complex electronic and electrical assemblies.

TE Connectivity's PIDG series ring terminals are recognized for their durability and compliance, supporting applications in industrial, automotive, commercial, and aerospace sectors. Applications include instrumentation, lighting, power distribution, panel boxes, and motors, among others, offering versatile connectivity solutions.

Constructed with a high conductivity copper body ensuring optimum electrical performance. Features a copper sleeve inside the barrel to improve wire insulation support and prevent fraying. Equipped with serrations in the barrel for maximum contact and tensile strength after crimping.

Colour coded blue nylon sleeve enables easy wire size and tooling identification. Funnelled wire entry design prevents turned back wire strands, allowing fast wire insertion. Designed for uniform and reliable crimps using specialized tool dies, suitable for high-speed production.

Operates reliably up to a maximum temperature of 105°C for demanding circuit environments. Ideal for applications including instruments, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliances.
