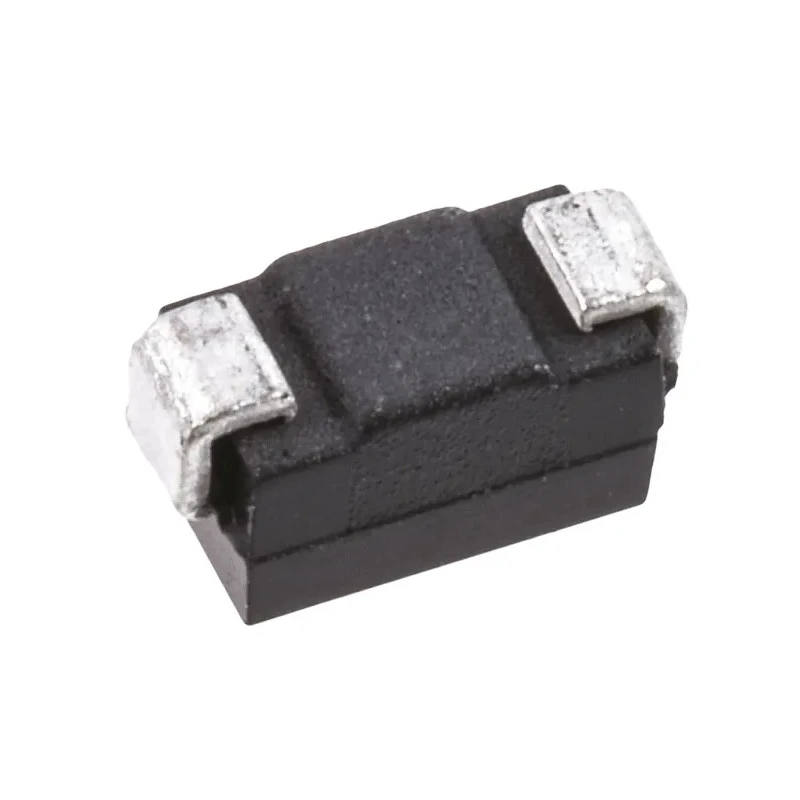

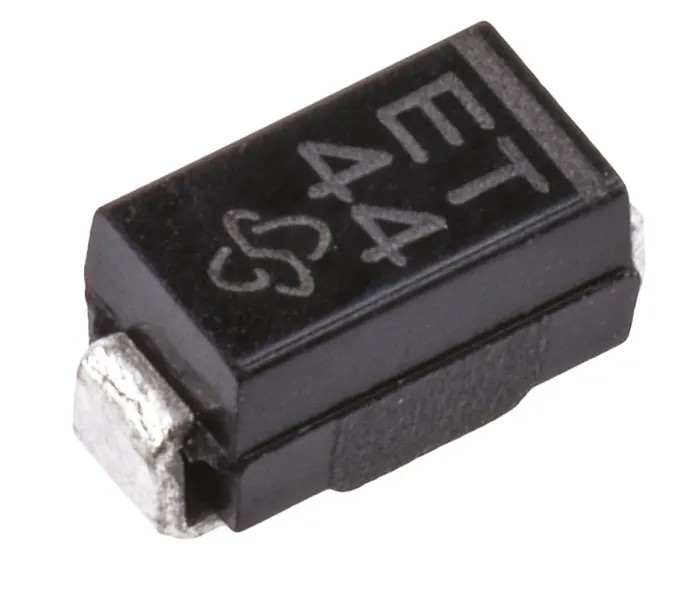

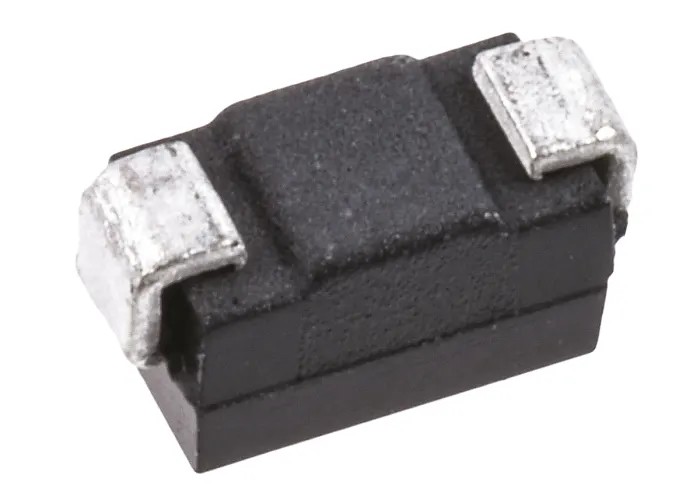

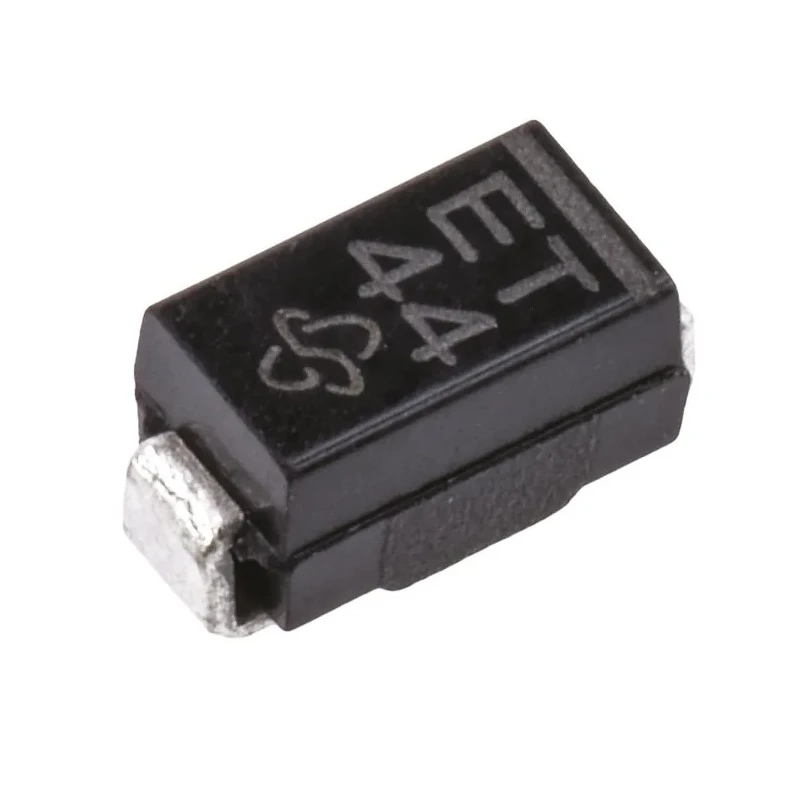

Vishay 1300 V 1 A General Purpose Ultrafast Recovery Diode 2-Pin DO-214BA EGF1T-E3/67A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | EGF1T-E3/67A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | EGF1T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1300V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 3V |
| Peak Reverse Recovery Time trr | 75ns |
Key Features
- This diode features ultrafast reverse recovery times as low as 75 nanoseconds.
- It is designed for high voltage applications up to 1300 volts.
- The package type is DO-214BA with a compact 2-pin surface mount configuration.
- Maximum forward surge current is rated at 20 A for robustness.
- The diode operates reliably in temperatures ranging from -55°C to 150°C.
- Forward voltage rating is a maximum of 3 volts ensuring efficient performance.
- Peak reverse current is limited to 5 microamperes minimizing leakage.
- Complies with automotive standard AEC-Q101 making it suitable for automotive applications.
Product Description
Vishay EGF1T-E3/67A is a general purpose ultrafast recovery diode designed for high frequency and high voltage applications. It supports a maximum repetitive peak reverse voltage (Vrrm) of 1300 volts and a continuous forward current of 1 ampere, making it suitable for demanding electronic circuits including switched mode power supplies (SMPS), inverters, and freewheeling diode applications.
The diode is housed in a compact DO-214BA surface mount package with a 2-pin configuration facilitating easy and efficient PCB mounting. The device features a maximum forward voltage drop of 3 volts, ensuring minimal power loss and heat generation during operation.
Designed to endure harsh environments, the diode functions reliably between -55°C and +150°C and offers a peak non-repetitive forward surge current (Ifsm) of 20 amperes, providing tolerance to transient overloads. A peak reverse recovery time of 75 nanoseconds supports efficient switching in high-speed circuits, enhancing overall system performance.
Its low peak reverse current of 5 microamperes ensures low leakage, optimizing electrical efficiency. Qualified to the AEC-Q101 automotive standard, this diode is suitable for automotive and industrial electronics requiring high reliability.
Ultrafast recovery time as low as 75 nanoseconds improves switching efficiency. High voltage rating of 1300 volts supports demanding applications. Compact 2-pin DO-214BA surface mount package for space saving. Rated continuous forward current of 1 ampere ideal for general purpose use.
Wide operating temperature range from -55°C to 150°C allows usage in harsh conditions. Low forward voltage ensures energy efficient operation. Peak surge current capability of 20 amperes for transient protection. Compliant with automotive AEC-Q101 standard for enhanced reliability.
This Vishay diode is widely utilized in industrial, automotive, consumer electronics, and power supply designs. Its combination of high voltage capability, fast recovery, and automotive qualification makes it a versatile component in modern electronics manufacturing.
Explore the broader range of semiconductor devices and Schottky Diodes available at EnvMart to enhance your project or production line efficiency with trusted industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode supports a maximum repetitive peak reverse voltage (Vrrm) of 1300 volts, making it suitable for high voltage applications.
This model has a continuous forward current rating of 1 ampere, which is ideal for general purpose use in electronic circuits.
The peak reverse recovery time is as low as 75 nanoseconds, which supports efficient switching in high-speed circuits.
The dimensions of the DO-214BA package are 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
The maximum forward voltage drop for this model is rated at 3 volts, ensuring efficient performance during operation.
The diode is rated for a peak non-repetitive forward surge current (Ifsm) of 20 amperes, providing tolerance to transient overloads.
It operates reliably in temperatures ranging from -55°C to 150°C, allowing usage in harsh environments.
Yes, it complies with the automotive standard AEC-Q101, making it suitable for automotive applications.
The peak reverse current is limited to 5 microamperes, which minimizes leakage and optimizes electrical efficiency.
This diode features a single diode configuration, which is typical for general purpose applications.
It is suitable for high frequency and high voltage applications, including switched mode power supplies (SMPS), inverters, and freewheeling diode applications.
The rectifier type of this model is classified as a general purpose diode, suitable for various electronic circuits.
