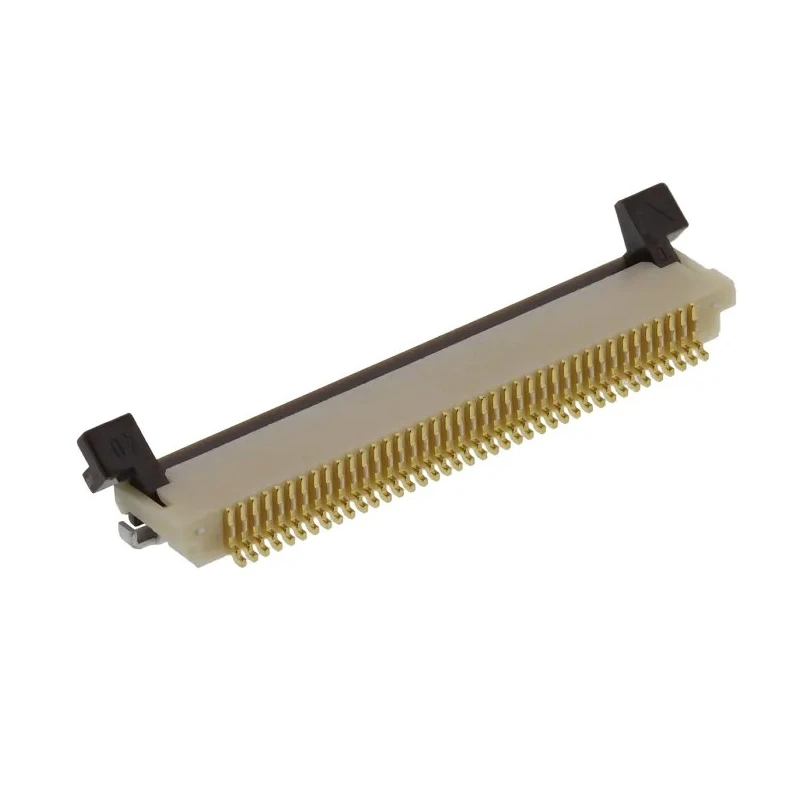

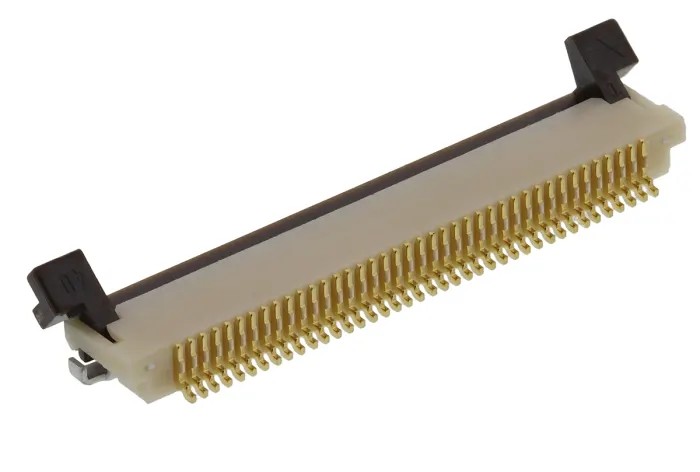

Hirose FPC Connector 0.5 mm Pitch 40 Way Right Angle Female Surface Mount Solder Termination FH12
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Features a one-touch rotating zero insertion force (ZIF) actuator for easy operation.
- Designed with phosphor bronze contacts plated in gold for superior conductivity.
- Supports a maximum current of 500mA and voltage of 50V AC.
- Constructed with a nylon housing for durability and reliability.
- Operating temperature range from -40°C to 70°C for versatile environments.
- Right angle orientation with top contact position optimizes PCB space usage.
- Includes locking mechanism ensuring secure and stable connections.
- Suitable for high-density mounting in mobile phones, GPS devices, notebooks, LCDs, and other compact electronics.
Product Description
Hirose FH12A-40S-0.5SH(55) is a high precision FPC connector from the FH12 series with a 0.5 mm pitch, designed for use in demanding electronic assemblies. This 40 way right angle female connector features a one-touch rotating zero insertion force (ZIF) actuator, providing effortless cable insertion while maintaining a secure, reliable connection confirmed by a tactile click.
The connector's phosphor bronze contacts are gold plated to ensure excellent conductivity and resistance to corrosion, housed in durable nylon material for mechanical stability and longevity. Operating efficiently within a temperature range from -40°C to 70°C, it is suitable for various industrial, commercial, and consumer electronics applications.
Its surface mount technology (SMT) termination with solder connection type allows for robust attachment to PCB surfaces, optimizing space with its compact right angle design and top contact configuration. The locking mechanism adds an extra level of security to resist vibrations and mechanical stresses.
This connector is ideal for applications such as mobile phones, GPS systems, notebooks, data terminals, LCD TVs, digital cameras, and other handheld devices requiring high-density PCB mounting and reliable connector performance.
One-touch rotating ZIF actuator enables easy and secure cable connection. Phosphor bronze contacts with gold plating provide reliable electrical performance. Supports current up to 500mA and voltage rating of 50V AC suitable for low power applications.
Durable nylon housing ensures mechanical strength and environmental protection. Operating temperature from -40°C to 70°C supports versatility across environments. Right angle orientation with top contact maximizes PCB real estate.
Locking mechanism ensures stable and vibration-resistant connection. Widely used in mobile devices, notebooks, LCDs, and other compact electronics. Explore more FPC Connectors and electronic components in the EnvMart catalog for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 500mA and a voltage rating of 50V AC.
The pitch size of this connector is 0.5 mm.
It features a solder termination type for robust attachment to PCB surfaces.
The housing is made of nylon, and the contacts are constructed from phosphor bronze with gold plating for improved conductivity.
It operates efficiently within a temperature range from -40°C to 70°C.
The one-touch rotating zero insertion force (ZIF) actuator allows for easy cable insertion while ensuring a secure connection with a tactile click.
This connector has a right angle orientation, optimizing PCB space usage.
This model features 40 contacts arranged in a single row.
Yes, it includes a locking mechanism that ensures secure and stable connections, resisting vibrations and mechanical stresses.
It is suitable for high-density mounting in mobile phones, GPS devices, notebooks, LCDs, and other compact electronics.
The connector gender is female, designed for compatibility with female contacts.
The country of origin for this connector is Japan.
