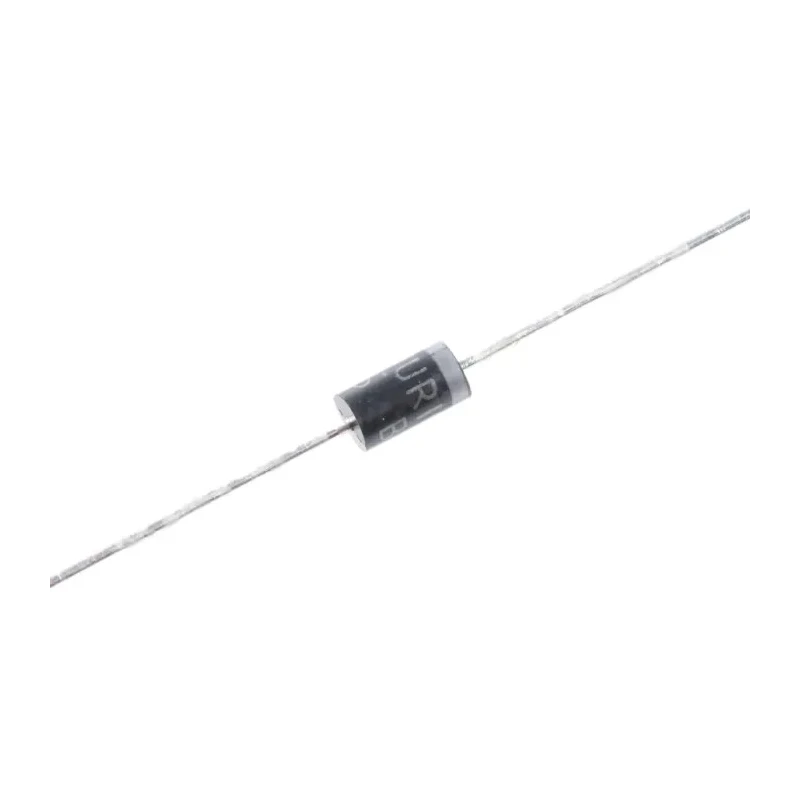

Taiwan Semiconductor 600 V 1 A Through Hole DO-15 Switching Diode MUR160
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Taiwan Semiconductor |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | MUR160 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Through Hole mount with DO-15 package design for easy PCB integration.
- Maximum forward voltage of 1.25 V supports low power loss in circuits.
- Peak reverse repetitive voltage of 600 V ensures high voltage tolerance.
- Peak non-repetitive forward surge current rated at 35 A for transient conditions.
- Operating temperature range from -65°C to 175°C for robust performance.
- Fast peak reverse recovery time of 50 ns enhances switching efficiency.
- Pin count of 2 and single diode configuration simplifies circuit design.
- Complies with automotive standard AEC-Q101 for quality assurance.
Product Description
Taiwan Semiconductor MUR160 is a high-performance switching diode designed for power electronics requiring reliable rectification at 600 V peak reverse voltage and 1 A forward current. It features a durable Through Hole mount and DO-15 package, facilitating straightforward assembly into electronic devices and power supplies.
The diode’s maximum forward voltage of 1.25 V minimizes conduction losses, enhancing circuit efficiency. It tolerates surges up to 35 A peak non-repetitive forward current, ensuring resilience under transient load conditions. The device operates reliably in extreme temperature ranges from -65°C up to 175°C, suitable for demanding industrial and automotive environments.
With a fast peak reverse recovery time of 50 ns, the MUR160 diode supports high-speed switching applications common in modern power electronics, improving overall system performance. Having 2 pins and a single diode configuration, this component integrates easily within circuits requiring efficient diode switching functionalities.
This diode meets the AEC-Q101 automotive standard, highlighting its suitability for automotive electronics and other rigorous applications where safety and durability are essential.
Through Hole mount with DO-15 package design for reliable installation. 600 V peak reverse repetitive voltage for high voltage applications. 1 A maximum continuous forward current for steady operational load. Fast peak reverse recovery time ensures reduced switching losses.
Wide temperature range guarantees operation in harsh environments. 35 A surge current capacity supports transient peak loads. Single diode configuration simplifies electronic design. Automotive standard AEC-Q101 certified for quality and reliability.
This product is ideal for use in industrial power supplies, automotive electronics, and semiconductor-based switching circuits. Browse EnvMart for additional semiconductor and diode products to suit your application needs.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for the MUR160 diode is 1 A.
The MUR160 diode has a peak reverse repetitive voltage rating of 600 V.
This model operates reliably within a temperature range from -65°C to 175°C.
The MUR160 diode comes in a DO-15 package type, designed for Through Hole mounting.
The peak non-repetitive forward surge current for the MUR160 is rated at 35 A.
The peak reverse recovery time for this model is 50 ns, enhancing its switching efficiency.
The maximum forward voltage drop for the MUR160 is 1.25 V, which helps minimize conduction losses.
This diode features a pin count of 2, simplifying its integration into circuits.
Yes, the MUR160 complies with the AEC-Q101 automotive standard for quality assurance.
The MUR160 diode has a height and diameter of 3.6 mm.
The MUR160 is classified as a switching rectifier, suitable for power electronics applications.
The MUR160 diode is manufactured in India.
