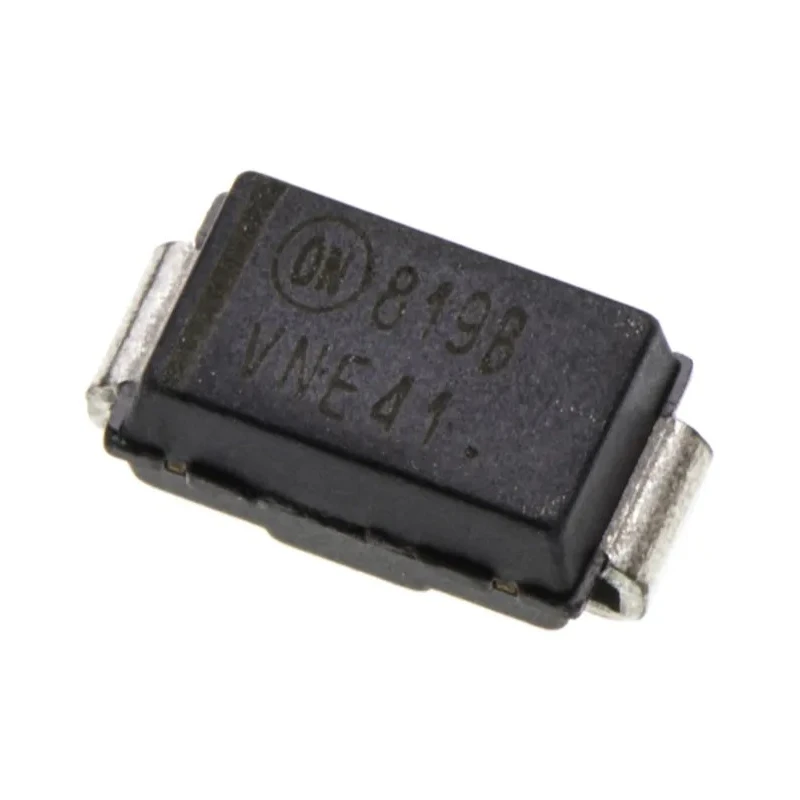

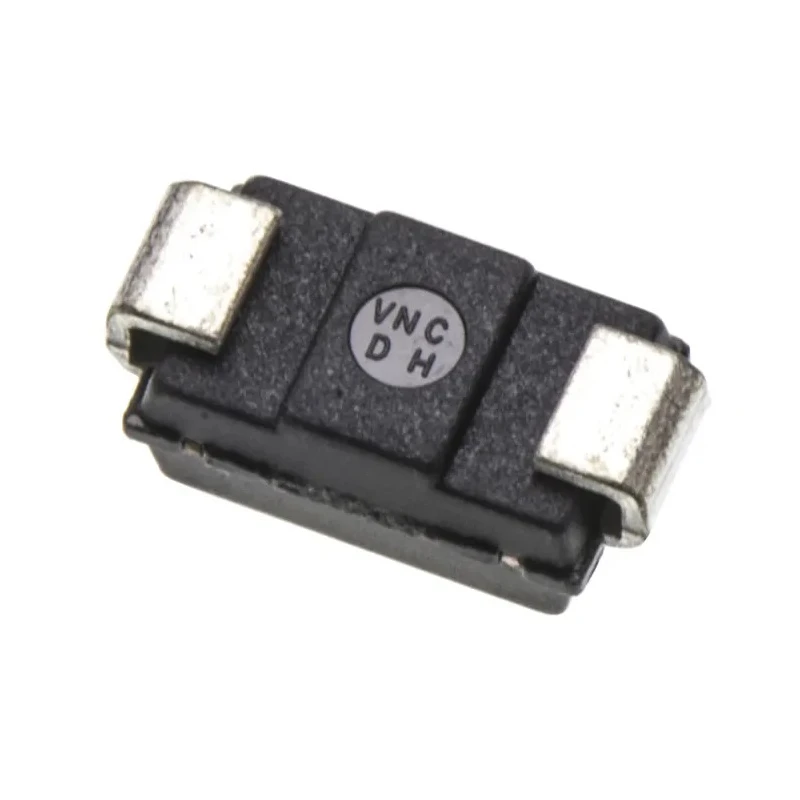

onsemi 5.6 V 500 mW Surface Mount Zener Diode Single 2-Pin DO-214AC 1SMA5919BT3G

onsemi 1SMA5919BT3G Zener Diode is a high-performance surface mount device with a nominal Zener voltage of 5.6 V and maximum power dissipation of 500 mW. Constructed in a compact DO-214AC 2-pin package, this diode is engineered for voltage regulation in electronic circuits, industrial, automotive, and power supply applications.

This single diode configuration provides dependable voltage clamping with a ±5% tolerance. It operates efficiently over a wide temperature range from -65°C to 150°C, ensuring stable operation in harsh environments. The device exhibits a low maximum reverse leakage current of 2.5μA and a maximum Zener impedance of 2 ohms at test current of 66.9 mA, optimizing circuit performance by minimizing losses and voltage fluctuations.

The 1SMA5919BT3G adheres to RoHS environmental standards and the automotive AEC-Q101 qualification, signifying its suitability for stringent automotive and industrial requirements. The surface mount package supports automated assembly on printed circuit boards, increasing production efficiency for manufacturing high-quality electronics.

This diode features a single diode configuration designed for voltage regulation applications. It supports a maximum power dissipation of 500 milliwatts ensuring efficient energy handling. The device is packaged in a compact DO-214AC 2-pin surface mount package for easy PCB integration.

It operates within a temperature range from -65°C to 150°C, suitable for various industrial environments. The Zener voltage tolerance is ±5%, providing reliable voltage clamping performance. Maximum reverse leakage current is only 2.5 microamperes, minimizing leakage losses.

The maximum Zener impedance at test current is 2 ohms, allowing for stable voltage regulation. Designed and tested to automotive standard AEC-Q101 ensuring high reliability in automotive systems.

This product is ideal for use in industrial electronics, automotive circuits, power supply regulation, and any application requiring precise voltage regulation capabilities. It ensures longevity and reliability in demanding environments, making it a valuable component for engineers and manufacturers.
