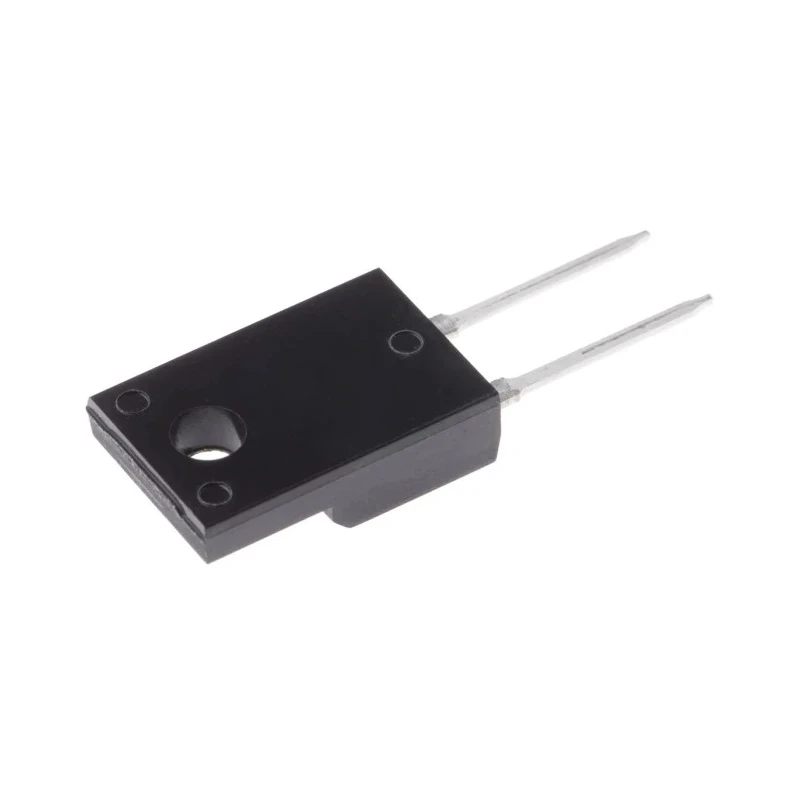

STMicroelectronics 200 V 8 A Switching Diode 2-Pin Through Hole TO-220 STTH802FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH802FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH802 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 6μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.05V |
| Peak Reverse Recovery Time trr | 30ns |
Key Features
- Designed for through hole mounting with a 2-pin configuration.
- Maximum forward voltage drop is 1.05 V ensuring efficient switching performance.
- Peak non-repetitive forward surge current of 100 A supports transient conditions.
- Compact dimensions of 10.4 mm length and 4.6 mm width suitable for various circuit designs.
- Operating temperature range from -65°C to 175°C accommodates diverse environments.
- Compatible with RoHS conformance standards for environmental safety.
- Peak reverse recovery time of 30 ns enables fast switching applications.
- Single diode configuration optimized for power rectification and switching.
Product Description
STMicroelectronics STTH802FP is a high-performance switching diode rated for 200 V peak reverse voltage and 8 A continuous forward current, enclosed in a TO-220 package suitable for through hole mounting. It features a compact footprint measuring 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height, making it ideal for space-constrained power electronics circuits.
This diode boasts a low forward voltage drop of 1.05 V, minimizing power losses during operation. Capable of handling a peak non-repetitive forward surge current of 100 A, it supports transient overload conditions without damage. Its rapid peak reverse recovery time of 30 ns ensures efficient operation in fast switching applications, reducing electromagnetic interference and power dissipation.
Designed to operate reliably across a wide temperature range from -65°C to 175°C, the STTH802FP is suitable for demanding industrial, automotive, and consumer electronics environments. The diode configuration is single, providing a dedicated switching function with a 2-pin layout for straightforward circuit integration.
The product complies with RoHS environmental standards, confirming it is free from hazardous substances. Typical use cases include power rectification, switching regulators, power supplies, and other semiconductor-based electronic designs requiring robust diode performance.
Through hole mount type for easy installation. Compact TO-220 package ensures efficient heat dissipation. High peak reverse voltage and continuous forward current ratings. Low forward voltage drop for energy-efficient operation.
Fast switching capability with minimal recovery time. Wide operational temperature range suits various industrial applications. RoHS compliant for environmental safety. Single diode configuration in 2-pin design.
This STMicroelectronics switching diode provides reliable performance in power and electronic circuits requiring efficient rectification and switching capabilities. Suitable for industrial, commercial, and automotive semiconductor applications, it is an essential component for high-current, fast-recovery diode needs. Explore more semiconductor products at EnvMart for diverse electronics solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STTH802FP has a peak reverse voltage rating of 200 V.
This diode supports a maximum continuous forward current of 8 A.
The maximum forward voltage drop for this model is 1.05 V, ensuring efficient operation.
The STTH802FP is enclosed in a TO-220 package, designed for through hole mounting.
This model operates reliably across a temperature range from -65°C to 175°C.
The diode can handle a peak non-repetitive forward surge current of 100 A.
The STTH802FP features a peak reverse recovery time of 30 ns, suitable for fast switching applications.
This diode measures 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height.
Yes, the STTH802FP complies with RoHS standards, confirming it is free from hazardous substances.
The STTH802FP features a single diode configuration with a 2-pin layout for easy integration into circuits.
This diode is typically used in power rectification, switching regulators, and power supplies.
The peak reverse current for the STTH802FP is rated at 6 μA.
