| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT43FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT43 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 5ns |

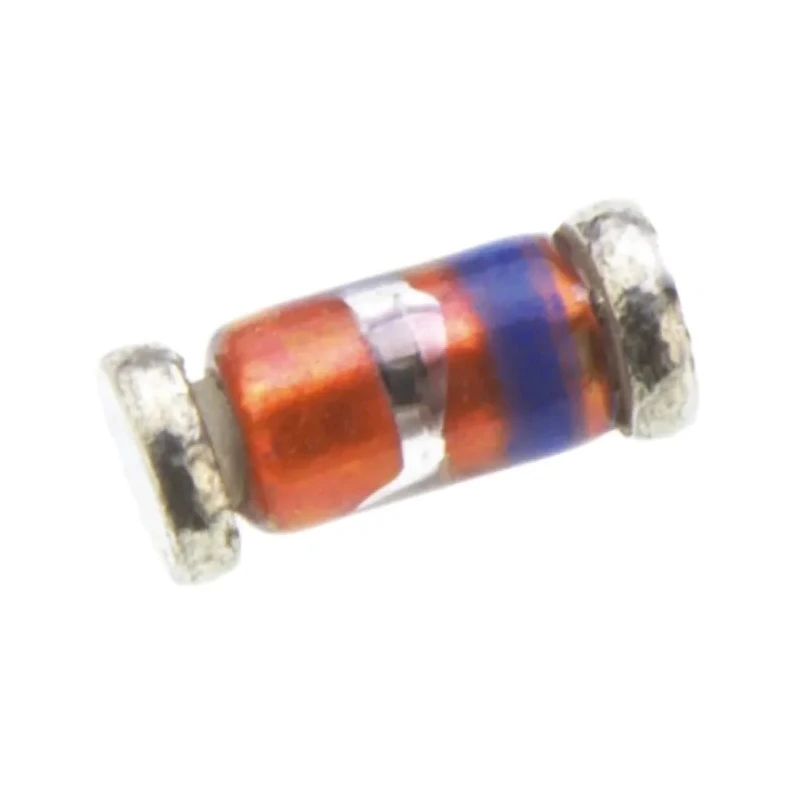

STMicroelectronics TMMBAT43FILM is a single Schottky barrier diode housed in a MiniMELF surface mount package, providing high power efficiency and density for electronic circuit designs. The diode supports a maximum continuous forward current of 200mA and a peak repetitive reverse voltage of 30V, making it suitable for power management and rectification applications.
Its fast peak reverse recovery time of 5ns and a low forward voltage drop of 1V reduce switching losses and improve overall circuit performance. The compact physical dimensions (3.4mm length, 1.62mm width and height, and 1.5mm diameter) enable dense PCB layouts while maintaining thermal stability under operational temperatures ranging from -65°C to 125°C.
The diode's capability to handle a peak non-repetitive forward surge current of 4A allows it to reliably manage transient load conditions. This part complies with RoHS environmental standards, reflecting its suitability for modern electronic manufacturing requirements.
This component finds applications in industrial electronics, power supply units, communication devices, and automotive electronic systems where efficient low-voltage rectification and fast switching are necessary.
Operates with a maximum continuous forward current of 200mA. Supports peak repetitive reverse voltage of 30V. Compact MiniMELF package with precise dimensions for dense PCB layouts. Fast switching with 5ns peak reverse recovery time.
Wide operating temperature range ensures reliability in diverse environments. Low forward voltage drop enhances efficiency. High surge current tolerance for transient protection. RoHS compliant for environmentally safe manufacturing.
2-pin, single diode configuration for easy integration. Explore more semiconductor and diode options in the Electronics & Electricals category at EnvMart for your industrial and electronic design needs.
