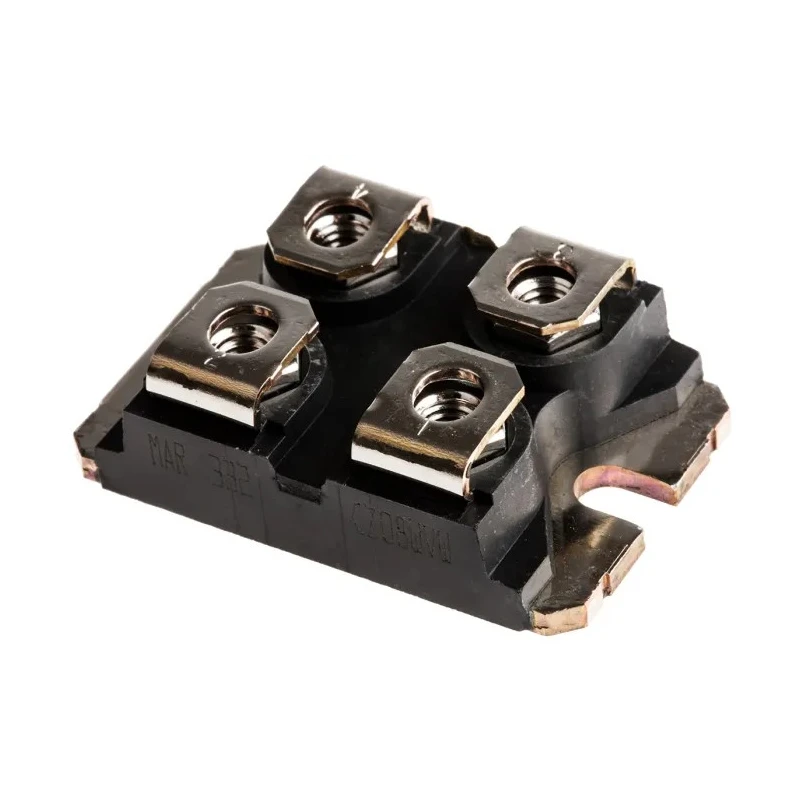

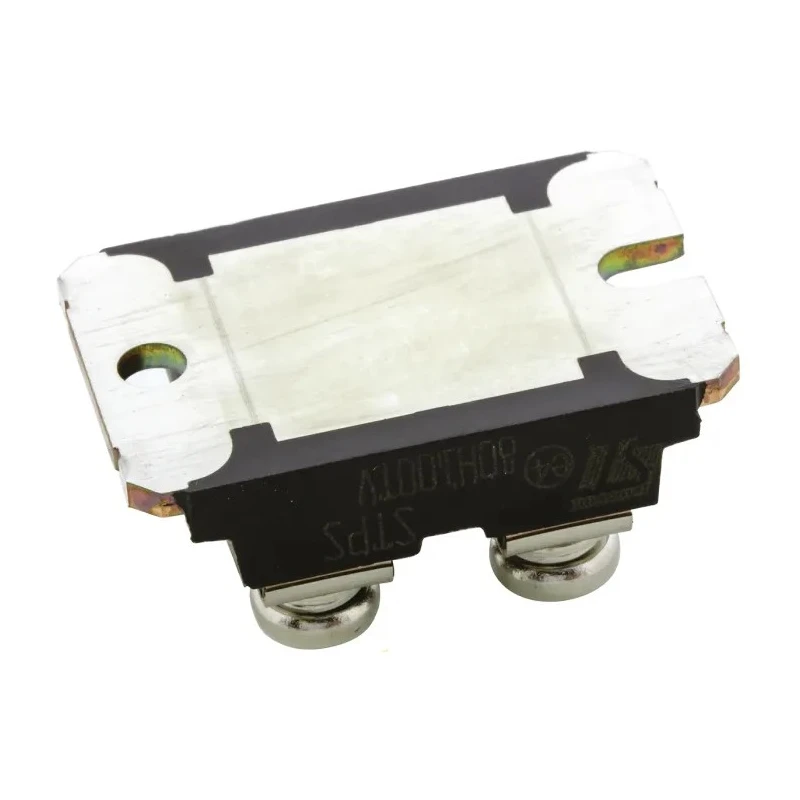

STMicroelectronics 100 V 40 A Schottky Diode ISOTOP Package 4-Pin STPS80H100TV

STMicroelectronics STPS80H100TV Schottky Diode 100 V 40 A ISOTOP 4-Pin package is engineered for efficient high frequency switch mode power supply applications. This device delivers a maximum continuous forward current of 40 amperes with a low forward voltage of 650 millivolts, enabling high efficiency and reduced power loss.

Rated for operation from -55°C to 150°C, the diode ensures reliability in demanding temperature environments. Its isolated diode configuration and panel mount compatibility make it ideal for versatile industrial electronics setups. The 100 V peak reverse repetitive voltage rating offers robust protection against voltage spikes and transient events.

The insulated ISOTOP package provides a high insulation voltage of 2500 VRMS along with a minimal package capacitance of 45 pF, enhancing performance in fast switching conditions. With a peak non-repetitive forward surge current of 700 A, it safely handles sudden transient surges encountered during power cycling or faults.

Low leakage current is another key characteristic, with peak reverse current limited to 20 microamperes, minimizing standby losses. The compact physical dimensions - 38.2 mm length, 25.5 mm width, and 9.1 mm height - allow easy integration into various assemblies.

This Schottky diode is suitable for secondary rectification applications in industrial power supplies, HVAC systems, manufacturing machinery, and laboratory electronic equipment. Its robust electrical and mechanical properties ensure reliable and efficient performance in a wide range of commercial and industrial environments.

Supports maximum continuous forward current of 40 A with low forward voltage drop of 650 mV. Operates reliably at temperatures from -55°C up to 150°C. Designed with isolated diode configuration suitable for panel mounting.

Peak reverse repetitive voltage rating of 100 V ensures robust blocking capability. Insulated ISOTOP package offers 2500 VRMS insulation and low capacitance of 45 pF. Peak non-repetitive forward surge current rating of 700 A for transient conditions.

Features low leakage current with peak reverse current of only 20 μA. Compact dimensions: length 38.2 mm, width 25.5 mm, height 9.1 mm. Ideal for secondary rectification in power supplies and industrial electronic applications.
