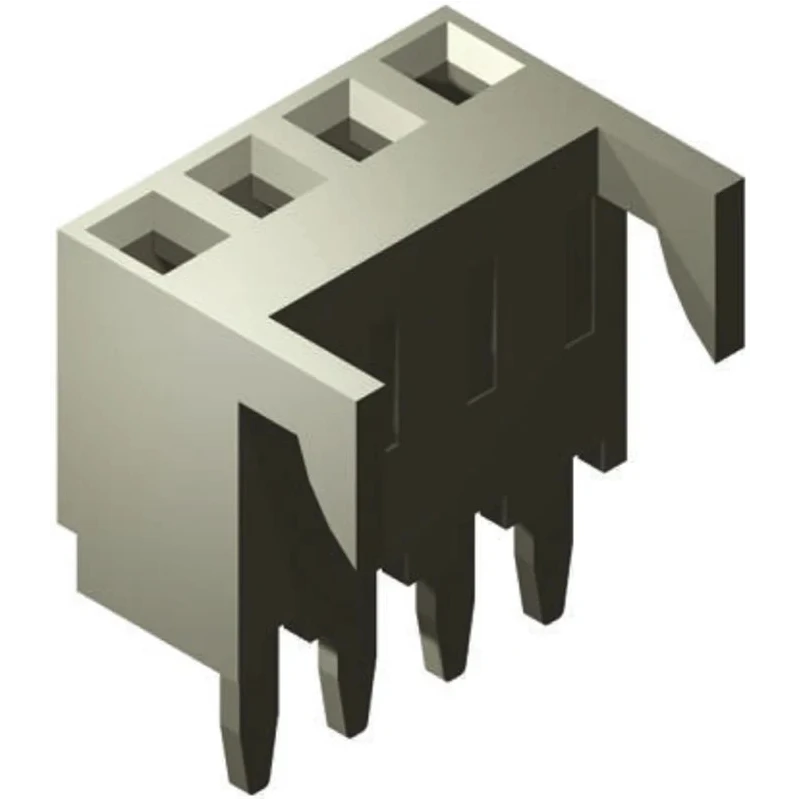

Molex KK 254 Series Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch Solder 38-00-1424
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Features 4 female contacts arranged in a single row for reliable board-to-board signal connections.
- Constructed with nylon housing for durability and insulation.
- Rated for 2.5 A current and 250 V voltage applications.
- Operating temperature range from -40°C to 105°C suitable for varied environments.
- Contact material is bronze with tin plating to enhance conductivity and corrosion resistance.
- Mount type is through hole with a straight orientation for easy PCB integration.
- Connector system supports board-to-board signals with precise 2.54 mm pitch spacing.
- Manufactured in Mexico ensuring quality standards compliance.
Product Description
Molex 38-00-1424 KK 254 Series Straight Through Hole PCB Socket is engineered for high reliability in electronic applications requiring board-to-board connections. This PCB socket features a 4-contact configuration in a single row, spaced at 2.54 mm pitch, facilitating effective signal transmission in compact electronic assemblies.
The socket incorporates a robust nylon housing providing mechanical strength and electrical insulation. Its through-hole mount type and straight orientation allow for secure solder termination on printed circuit boards, ensuring stable and durable electrical contact.
Designed to support up to 2.5 A current and 250 V voltage, this connector is suitable for signal-related uses in various industrial, commercial, and electronic manufacturing environments. It operates efficiently within a temperature range of -40°C to 105°C, thus fitting diverse operating conditions.
The contact components made of bronze and plated with tin enhance corrosion resistance and ensure excellent electrical conductivity. This product is made in Mexico, reflecting adherence to quality manufacturing practices.
This KK 254 Series socket from Molex is ideal for integration in electronic equipment involving board-to-board connections, signal transmission circuits, and compact PCB designs. It is supplied in packaging ready for insertion into machinery to improve production efficiency.
Features 4 female contacts arranged in a single row for reliable board-to-board signal connections. Constructed with nylon housing for durability and insulation. Rated for 2.5 A current and 250 V voltage applications. Operating temperature range from -40°C to 105°C suitable for varied environments.
Contact material is bronze with tin plating to enhance conductivity and corrosion resistance. Mount type is through hole with a straight orientation for easy PCB integration. Connector system supports board-to-board signals with precise 2.54 mm pitch spacing.
Manufactured in Mexico ensuring quality standards compliance. No specific standards or approvals indicated for this model. Explore a broad range of PCB Socket options in the Electronics & Electricals category on EnvMart for applications in industrial electronics, manufacturing, and more.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a maximum current of 2.5 A and a voltage of 250 V, making it suitable for various signal-related applications.
It operates efficiently within a temperature range of -40°C to 105°C, accommodating diverse environmental conditions.
The socket features 4 female contacts arranged in a single row, designed for reliable board-to-board signal connections.
The housing is made of nylon for insulation and durability, while the contacts are made of bronze and plated with tin to enhance conductivity and corrosion resistance.
The socket has a pitch size of 2.54 mm, which is standard for many PCB applications.
This model uses solder termination, allowing for secure connections on printed circuit boards.
It features a through hole mount type with a straight orientation, facilitating easy integration into PCBs.
This product is manufactured in Mexico, ensuring adherence to quality standards in production.
It is designed for use in electronic equipment that requires board-to-board connections and signal transmission circuits.
The tin plating on the bronze contacts improves conductivity and enhances corrosion resistance, contributing to reliable electrical performance.
This socket has a single row configuration, which is typical for compact PCB designs.
It supports a board-to-board connector system specifically designed for signal transmission, making it versatile for various electronic applications.
