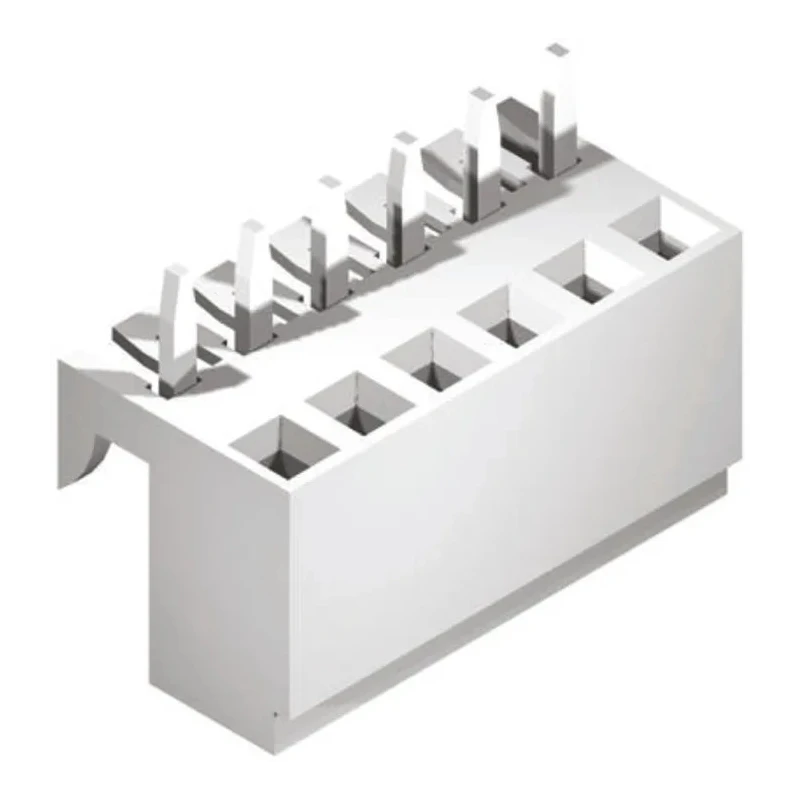

Molex KK 254 Series Straight Through Hole PCB Socket 8-Contact 1 Row 2.54 mm Pitch Solder 22-17-2087
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- It features a nylon housing for durable and reliable performance.
- Designed for board-to-board, signal connector systems with female brass contacts plated in gold.
- Rated for 12A current and 250V voltage operation.
- Meets operating temperature ranges from -40°C to 105°C.
- Mounting type is through hole with a straight orientation for easy PCB assembly.
- Connector series KK 254 ensures compatibility with KK pin headers.
- Manufactured in Mexico ensuring quality standards.
Product Description
Molex 22-17-2087 KK 254 Series Straight Through Hole PCB Socket is designed for reliable and efficient electronic connections in industrial and commercial applications.
This 8-contact, single row socket features a 2.54 mm pitch, facilitating secure board-to-board signal connections with a solder termination type suitable for through-hole mounting.
The housing is made of durable nylon, providing excellent mechanical stability and electrical insulation to withstand demanding environments. Its brass female contacts are plated with gold to ensure low contact resistance and corrosion resistance, contributing to long-lasting performance.
With a current rating of 12A and a voltage rating of 250V, this socket series supports a wide range of electronic circuitry requirements.
The device operates reliably within a temperature range from -40°C to 105°C, making it ideal for diverse industrial, manufacturing, electronics assembly, and laboratory instrumentation uses.
Manufactured in Mexico, the Molex KK 254 Series sockets deliver consistent quality and compatibility with corresponding KK pin header connectors. Durable nylon housing for robust insulation and mechanical stability. Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
Designed for through-hole solder mounting providing secure electrical connections. High current and voltage ratings suitable for demanding applications. Wide operating temperature range for flexible environmental deployment.
Compatible with KK pin headers for board-to-board signaling. Manufactured to high-quality standards in Mexico.
This PCB Socket is well-suited for use in electronics manufacturing, industrial control systems, telecommunications equipment, and other electronic devices requiring reliable board-to-board connections.
Explore Molex’s range of KK 254 series components on EnvMart for quality electronic connectors that enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket has a current rating of 12A and a voltage rating of 250V, making it suitable for a variety of electronic applications.
The pitch of this socket is 2.54 mm, which facilitates secure connections in board-to-board applications.
The housing is made of nylon for mechanical stability and electrical insulation, while the contacts are made of brass and plated with gold for low contact resistance and corrosion resistance.
It operates reliably within a temperature range from -40°C to 105°C, suitable for diverse environments.
This socket features 8 contacts, designed for efficient signal connections.
The socket uses a solder termination type, which is suitable for through-hole mounting.
Yes, it is compatible with KK pin headers, ensuring reliable board-to-board signal connections.
The orientation of this socket is straight, which aids in easy PCB assembly.
This PCB socket is manufactured in Mexico, ensuring adherence to quality standards.
The mounting type for this socket is through hole, providing secure electrical connections on printed circuit boards.
This model is well-suited for electronics manufacturing, industrial control systems, telecommunications equipment, and other devices requiring reliable board-to-board connections.
The contact gender of this socket is female, designed for compatibility with corresponding male connectors.
