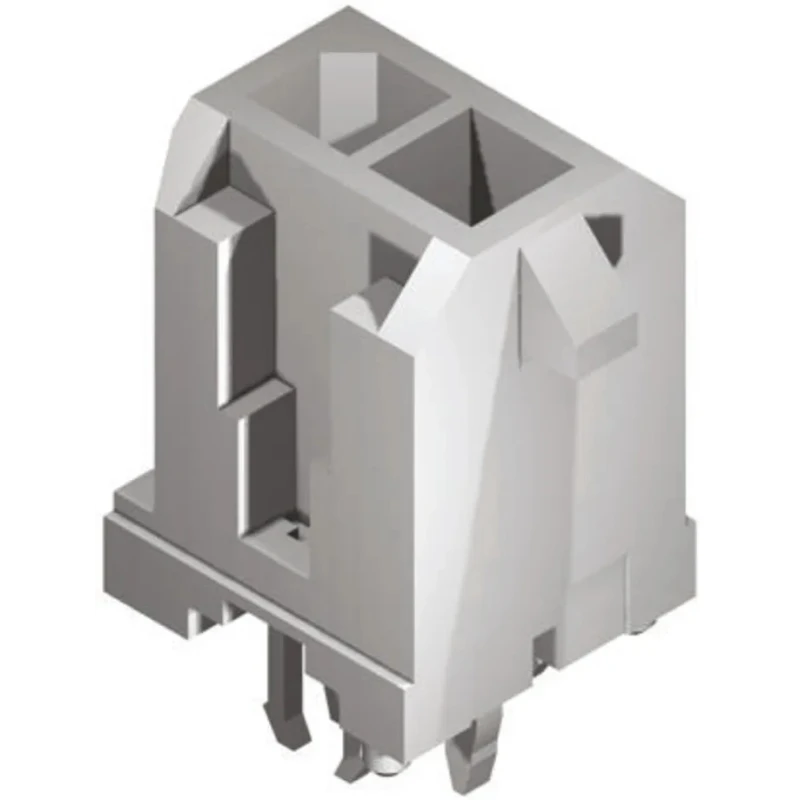

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header Shrouded, 2 Contacts, 3 mm Pitch, 2 Row 43045-0224

Molex 43045-0224 Micro-Fit 3.0 Series Straight Through Hole PCB Header is a shrouded, dual-row connector with 2 contacts spaced at 3 mm pitch. Designed for wire-to-board applications, it offers a compact footprint and robust electrical performance.

The connector features brass contacts with tin plating and a housing made from high-temperature UL 94V-0 certified liquid crystal polymer. This enables it to withstand up to 265°C during infrared reflow soldering processes, providing manufacturability advantages.

The positive latching ramp on the housing ensures a secure mating connection, minimizing the risk of accidental disconnection in industrial or consumer electronic applications. The dual beam terminals inside the housing are fully isolated to reduce arcing and enhance reliability.

With a current rating of 5A and voltage rating of 250V, this PCB header suits low to mid power environments, common in telecommunications, data communications equipment, consumer appliances, medical devices, and solar power systems.

The through hole mount is SMT compatible which reduces assembly complexity and cost. Integrated metal press-fit retention clips ensure the connector firmly holds to the PCB during operation.

Product origin is Mexico and it is classified as new. This Molex Micro-Fit 3.0 Series connector is ideal for industrial, commercial, and consumer electronic manufacturing requiring compact, reliable, and high-temperature capable PCB interconnect solutions.

Compact dual-row design with 3 mm pitch supports efficient PCB layouts. Shrouded housing ensures reliable mating and prevents accidental disconnection. Contacts made of brass with tin plating for reliable electrical conductivity.

Rated for 5A current and 250V voltage suitable for low to mid power applications. Mount type is through hole and compatible with SMT processes to reduce manufacturing costs. High temperature UL 94V-0 liquid crystal polymer housing withstands up to 265°C during soldering.

Positive latching mechanism secures connection integrity under mechanical stress. Operating temperature range from -40°C to 125°C for diverse environments. Explore more PCB Headers and connectors in the Molex range on EnvMart to meet diverse electronics manufacturing requirements.
