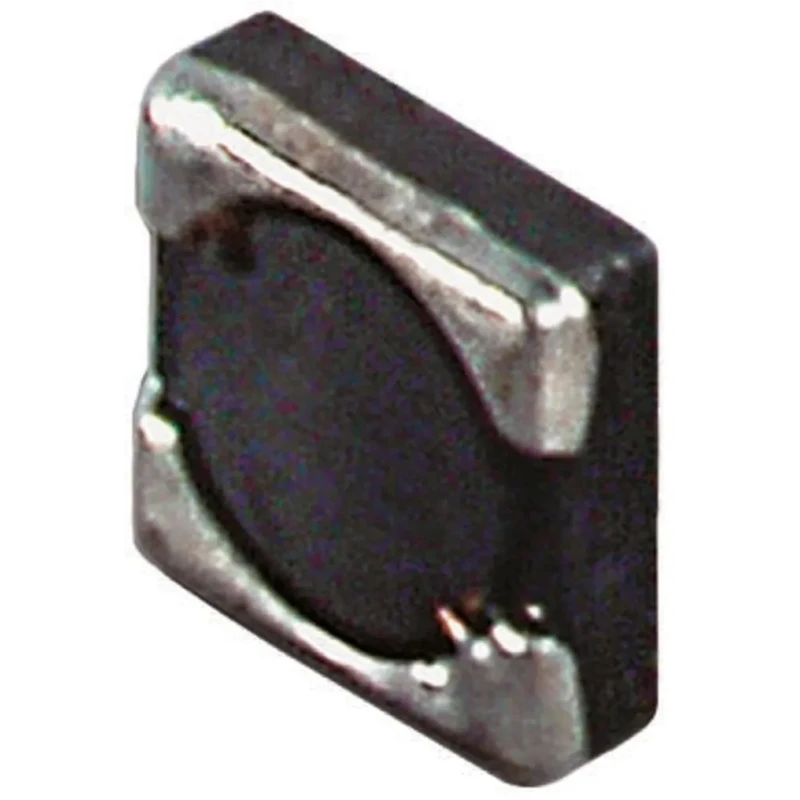

Wurth Elektronik WE-TPC 6823 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±30% 1.22A 744062220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 2.3mm |
| Length | 6.8mm |
| Depth | 6.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Package/Case | 6823 |
| Maximum DC Current | 1.22A |
| Maximum DC Resistance | 120mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/Approvals IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Compact 6.8 mm x 6.8 mm x 2.3 mm shielded wirewound inductor.
- Inductance of 22 μH with ±30% tolerance for precision performance.
- Maximum DC current rating of 1.22 A suitable for power circuits.
- Magnetic shielding reduces leakage fields and electromagnetic interference.
- Operating temperature range from -40°C to 125°C for industrial use.
- Meets automotive AEC-Q200 and RoHS compliance standards.
- Low DC resistance of 120 mΩ improves energy efficiency.
- Wirewound construction with ferrite core ensures durability.
Product Description
Wurth Elektronik 744062220 WE-TPC 6823 series shielded wirewound surface mount inductor is engineered with a ferrite core and wirewound construction offering 22 μH inductance and support for a maximum DC current of 1.22 A. This component meets stringent automotive AEC-Q200 standards and environmental directives including RoHS and REACH.

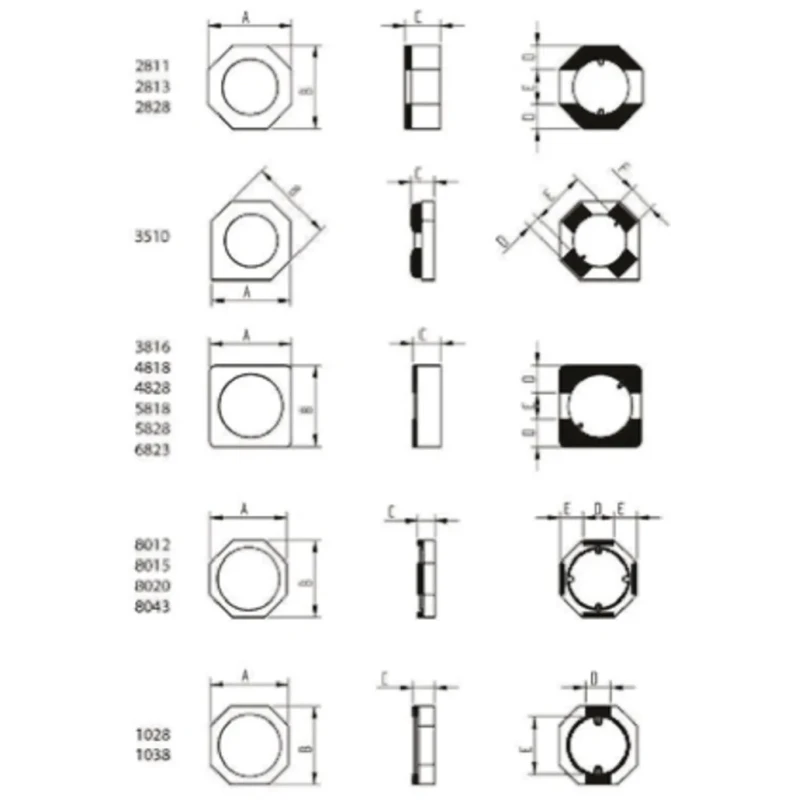

The device has a compact form factor with a length and depth of 6.8 mm and height of 2.3 mm, making it suitable for dense surface mount applications. Its magnetic shielding effectively reduces leakage fields and electromagnetic interference, ensuring signal integrity.
Its operating temperature range from -40°C to 125°C enables reliable performance in demanding industrial and automotive environments. The maximum DC resistance is low at 120 mΩ, optimizing efficiency in power electronics.
The inductor’s maximum self-resonant frequency of 20 MHz ensures suitability for high-frequency switching applications such as DC/DC converters, portable power supplies including PDAs and digital cameras, embedded PC boards, and mobile telemetric devices.
The inductor employs a ferrite core for high magnetic permeability and low losses. Robust wirewound construction provides durability and stable electrical characteristics. Tape & reel packaging facilitates automated surface mount assembly.
Compliance with IEC 60286-3:2013 and IPC/JEDEC J-STD-020E standards assures quality and reliability. Suitable for applications requiring precise inductance with ±30% tolerance.
This Wurth Elektronik WE-TPC series component is ideal for integration into automotive power modules, consumer electronics, and telecommunications equipment. EnvMart offers this high-quality Surface Mount Inductor to meet your industrial and engineering design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 22 μH with a tolerance of ±30%.
This model has a maximum DC current rating of 1.22 A, making it suitable for power circuits.
The dimensions of the WE-TPC 6823 inductor are 6.8 mm in length, 6.8 mm in depth, and 2.3 mm in height.
The operating temperature range for this inductor is from -40°C to +125°C, suitable for industrial use.
The maximum self-resonant frequency of this inductor is 20 MHz, making it suitable for high-frequency applications.
This inductor uses a ferrite core, which provides high magnetic permeability and low losses.
This inductor complies with automotive AEC-Q200 standards and environmental directives including RoHS and REACH.
The inductor is packaged in tape and reel format, facilitating automated surface mount assembly.
The maximum DC resistance of this inductor is 120 mΩ, which helps improve energy efficiency.
This inductor features a wirewound construction, which contributes to its durability and stable electrical characteristics.
This inductor is suitable for applications such as automotive power modules, consumer electronics, and telecommunications equipment.
The termination style for this surface mount inductor is surface mount, designed for easy integration into PCBs.
