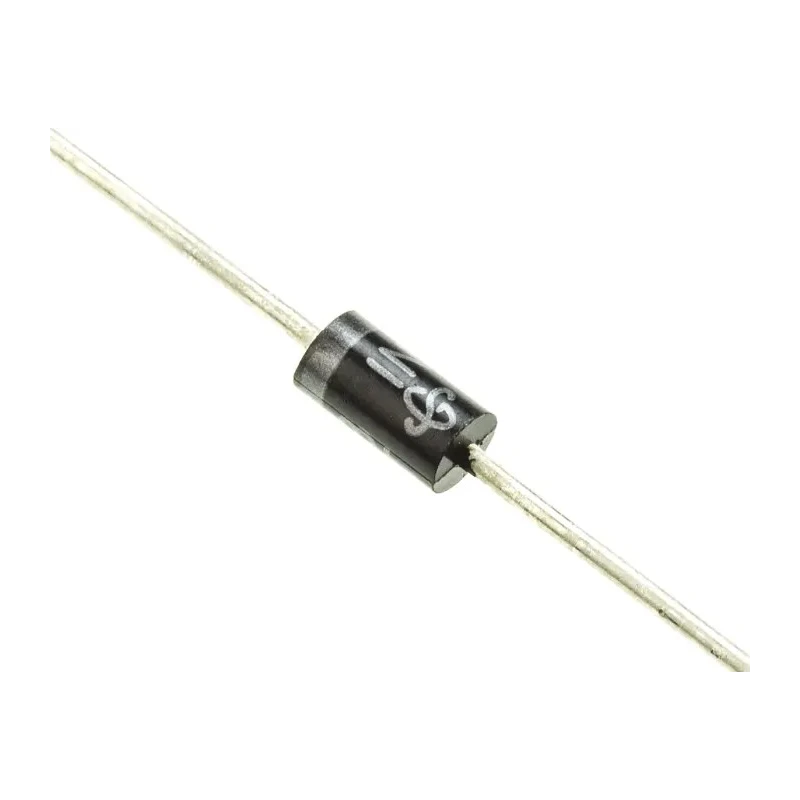

Vishay General Purpose 1 A 200 V Diode 2-Pin DO-204AL Package 1N4003-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4003-E3/54 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N4003 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 45A |
| Maximum Forward Voltage Vf | 1.1V |
| Vishay Diode, 2-Pin DO-41 1N4003Brand | Vishay |
| Taiwan Semi 600V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4937 R0Brand | Taiwan Semiconductor |
| HY Electronic Corp 200V 1A, Silicon Junction Diode, 2-Pin DO-41 UF4003Brand | HY Electronic Corp |
Key Features
- Designed for general purpose applications including rectification of power supplies and freewheeling diode uses.
- Features low forward voltage drop and low leakage current for efficient operation.
- High forward surge capability supports transient current peaks up to 45 A.
- Operates reliably across a temperature range from -50°C to 150°C junction temperature.
- Compact plastic DO-204AL (DO-41) package with 2.7 mm diameter and 5.2 mm length.
- Single diode configuration with 2 pins for easy PCB integration.
- Peak reverse repetitive voltage rating of 200 V ensures protection against voltage spikes.
- Maximum forward voltage of 1.1 V maintains low power losses in circuits.
Product Description
Vishay 1N4003-E3/54 is a general purpose silicon rectifier diode with a maximum continuous forward current rating of 1 A and a peak reverse repetitive voltage of 200 V. It is housed in a plastic DO-204AL (DO-41) through-hole package featuring tin-plated leads for reliable soldering and mechanical stability.
This diode is optimized for general-purpose rectification tasks in power supplies, inverters, converters, and freewheeling diode applications. It offers a low forward voltage drop of 1.1 V and minimal reverse leakage current, contributing to improved energy efficiency in electronic circuits.
The device can endure peak non-repetitive forward surge currents up to 45 A allowing it to withstand short transient overloads without damage. Its junction operating temperature ranges from -50°C to 150°C for versatility in demanding industrial and commercial environments.
The compact mechanical dimensions with a 2.7 mm diameter and 5.2 mm length make it suitable for densely packed printed circuit boards. The single diode, 2-pin configuration is standard for this rectifier series, facilitating easy replacement or circuit design integration.
The product is made in China, ensuring consistent quality and supply. Designed for general purpose rectification operations. Low forward voltage drop enhances efficiency. High surge current capability for transient conditions.
Wide operating temperature supports harsh environments. Compact and durable DO-204AL package. Single diode configuration with 2-pin design. Peak reverse voltage protection up to 200 V. Low peak reverse current minimizes leakage.
Industry-grade manufacture with consistent quality. Ideal for power supply, inverter, and converter applications. Explore additional Vishay semiconductors and related Diode products for diverse industrial, electronic, and power management needs here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 A.
The peak reverse repetitive voltage rating for this model is 200 V.
This diode operates reliably across a temperature range from -50°C to 150°C.
The maximum forward voltage drop of this diode is 1.1 V.
It can endure peak non-repetitive forward surge currents up to 45 A.
The diode is housed in a DO-204AL package with a diameter of 2.7 mm and a length of 5.2 mm.
This diode has a single diode configuration with 2 pins.
It uses a through-hole mounting type.
It is optimized for general-purpose rectification tasks in power supplies, inverters, converters, and freewheeling diode applications.
The peak reverse current for this model is 5 μA.
The diode is manufactured in China.
This diode is a general-purpose silicon rectifier diode.
