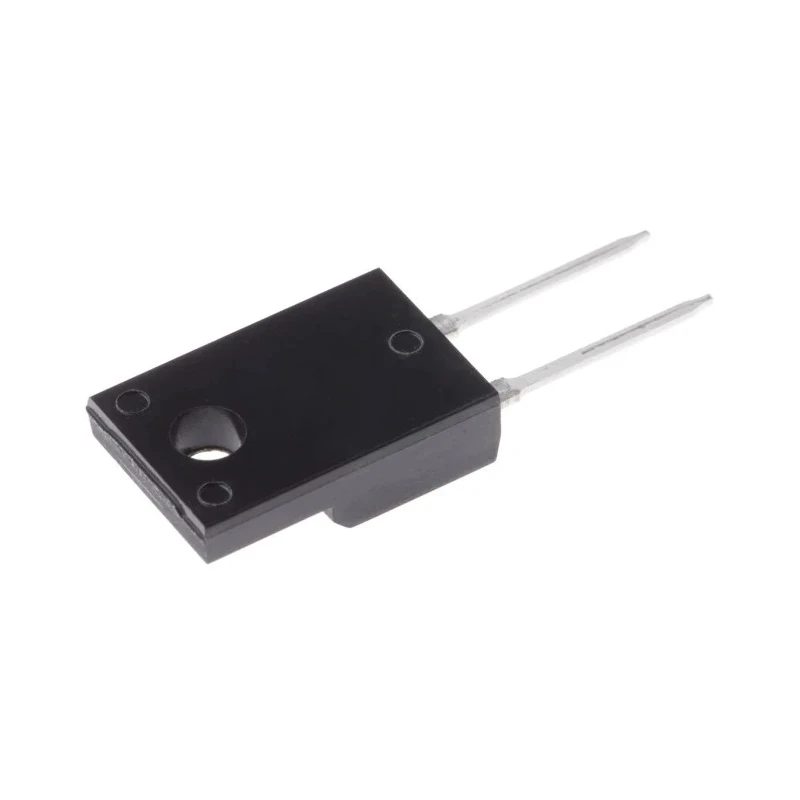

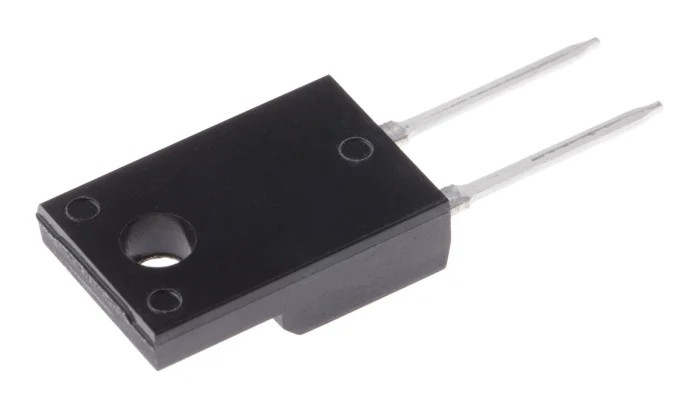

STMicroelectronics 600 V 15 A Switching Diode Through Hole TO-220 Package STTH15R06FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH15R06FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH15R06 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 60μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- This diode supports a peak non-repetitive forward surge current of 120 A.
- It features a maximum forward voltage of 2.9 V for efficient switching performance.
- The diode has a fast reverse recovery time of 50 nanoseconds to enable efficient operation in power rectification.
- Operating temperature ranges from -65°C to a maximum of 175°C for reliable industrial use.
- The component has a single diode configuration with 2 pins for through hole mount.
- The package dimensions measure approximately 10.4 mm in length, 9.3 mm height, and 4.6 mm width.
- It complies with RoHS environmental standards, ensuring lead-free materials.
- This diode is designed for use in switching and rectifier applications in industrial and electronic equipment.
Product Description
The STMicroelectronics STTH15R06FP is a diode designed for high-performance switching and rectification applications. With a voltage rating of 600 V and a maximum continuous forward current of 15 A, this switching diode is suitable for demanding power electronics scenarios. Packaged in a TO-220 through hole form factor, it provides robust mechanical stability and ease of PCB mounting.
The diode features a maximum forward voltage drop of 2.9 V ensuring efficient energy conversion while minimizing power loss. Its peak reverse recovery time of 50 nanoseconds enables fast switching capabilities critical in power supply circuits and converters.
The STTH15R06FP can endure high transient currents up to 120 A in surge conditions, making it reliable for industrial equipment and power management systems. It operates reliably over a wide temperature range from -65°C to 175°C, making it well suited for harsh environments.
The component features a single diode configuration with two pins and meets RoHS compliance, highlighting its environmental safety. Typical dimensions are 10.4 mm length, 9.3 mm height, and 4.6 mm width with a diameter of 3.75 mm on the pins, all contributing to its compact design.
This diode is ideal for use in power rectification, switching regulators, and other electronic industrial applications requiring robust and efficient semiconductor components. Compliance with industry environmental standards like RoHS ensures suitability in commercial and industrial manufacturing.
Explore our extensive collection of Schottky diodes and rectifiers at EnvMart for reliable electronic components used in automotive, manufacturing, laboratory, and commercial sectors.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the STMicroelectronics STTH15R06FP is 15 A.
The peak reverse recovery time for this diode is 50 nanoseconds, enabling efficient switching performance.
This diode has a peak reverse repetitive voltage rating of 600 V.
The dimensions of the TO-220 package are approximately 10.4 mm in length, 9.3 mm in height, and 4.6 mm in width.
The maximum forward voltage drop for the STTH15R06FP is 2.9 V.
The diode operates reliably over a temperature range from -65°C to a maximum of 175°C.
This model uses a through hole mounting type with a single diode configuration and two pins.
The STTH15R06FP can withstand a peak non-repetitive forward surge current of 120 A.
Yes, it complies with RoHS environmental standards, ensuring lead-free materials.
The peak reverse current for the STTH15R06FP is 60 μA.
This diode is designed for use in switching and rectifier applications in industrial and electronic equipment.
The country of origin for the STMicroelectronics STTH15R06FP is India.
