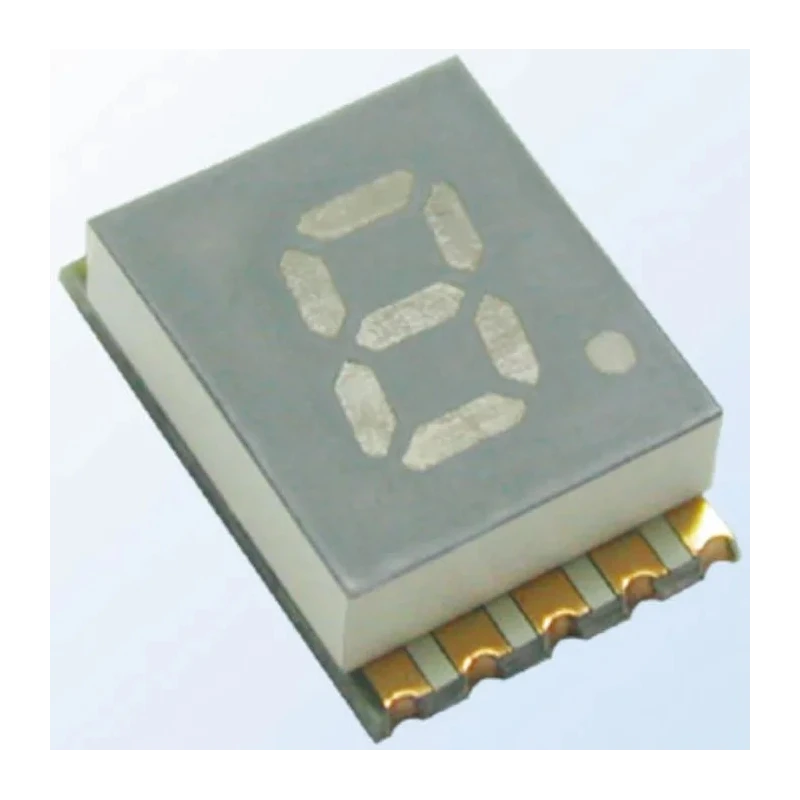

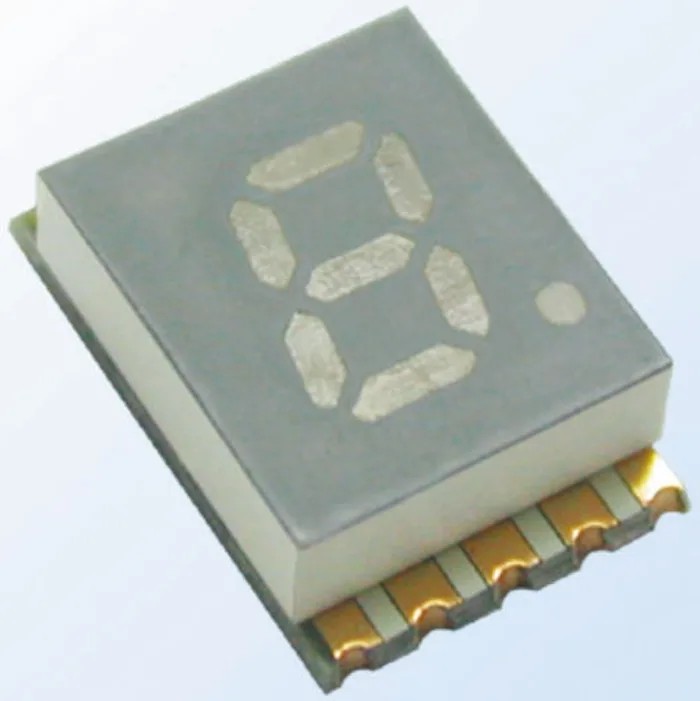

Kingbright 7 Segment LED Display Orange Anode 60mcd Right Side 10.2 mm KCSA04-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA04-106 |
| Mount Type | Surface |
| Character height | 10.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 9.1mm |
| External Depth | 3.8mm |
| External Height | 15mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 60mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 5.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This LED display features a 7-segment configuration with right side decimal orientation.
- It has a character height of 10.2 mm and a character width of 5.6 mm for clear visibility.
- The display supports a forward voltage of 2.1V and maximum forward current of 30mA.
- Designed for surface mounting, it measures 9.1mm in width, 15mm in height, and 3.8mm in depth.
- It operates reliably in temperatures ranging from -40°C to 85°C and is RoHS compliant.
- The device provides excellent character appearance with grey face color and white segments.
- This model is mechanically rugged and suitable for PCB mounting or socket insertion.
Product Description
Kingbright KCSA04-106 is a high-quality 1-character 7 Segment LED Display with orange LED colour. This single digit display features an anode common connection and 60mcd luminous intensity, providing bright, clear digit illumination. The decimal point is oriented on the right side, with character dimensions of 10.2 mm height and 5.6 mm width, ideal for compact electronic display applications.
Constructed with a grey face and white segments, the display ensures excellent character appearance and high on/off contrast, making it easy to read in various lighting conditions. It is designed for surface mounting on PCBs or sockets and has physical dimensions of 9.1 mm width, 15 mm height, and 3.8 mm depth. Forward voltage rating is 2.1V with power dissipation of 75mW and forward current of 30mA, ensuring low power consumption suitable for efficient electronic devices.
Operating temperature ranges from -40°C to 85°C allow for use in a variety of industrial and consumer electronics environments. This display complies with RoHS standards, making it compliant with environmental regulations.
Applications include electronic instrumentation, digital readouts, counters, clocks, and various display modules in industrial, commercial, and laboratory settings. This LED display features a 7-segment configuration with right side decimal orientation.
It has a character height of 10.2 mm and a character width of 5.6 mm for clear visibility. The display supports a forward voltage of 2.1V and maximum forward current of 30mA. Designed for surface mounting, it measures 9.1mm in width, 15mm in height, and 3.8mm in depth.
It operates reliably in temperatures ranging from -40°C to 85°C and is RoHS compliant. The device provides excellent character appearance with grey face color and white segments. This model is mechanically rugged and suitable for PCB mounting or socket insertion.
Explore our extensive range of LED Displays and components at EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 10.2 mm.
The maximum operating temperature for this model is 85°C.
The forward voltage rating of the KCSA04-106 is 2.1V.
The luminous intensity of this LED display is 60 mcd.
This LED display measures 9.1 mm in width, 15 mm in height, and 3.8 mm in depth.
The maximum forward current for this model is 30 mA.
This display is designed for surface mounting.
The face color of this LED display is grey.
Yes, this display is RoHS compliant, meeting environmental regulations.
The minimum operating temperature for this model is -40°C.
This display features 7 segments.
This model is suitable for applications such as electronic instrumentation, digital readouts, counters, and clocks.
