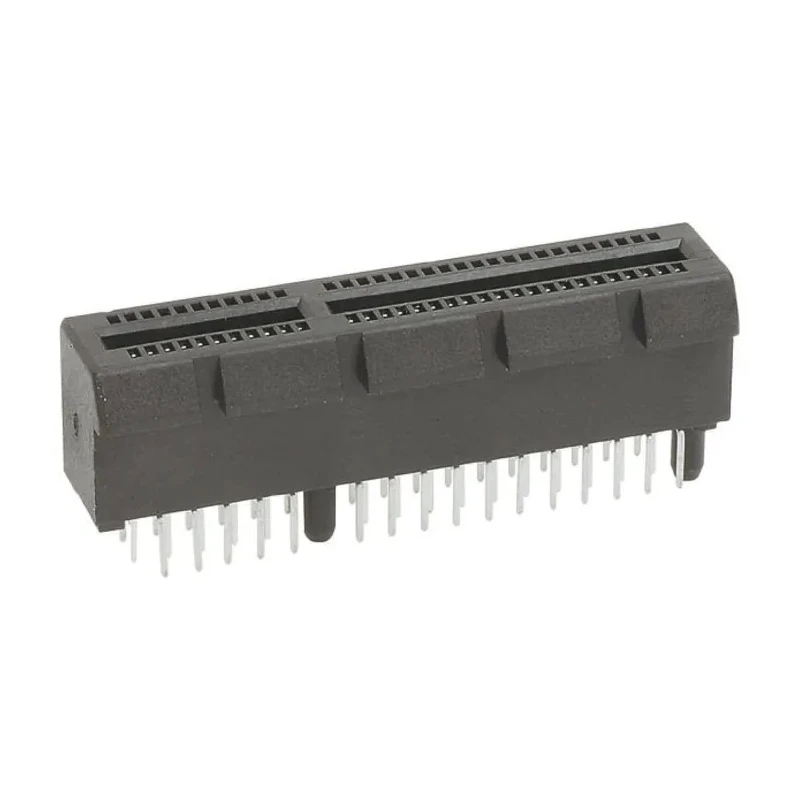

Amphenol ICC PCIe Series Straight Edge Connector Female, Through Hole Mount, 164-Contacts, 2 mm Pitch, 2 10018783-10113TLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Amphenol ICC |
| Orientation | Straight |
| Current | 1.1A |
| Model | 10018783-10113TLF |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 164 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe, PCI |
Key Features
- This edge connector features a straight orientation and female connector gender for PCIe applications.
- It offers 164 contacts arranged in 2 rows with a 2 mm pitch for precise signal transfer.
- Constructed with copper alloy contacts plated in gold over nickel to ensure durability and corrosion resistance.
- Supports current rating of 1.1A and voltage rating of 50V for stable electrical performance.
- Designed for through hole mounting with solder termination type suitable for PCB assembly.
- Operating temperature ranges from -55°C to 85°C to tolerate harsh environmental conditions.
- Housing material is durable nylon, rated to UL94V-0 flame standard for safety.
- Compatible with PCIe and PCI card types, ideal for industrial and electronic component applications.
Product Description
Amphenol ICC 10018783-10113TLF PCIe Series Straight Edge Connector Female is a precision electronic component engineered for seamless integration into PCI Express and PCI systems. It features 164 contacts arranged in 2 rows with a 2 mm pitch, designed to provide reliable, high-speed data transfer with a current rating of 1.1A and voltage rating of 50V.
The connector uses copper alloy contacts with a gold over nickel plating, ensuring excellent conductivity, corrosion resistance, and long service life in demanding industrial and electronic environments. The straight orientation and female connector gender facilitate straightforward through hole mounting on printed circuit boards via solder termination, enabling robust mechanical and electrical connections.
Durable nylon housing rated UL94V-0 flame retardant offers added protection and safety compliance. This connector operates reliably in temperature ranges from -55°C up to 85°C, suitable for applications exposed to wide thermal variations.
Amphenol ICC PCIe Series connectors support various serial PCI Express links offering scalable bandwidth options suitable for computer, telecommunications, and industrial equipment. They are integral in enabling reliable data communication paths within electronic assemblies and systems.
This edge connector features a straight orientation and female connector gender for PCIe applications. It offers 164 contacts arranged in 2 rows with a 2 mm pitch for precise signal transfer. Constructed with copper alloy contacts plated in gold over nickel to ensure durability and corrosion resistance.
Supports current rating of 1.1A and voltage rating of 50V for stable electrical performance. Designed for through hole mounting with solder termination type suitable for PCB assembly. Operating temperature ranges from -55°C to 85°C to tolerate harsh environmental conditions.
Housing material is durable nylon, rated to UL94V-0 flame standard for safety. Compatible with PCIe and PCI card types, ideal for industrial and electronic component applications.
This product is widely used in industrial manufacturing, telecommunications, computing devices, and electronic equipment for robust and reliable connector solutions. EnvMart offers this Amphenol ICC PCIe Series Straight Edge Connector to meet stringent quality requirements in professional electronic installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 164 contacts arranged in 2 rows with a 2 mm pitch.
It supports a current rating of 1.1A and a voltage rating of 50V for stable electrical performance.
The contacts are made of copper alloy and are plated with gold over nickel, while the housing is made of durable nylon.
This unit is designed for through hole mounting with a solder termination type suitable for PCB assembly.
It operates reliably in temperatures ranging from -55°C to 85°C, making it suitable for harsh environmental conditions.
The connector features a straight orientation, facilitating easy installation.
It is compatible with PCIe and PCI card types, making it versatile for various applications.
The contacts are plated with gold over nickel, ensuring excellent conductivity and corrosion resistance.
The nylon housing is rated to the UL94V-0 flame standard for safety compliance.
This model is ideal for industrial manufacturing, telecommunications, computing devices, and electronic equipment.
The contacts are arranged with a pitch of 2 mm, allowing for precise signal transfer.
This connector is part of the PCIe Series, designed for high-speed data transfer applications.
