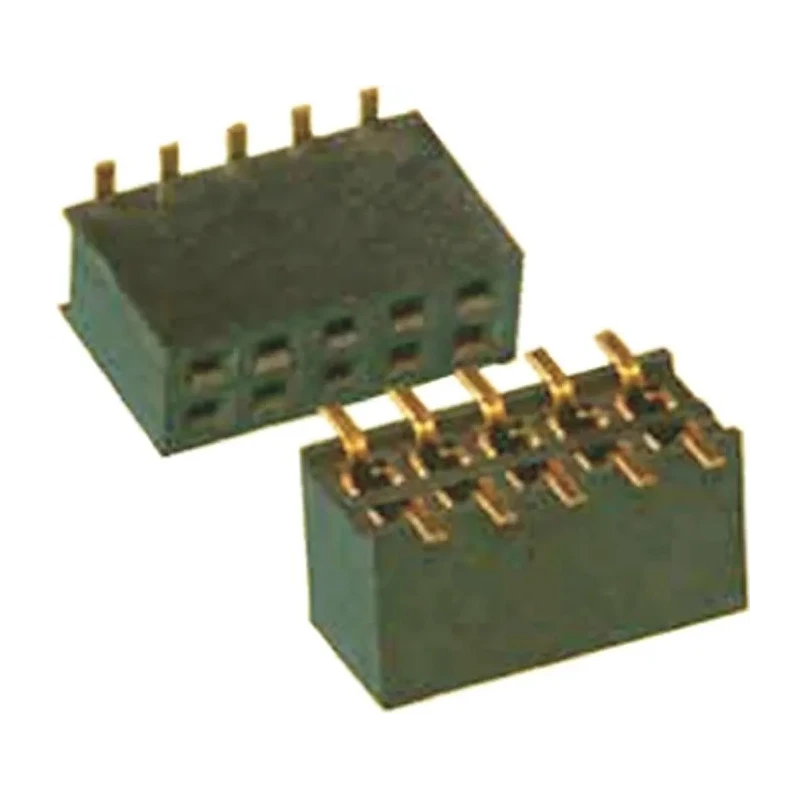

Amphenol ICC Minitek Series Straight Surface PCB Socket, 10-Contact, 2 Row, 1.27 mm Pitch Solder 20021321-00010C4LF

Amphenol ICC 20021321-00010C4LF Minitek Series Straight Surface PCB Socket is an advanced 10-contact PCB socket designed for reliable board-to-board interconnections in electronic devices. Featuring a 2-row configuration with 1.27 mm pitch and solder termination, it supports high current and voltage ratings up to 12 A and 125 V respectively, ensuring robust electrical performance in industrial and commercial electronics applications.

The socket is engineered using high-temperature black thermoplastic material with a UL 94 V-0 flammability rating, providing excellent fire resistance and durability. Its copper contacts are gold-plated for optimal conductivity and corrosion resistance. This surface mount socket has a stacking height of 6.9 mm, enabling compact PCB assembly while maintaining secure connections.

Operating within a temperature range of -55°C to 125°C, the socket is suitable for use in a range of industrial, laboratory, and manufacturing environments requiring reliable electrical interconnects. It withstands up to 100 mating cycles, demonstrating longevity for maintenance and assembly tasks.

The Minitek 127™ series is a widely recognized modular connector system that offers compatibility with various wire-to-board and cable-to-board applications. It provides flexibility in industrial design through its range of connector types including straight and right-angle options with different plating variations.

Designed for board-to-board connections with a straight surface mount orientation. 10 contacts arranged in 2 rows with 1.27 mm pitch spacing. Gold-plated copper contacts for superior electrical performance. High temperature black thermoplastic housing with UL 94 V-0 rating.

Rated for 12 A continuous current and 125 V voltage. Operates reliably between -55°C and 125°C. Stacking height of 6.9 mm to enable dense PCB layouts. Durable for up to 100 mating cycles. Intermateable with other common designs in the Minitek system.

Made in China, this PCB socket is new and intended for use in electronics manufacturing, industrial equipment, laboratory setups, and commercial devices where high-performance PCB connectors are required. Explore more PCB Sockets and connectors under the Electronics Components category at EnvMart.
