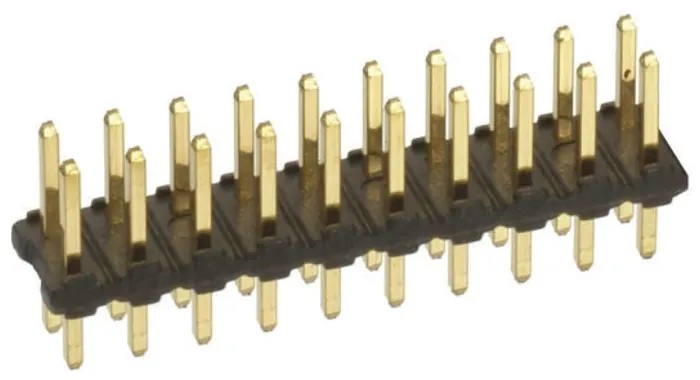

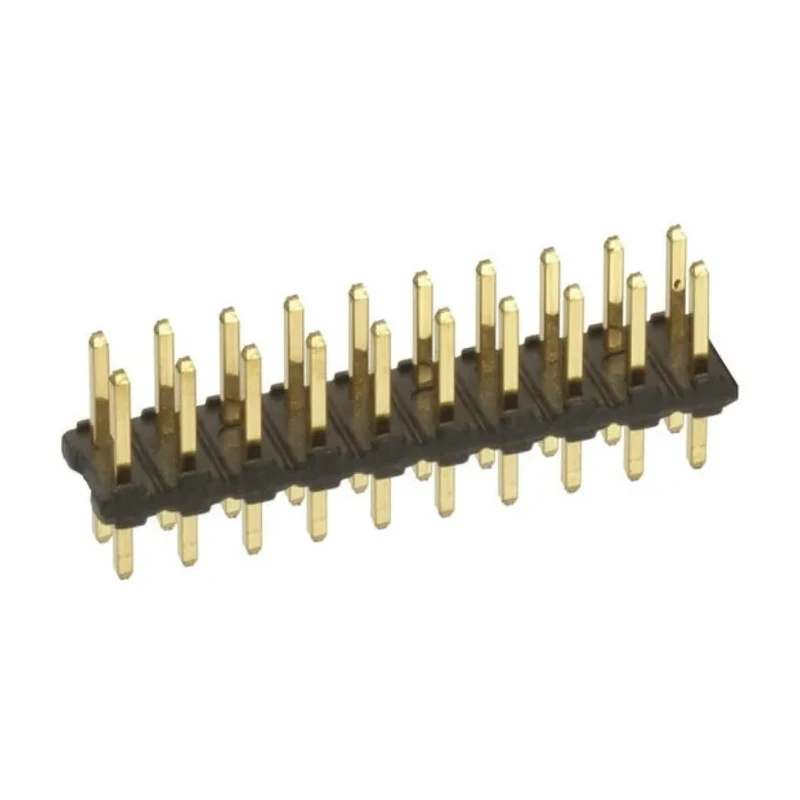

Amphenol ICC Bergstik Series 72 Contact Straight Through Hole Pin Header 2 Row 2.54 mm Pitch 77313-824-72LF

Amphenol ICC 77313-824-72LF Bergstik Series Straight Through Hole Pin Header offers a reliable and economical interconnection solution for electronic assemblies. Featuring 72 gold-plated contacts arranged in 2 rows with a 2.54 mm pitch, it is designed for board-to-board and wire-to-board applications.

The housing is manufactured from a high-temperature thermoplastic material compatible with reflow soldering processes and rated UL 94 V-0 for flammability. The pin header's phosphor bronze contacts provide excellent electrical conductivity and mechanical durability.

This pin header’s straight orientation and through-hole mounting option facilitate integration into densely packed PCBs. Its mating pin length of 6.75 mm and tail pin length of 2.9 mm ensure secure and stable connections with mating connectors such as Dubox series receptacles and Quickie IDC receptacles.

Designed to operate reliably within a temperature range of -65°C up to 125°C, this product is suitable for industrial, laboratory, and commercial applications requiring robust and versatile PCB interconnect solutions.

Additional features include stand-offs in the housing to prevent solder contamination, duplex plating for cost efficiency, and an unshrouded form factor that allows compatibility with a wide variety of female connectors, enhancing circuit design flexibility.

Thermoplastic high-temp, reflow solder compatible housing rated UL 94 V-0. Phosphor bronze contact material with gold plating for durability and conductivity. 72 contacts, 2 rows, 2.54 mm pitch, straight orientation. Through-hole mount type for secure PCB integration.

Operating voltage of 1.5kV and current rating of 3A. Temperature range: -65°C to 125°C for harsh environment tolerance. Compliant with CHINA RoHS, EU RoHS, and REACH/SvHC environmental standards. Stand-offs included for solder contamination prevention.

Ideal for board-to-board and wire-to-board industrial electronic applications.

This pin header is manufactured in France and delivered new, offering trusted quality and performance for electronic component assemblies. Browse similar products in the EnvMart PCB Headers category for more interconnect solutions.
