Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Mount Cat3 Unshielded Straight 1 Port 6 Way RJ11

Free Delivery in India | Lowest Global Shipping Charges

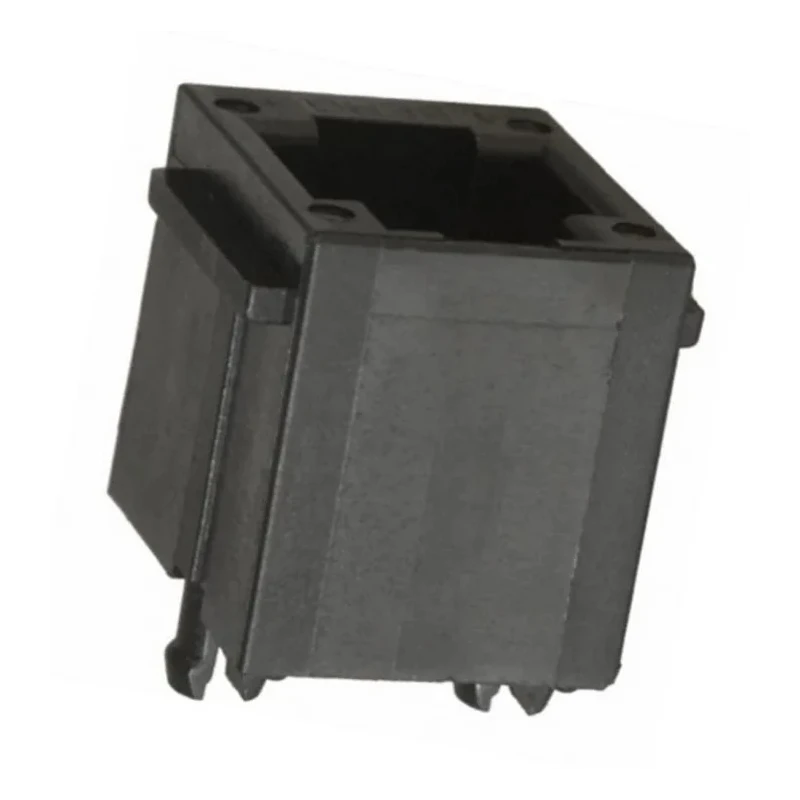

Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Mount Cat3 Unshielded Straight 1 Port 6 Way RJ11

Name: Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Mount Cat3 Unshielded Straight 1 Port 6 Way RJ11
Brand: Amphenol ICC
SKU: 208064
Price: 1.21 USD
Availability: InStock



Category Connector Brand Amphenol ICC Condition New

Specifications

Country of Origin	India
Brand	Amphenol ICC
Orientation	Straight
Length	15.75mm
Model	RJ11
Depth	15.62mm
Connector Type	Modular Jack
Number Of Ways	6
Width	11.94mm
Mount Type	PCB
Contact Material	Copper Alloy
Series	MOD JACK
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-65°C
Shield Type	Unshielded
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ11

Key Features

This connector is designed for PCB mounting in electronic and telecommunication applications.
The connector supports Category 3 LAN suitable for low speed network devices.
It features a gold over nickel plated copper alloy contact for reliable conductivity.
The unshielded, straight orientation facilitates easy installation and compact PCB space usage.
Operating temperature range from -65°C to 125°C ensures performance in various environments.
The termination type is solder, assuring secure and durable electrical connections.
Depth, length, and width dimensions are precisely 15.62 mm, 15.75 mm, and 11.94 mm respectively for compact footprint.
Its MOD JACK series design supports versatility with secure retention and stackable side-by-side layout.

Product Description

Amphenol ICC RJ11 Connector model 90512-003LF offers a female modular jack designed for PCB mounting with unshielded Cat3 capability. This connector is ideal for telecommunications, networking, and electronic equipment requiring reliable low-speed Ethernet or telephone connectivity.

The connector supports one port with six ways, providing a compact yet functional interface for Category 3 applications, suitable for devices such as telephones, modems, security systems, set-top boxes, and other low speed data devices.

Constructed with a copper alloy contact material and plated with gold over nickel, the connector ensures excellent electrical performance and corrosion resistance. Its unshielded, straight orientation simplifies installation and aids in PCB space savings by stacking capabilities.

The operating temperature range of -65°C to 125°C allows usage in a wide variety of industrial, commercial, and residential environments. It employs solder termination type and includes PCB board locks for secure retention during soldering.

This MOD JACK series connector is compatible with wave soldering and offers multiple mounting configurations, optimizing design flexibility. Shielded versions and low profile options are also available within this series for enhanced EMI/ESD protection and compact installations.

Designed for low speed Cat 3 network applications such as phones, modems, POS terminals, security systems, and ATMs. Compact dimensions enabling PCB space saving and side-by-side stackability. Gold plated copper alloy contacts ensure reliable conductivity and durability.

Wide operating temperature range from -65°C to 125°C for diverse environments. Solder termination with board locks guarantees secure mounting and durability.

Amphenol ICC connectors are known for their high reliability and quality, suited for industrial, telecommunications, and commercial uses. Browse the Electronics & Electricals category at EnvMart for more precision Connectors and related components.
