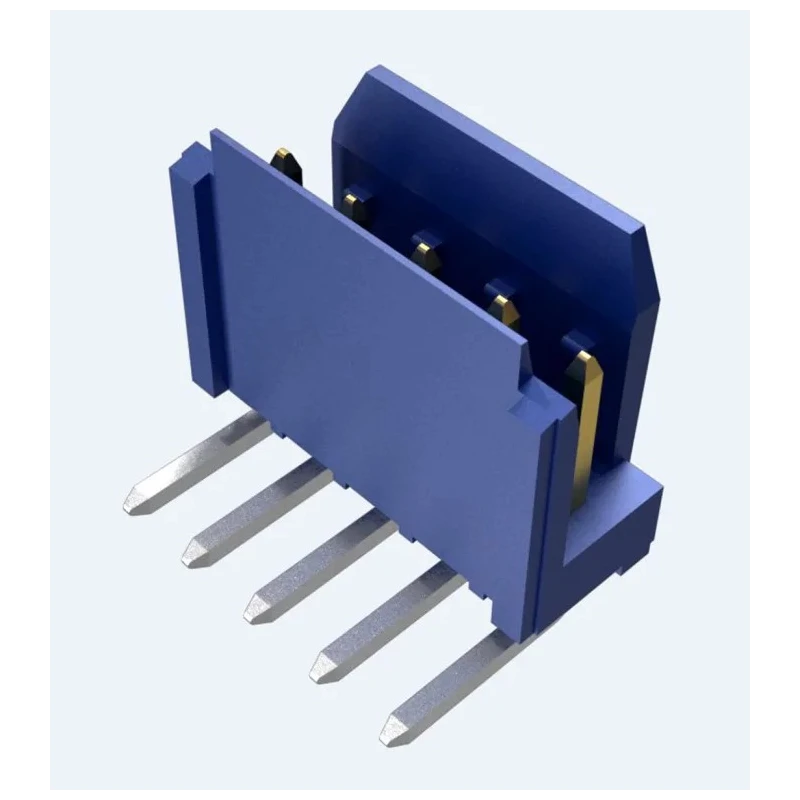

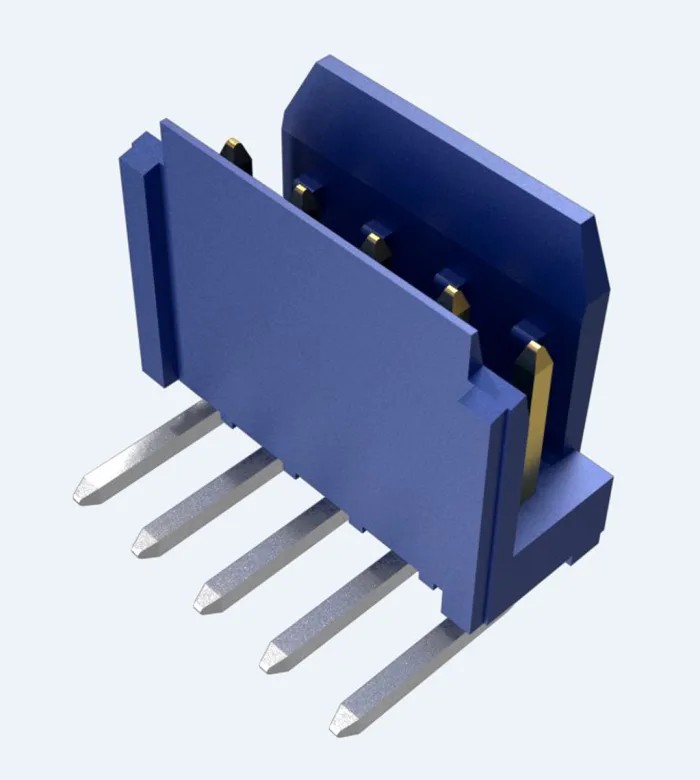

Amphenol ICC Dubox Series Right Angle Through Hole PCB Header 5 Contacts 2.54 mm Pitch 1 Row Shrouded 76382-305LF

Amphenol ICC 76382-305LF Dubox Series Right Angle Through Hole PCB Header features a 5-contact configuration with 2.54 mm pitch and a single row design. The shrouded right angle header is designed for reliable wire-to-board connector systems and offers space-saving end-to-end stackability.

Manufactured from glass filled thermoplastic polyester, this PCB header provides high-temperature durability suitable for solder reflow and wave solder processes. Its phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance while the male contact gender suits numerous electronic assemblies.

The connector system is wire-to-board with a through-hole mount type, and the component operates safely from -40°C to 125°C. The design includes features such as polarization to prevent mismating and friction locking for a dependable mating connection.

Applications beneficially served by this product include industrial automation, medical instrumentation, consumer electronics, communications equipment, and data handling devices where compact and secure PCB connectors are essential.

Right angle orientation optimizes PCB space. Five gold-plated male contacts ensure reliable conductivity. Shrouded housing prevents mismating and enhances safety. Constructed with glass filled thermoplastic polyester for high temperature resistance.

Suitable for wave solder process with high temperature housing materials. Rated for 3A current and up to 1kV voltage for robust performance. Polarization and friction lock provide secure mating connection. Ideal for industrial, instrumentation, medical, consumer, communications, and data applications.

This Amphenol ICC Dubox series PCB header is a dependable component for electronic assemblies requiring secure wire-to-board interfacing in demanding environmental conditions. Check out more products in the PCB Headers category at EnvMart.
