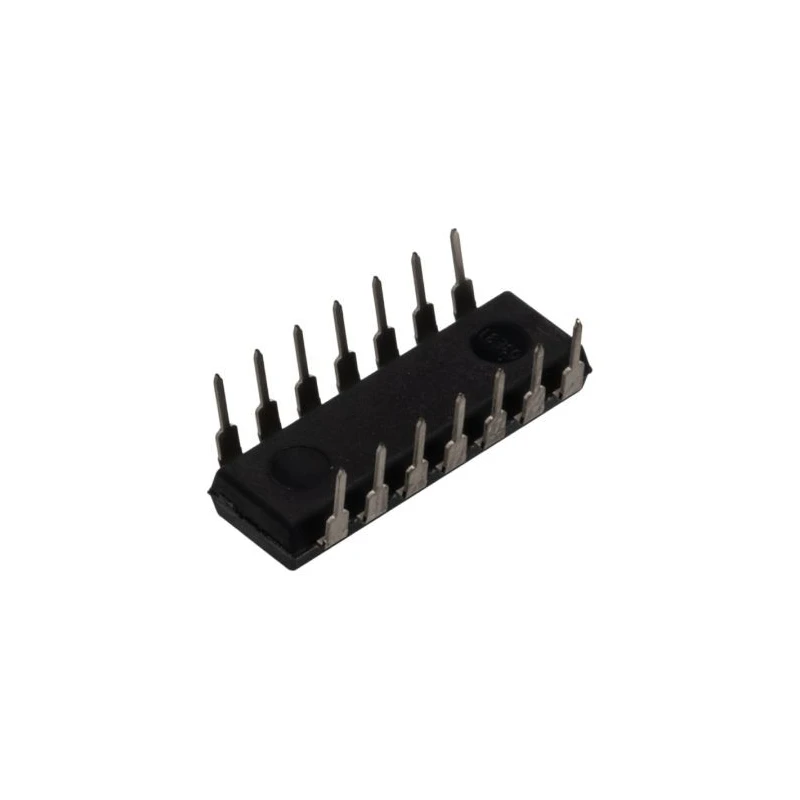

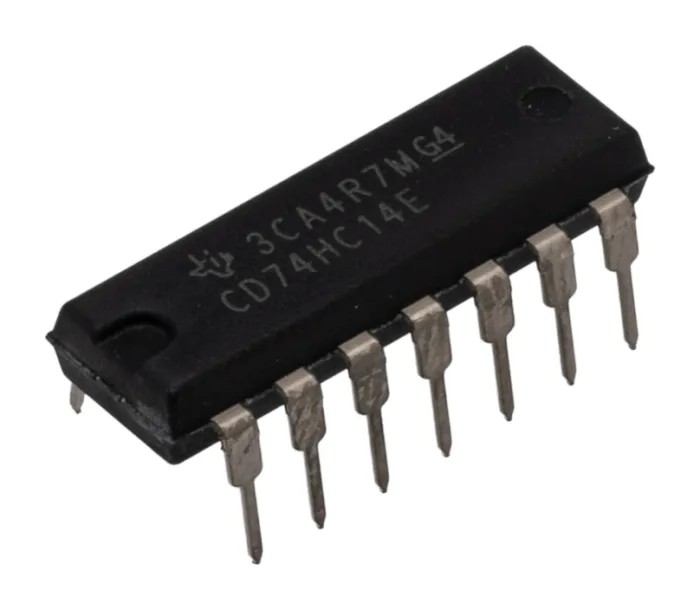

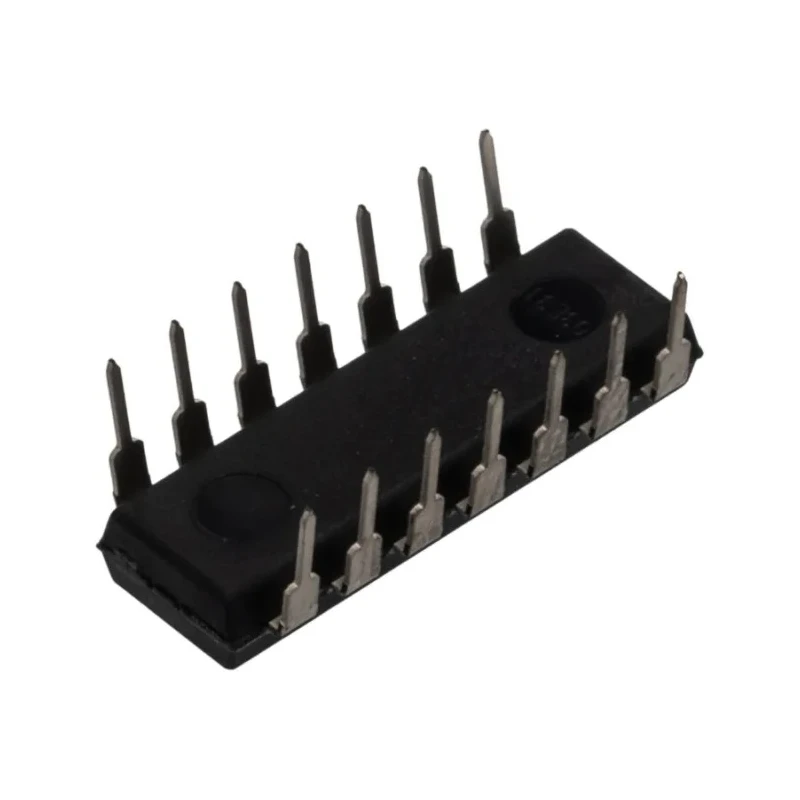

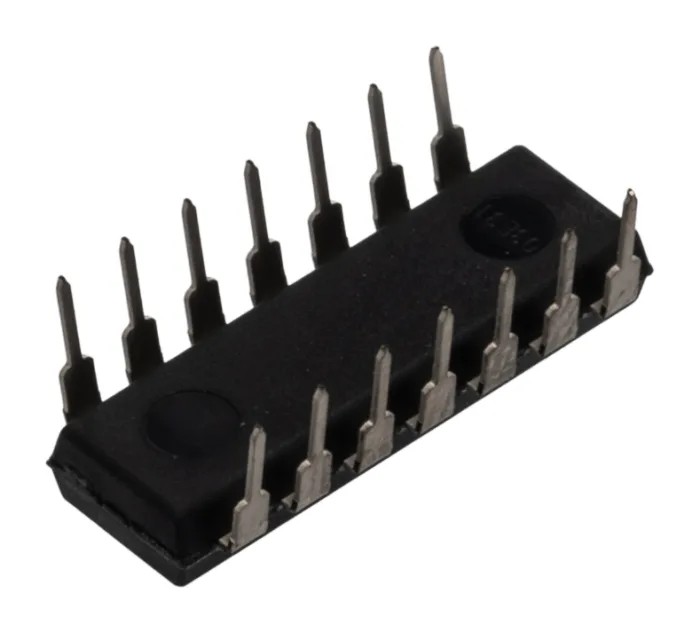

Texas Instruments Schmitt Trigger Input Inverter Logic IC 6 Elements 14-Pin PDIP CD74HC14E

Free Delivery in India | Lowest Global Shipping Charges

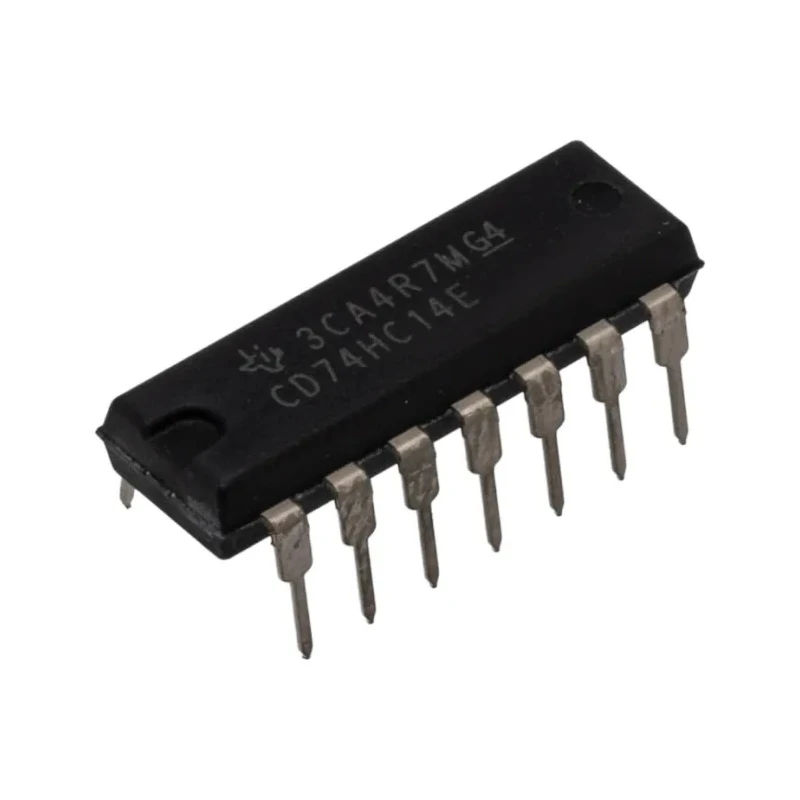

Texas Instruments Schmitt Trigger Input Inverter Logic IC 6 Elements 14-Pin PDIP CD74HC14E

Name: Texas Instruments Schmitt Trigger Input Inverter Logic IC 6 Elements 14-Pin PDIP CD74HC14E
Brand: Texas Instruments
SKU: 123606
Price: 1.15 USD
Availability: InStock



Category Logic ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD74HC14E
Width	6.35mm
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	CMOS, Push Pull
Series	CD74HC14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	205ns
Maximum Low Level Output Current	5.2mA

Key Features

Utilizes CMOS technology for high speed and low power consumption.
Maximum propagation delay time at capacitive load is 205 nanoseconds.
Operates within temperature range of -55°C to 125°C.
Compatible with input and output CMOS logic families.
Pin count total is 14 with a PDIP package type.
Maximum high level output current is -5.2mA and maximum low level is 5.2mA.

Product Description

Texas Instruments CD74HC14E is a high-speed CMOS 6-element inverter logic IC with Schmitt Trigger inputs designed for reliable operation in electronic applications requiring waveform reshaping and noise immunity. Packaged in a 14-pin PDIP, this component is ideal for through-hole mount designs.

The device operates at supply voltages between 2 to 6 volts and is rated to function across a wide temperature range from -55°C to 125°C, making it suitable for industrial and commercial electronics environments. The logic family compatibility is HC, supporting standard CMOS input and output interfacing.

Each of the 6 inverter elements in the chip contains a Schmitt Trigger input, enhancing noise immunity and ensuring clean signal transitions in your circuits. The maximum propagation delay time is 205ns at a capacitive load, making it appropriate for speed-sensitive digital logic operations.

Physical dimensions are compact, with a length of 19.3mm, width of 6.35mm, and height of 4.57mm, supporting integration into space-conscious PCB layouts. Output currents are rated at -5.2mA (high level) and 5.2mA (low level), with a 14-pin PDIP form factor for easy handling and insertion into standard sockets or PCBs.

Utilizes silicon gate CMOS technology for low power consumption and high performance. Through hole mount type allows for versatile electronics design and prototyping. Schmitt Trigger inputs provide enhanced noise immunity and improved signal integrity.

Wide operating temperature range from -55°C to 125°C for robust application use. Compact 14-pin PDIP package suitable for various digital circuit designs. Compatible with CMOS logic levels, ensuring easy interfacing with other digital logic components.

This inverter IC from the Texas Instruments 74HC family is applicable in industrial control systems, communication equipment, instrumentation, and general purpose digital logic. Its efficient power usage and fast switching capabilities make it a fundamental component for electronic engineers developing reliable, high-performance designs.
