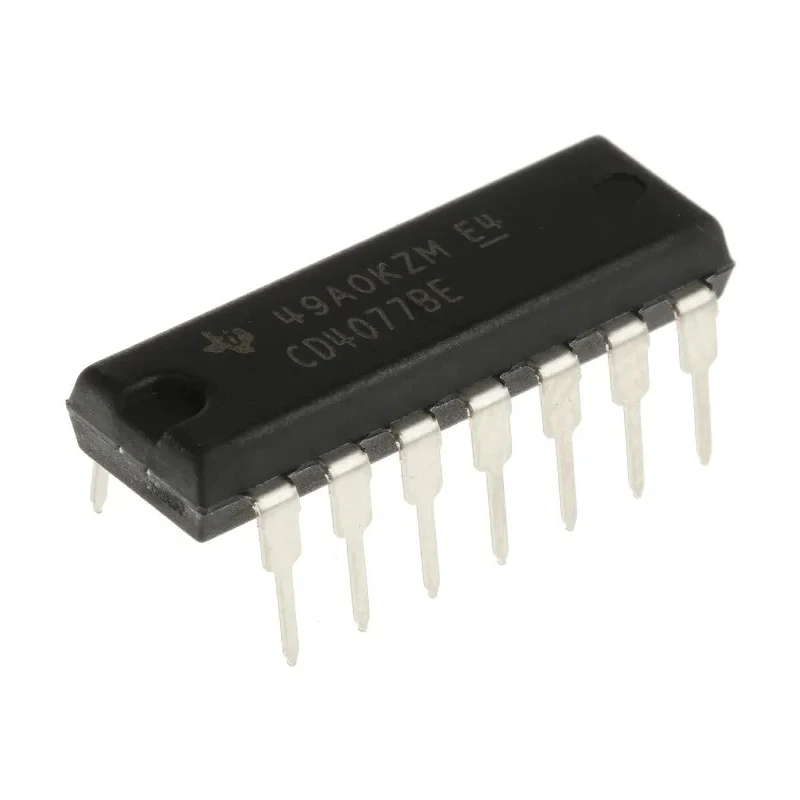

Texas Instruments 4 2-Input XNOR Logic Gate, 14-Pin PDIP CD4077BE

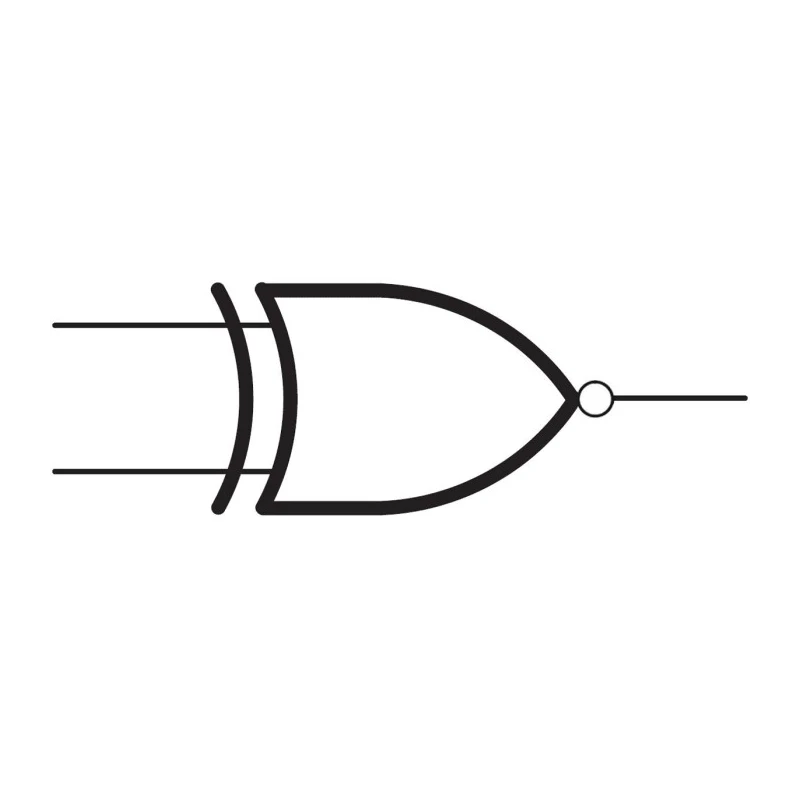

Texas Instruments CD4077BE is a standard 4000 series CMOS logic IC consisting of four independent 2-input XNOR gates packaged in a 14-pin PDIP case. It is designed for general-purpose logic applications requiring XNOR functionality.

This logic gate device supports through-hole mounting and operates with a wide supply voltage range from 3V to 18V, providing design flexibility in electronic circuits. Its CMOS input type guarantees very low static power consumption, making it suitable for both industrial and consumer electronic designs.

The maximum propagation delay time of 100 nanoseconds ensures swift logic switching, while operation across a temperature range from -55°C to 125°C allows use in harsh industrial environments. It delivers reliable performance with maximum output currents of +4.2 mA and -4.2 mA.

The compact PDIP package with 14 pins measures 19.3 mm in length and 4.57 mm in height, facilitating easy integration on standard printed circuit boards. This IC is widely used in logic circuits for industrial automation, instrumentation, and electronic product manufacturing.

This IC features four independent 2-input XNOR gates. Wide operating voltage range of 3V to 18V for design versatility. Through-hole PDIP package simplifies board mounting and soldering. Maximum propagation delay time of 100 ns for high-speed logic operation.

Operating temperature range from -55°C to +125°C suits industrial use. CMOS input type ensures low power consumption and noise immunity. Maximum output current ±4.2 mA supports robust load driving capability. The 4000 CMOS logic family provides a standardized, reliable design solution.

Ideal for use in laboratory instruments, industrial automation, and electronic device manufacturing requiring XNOR logic operations. Explore our range of semiconductor Logic Gates on EnvMart for comprehensive solutions.
