Texas Instruments 4 2-Input AND Logic Gate, 14-Pin PDIP CD74HC08E

Free Delivery in India | Lowest Global Shipping Charges

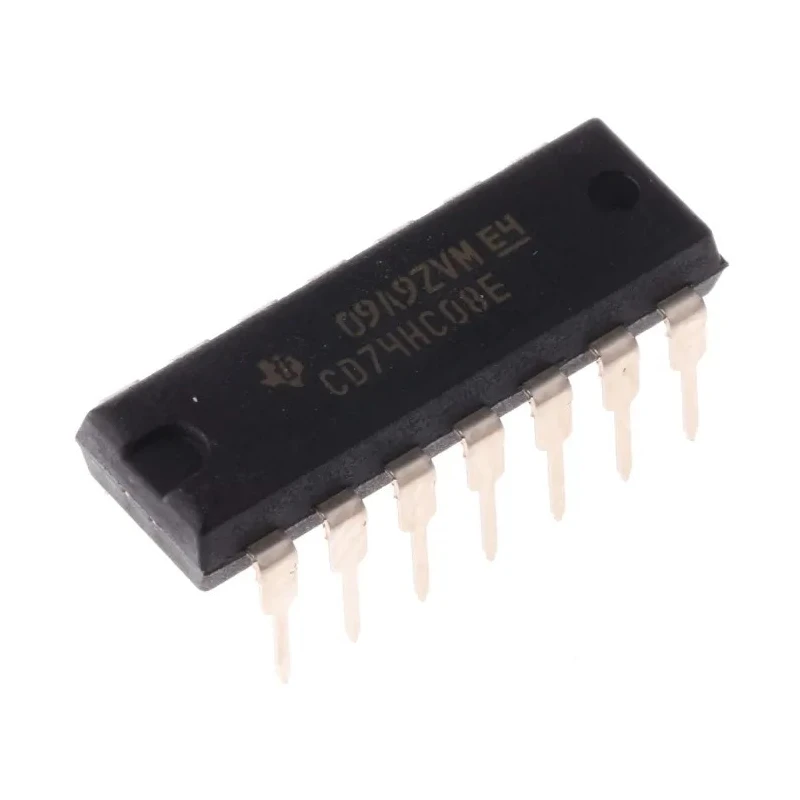

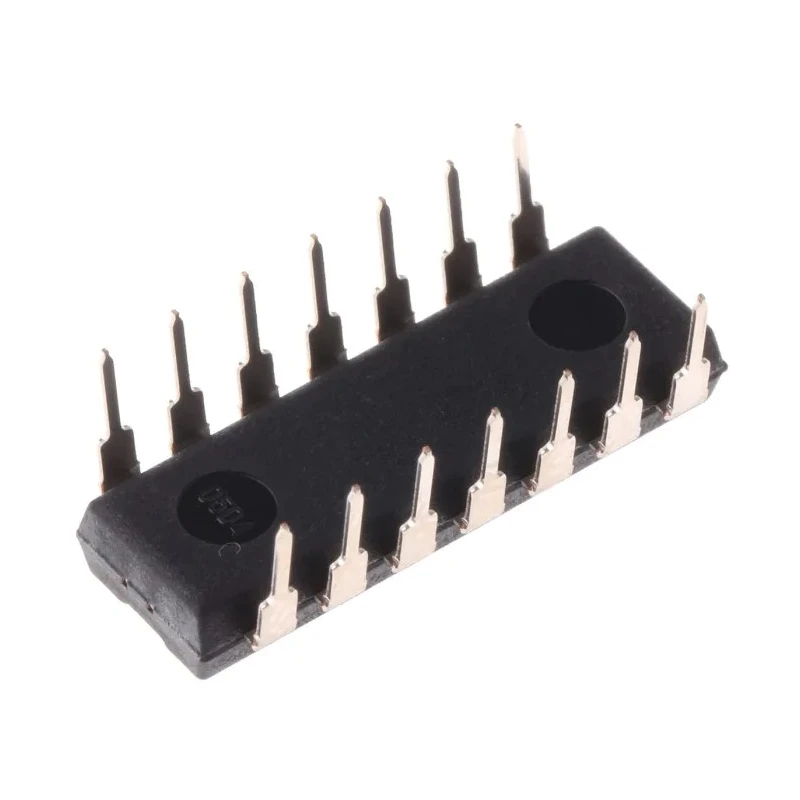

Texas Instruments 4 2-Input AND Logic Gate, 14-Pin PDIP CD74HC08E

Name: Texas Instruments 4 2-Input AND Logic Gate, 14-Pin PDIP CD74HC08E
Brand: Texas Instruments
SKU: 127705
Price: 1.59 USD
Availability: InStock



Category Logic ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD74HC08E
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	CMOS
Series	CD74
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	AND
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	33ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2

Key Features

This logic gate contains four independent 2-input AND gates in one IC.
Uses high-speed CMOS technology for low power consumption and high performance.
Suitable for through-hole mounting in electronic circuits and devices.
Operates over a supply voltage range from 2 V to 6 V.
Maximum propagation delay is 33 nanoseconds at CL.
Wide operating temperature range from -55°C to 125°C ensures reliable performance.
Compatible CMOS input and output logic levels facilitate circuit design.
Provides maximum high level output current of -5.2 mA and low level output current of 5.2 mA.

Product Description

Texas Instruments CD74HC08E is a 4 2-input AND logic gate integrated circuit housed in a 14-pin PDIP package. It is part of the 74HC family, which uses silicon gate CMOS technology to deliver high-speed logic performance with low power consumption. This IC is designed for through-hole mounting in electronic and semiconductor applications.

The device contains four independent gates, each accepting two inputs to perform logical AND functions. It supports supply voltages from 2 V up to 6 V, making it versatile for various electronic systems. With a maximum propagation delay of 33 ns, it is suitable for high-speed digital logic operations.

Operating temperature range between -55°C and 125°C ensures operational stability in industrial and laboratory environments. The logic levels are CMOS compatible both at input and output, facilitating easy integration in mixed-logic designs.

The package size of 14 pins and PDIP form factor is convenient for prototyping and manufacturing with standard through-hole technology. Output current capabilities include a maximum high level of -5.2 mA and a maximum low level of 5.2 mA, supporting reliable signal driving.

Contains four 2-input AND gates in one IC. High-speed CMOS technology for low power use. Through-hole mountable 14-pin PDIP package. Wide supply voltage range from 2 V to 6 V. Fast propagation delay of 33 ns for swift logic response.

Robust operation over a very wide temperature range. CMOS compatible inputs and outputs. Output current ratings provide stable high and low logic levels. Ideal for industrial automation, digital electronics, and logic circuit designs.

This product is widely used in electronic devices, automation systems, industrial control circuits, and other manufacturing applications requiring reliable AND gate functionality. Explore more products in the Logic IC category and other Texas Instruments components at EnvMart for your industrial and electronic projects.

Explore more products in our Logic ICs category.
