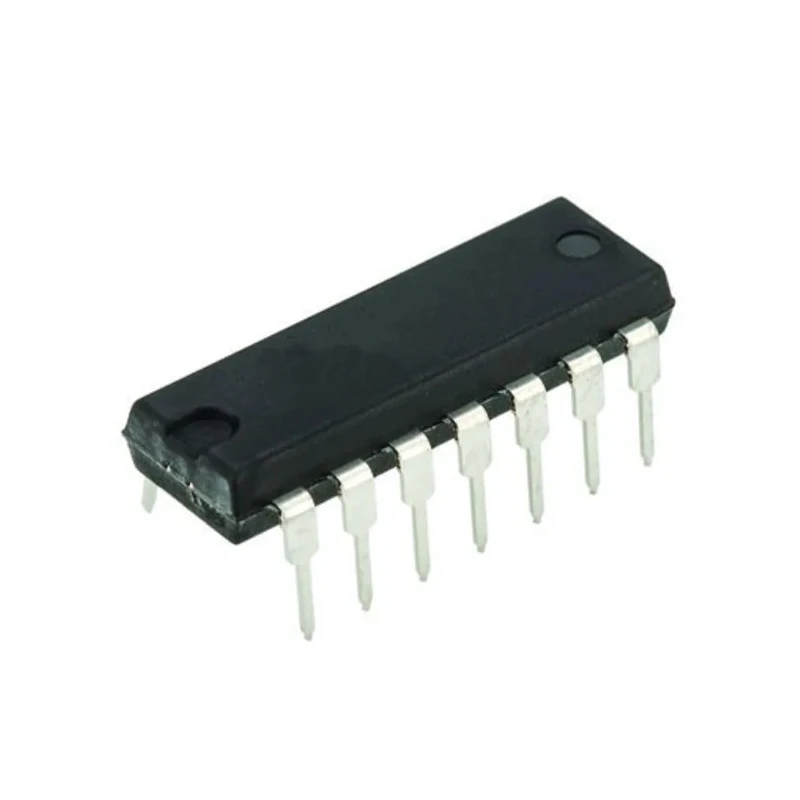

Texas Instruments 3 3-Input OR Logic Gate, 14-Pin PDIP CD4075BE

Texas Instruments CD4075BE is a high-performance 3 3-input OR logic gate integrated circuit packaged in a 14-pin PDIP form factor. This CMOS logic IC belongs to the 4000 series logic family and offers robust performance for various digital electronic applications requiring logical OR operations of multiple inputs.

This IC contains three independent OR gates, each with 3 inputs, providing efficient and compact logic functionality. Its through-hole PDIP package facilitates easy installation on printed circuit boards. The device operates over a wide voltage range between 3V and 18V, accommodating flexible power supply options in industrial and embedded contexts.

With a maximum propagation delay of 90 nanoseconds at standard load conditions, the CD4075BE offers rapid signal processing suitable for timing-critical circuits. It supports temperature operation from -55°C to 125°C, making it suitable for diverse operating environments including harsh industrial settings.

The device features standard CMOS input types with no Schmitt trigger inputs, ensuring straightforward logic level interpretation. Output current capabilities of -4.2mA high level and 4.2mA low level allow compatibility with standard logic loads.

This Texas Instruments Logic Gate IC is ideally utilized in embedded systems, electronic instrumentation, control systems, and digital signal processing applications. It ensures reliable logic OR functionality in automation, communication, and control industries.

Contains three independent 3-input OR gates. Utilizes CMOS technology for low power consumption. Operates over a wide voltage range from 3V to 18V. Maximum propagation delay time of 90 nanoseconds ensures fast switching.

Suitable for through-hole mounting with a 14-pin PDIP package. Operates reliably in temperatures from -55°C to 125°C. Maximum high level output current of -4.2mA and low level output current of 4.2mA. Standard 4000 logic family component, compatible with various digital circuits.

Designed for industrial, electronic, and embedded system applications. Non-Schmitt trigger input for standard logic behavior. Explore more high-quality logic ICs and electronic components on EnvMart to support your design and production needs.
