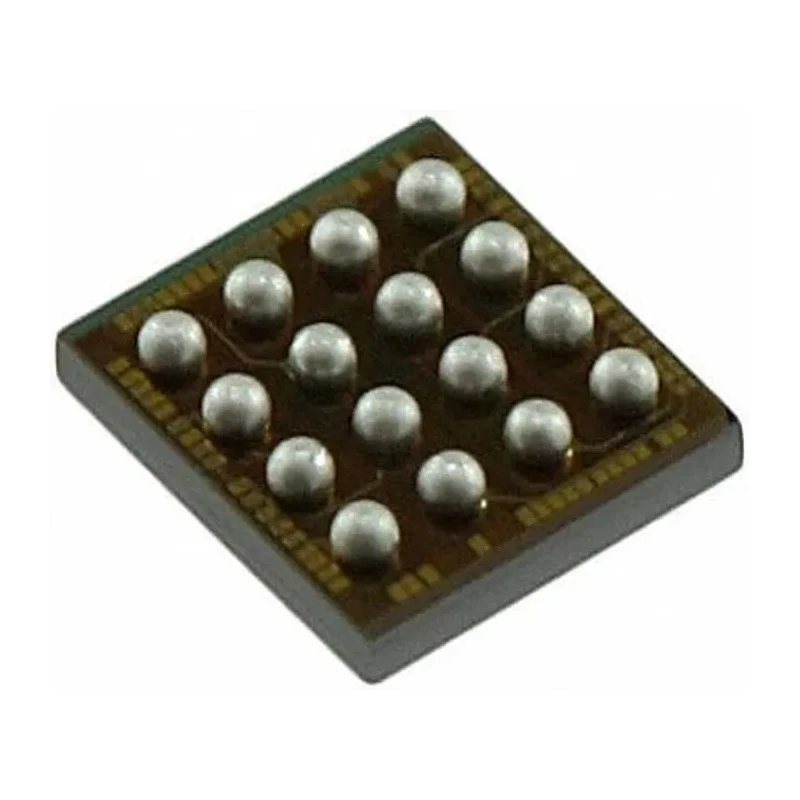

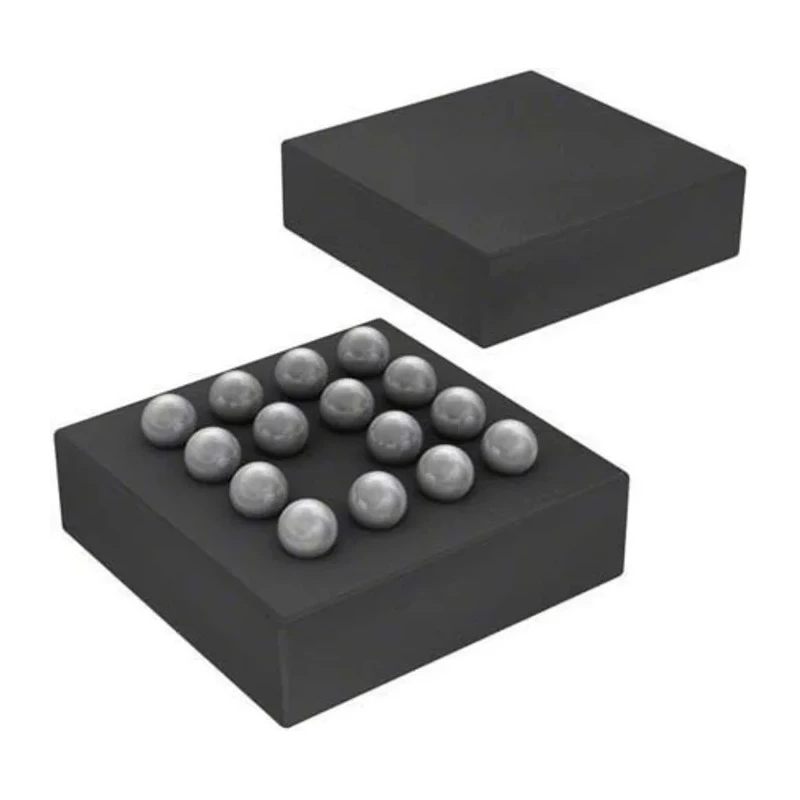

STMicroelectronics 2-Element EMI Filter & ESD Protector, 11-Pin Flip-Chip EMIF02-USB03F2
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.65mm |
| Length | 1.44mm |
| Model | EMIF02-USB03F2 |
| Width | 1.94mm |
| Mount Type | Surface |
| Series | EMIF02 |
| Maximum Operating Temperature | 85°C |
| Package Type | Flip-Chip |
| Minimum Operating Temperature | -40°C |
| Interfaces | HDMI, USB or serial interfaces for microphones, mobile phone cameras, LCD displays, memory cards, etc |
| Pin Count | 11 |
| Number of Elements per Chip | 2 |
| Minimum Breakdown Voltage Vbr | 14V |
| Test Current It | 1mA |
Key Features
- Integrates 2 elements for efficient EMI filtering and ESD protection.
- Compact flip-chip package with 11 pins suitable for surface mounting.
- Operates reliably within -40°C to 85°C temperature range.
- Ideal for HDMI, USB, and serial interfaces in mobile and multimedia devices.
- Minimum breakdown voltage of 14V ensures robust transient protection.
- High cut-off frequency low-pass filter up to 400MHz for noise reduction.
- Measures only 1.94mm width, 1.44mm length, and 0.65mm height for space-saving PCB designs.
- Test current is 1mA, supporting low-power applications.
Product Description
STMicroelectronics EMIF02-USB03F2 is a high-performance 2-element EMI filter and ESD protector designed in an 11-pin flip-chip surface mount package. It provides integrated electromagnetic interference filtering and electrostatic discharge protection within a compact size, making it ideal for modern multimedia and mobile device applications.
This component supports a minimum breakdown voltage of 14V and operates efficiently within a temperature range from -40°C to 85°C. It includes a high cut-off frequency low-pass filter rated up to 400MHz, ensuring effective noise suppression and signal integrity on HDMI, USB, and serial data interfaces.
The device features a compact footprint with dimensions of 1.94mm width, 1.44mm length, and 0.65mm height, suitable for dense PCB layouts in advanced electronics manufacturing.
Typical use cases include integration in multimedia applications such as microphones, mobile phone cameras, LCD displays, and memory cards where transient voltage suppression and EMI noise reduction are critical.
As part of the EMIF02 series from STMicroelectronics, the EMIF02-USB03F2 delivers reliable performance without automotive-grade certification. Its surface mount flip-chip package streamlines automated assembly and enhances production efficiency.
Integrates 2 elements for EMI filtering and ESD protection. Compact 11-pin flip-chip surface mount design. High cut-off frequency low-pass filter of 400MHz. Robust voltage protection with 14V breakdown voltage. Temperature range from -40°C to 85°C ensures durability in harsh environments.
Ideal for HDMI, USB and serial interfaces in multimedia electronics. Small package size improves PCB space utilization. Test current of 1mA for low power consumption. Applicable to mobile cameras, microphones, LCDs and memory cards.
Explore more electronic components and EMI filter solutions on EnvMart to enhance your device designs with high-quality, reliable STMicroelectronics products.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of the EMIF02-USB03F2 is from -40°C to 85°C.
This model features a high cut-off frequency low-pass filter rated up to 400MHz, which aids in effective noise suppression.
It has a total of 11 pins, designed for surface mounting in a compact package.
The minimum breakdown voltage of the EMIF02-USB03F2 is 14V, providing robust transient protection.
The dimensions of the EMIF02-USB03F2 are 1.94mm in width, 1.44mm in length, and 0.65mm in height.
This unit is suitable for HDMI, USB, and serial interfaces, making it ideal for applications such as microphones, mobile phone cameras, and LCD displays.
The test current for the EMIF02-USB03F2 is 1mA, supporting low-power applications.
It comes in a compact flip-chip package, which is suitable for surface mounting.
This model integrates 2 elements for EMI filtering and ESD protection.
Yes, the surface mount flip-chip package design streamlines automated assembly, enhancing production efficiency.
The country of origin for this EMI filter is India.
The EMIF02-USB03F2 belongs to the EMIF02 series from STMicroelectronics.
