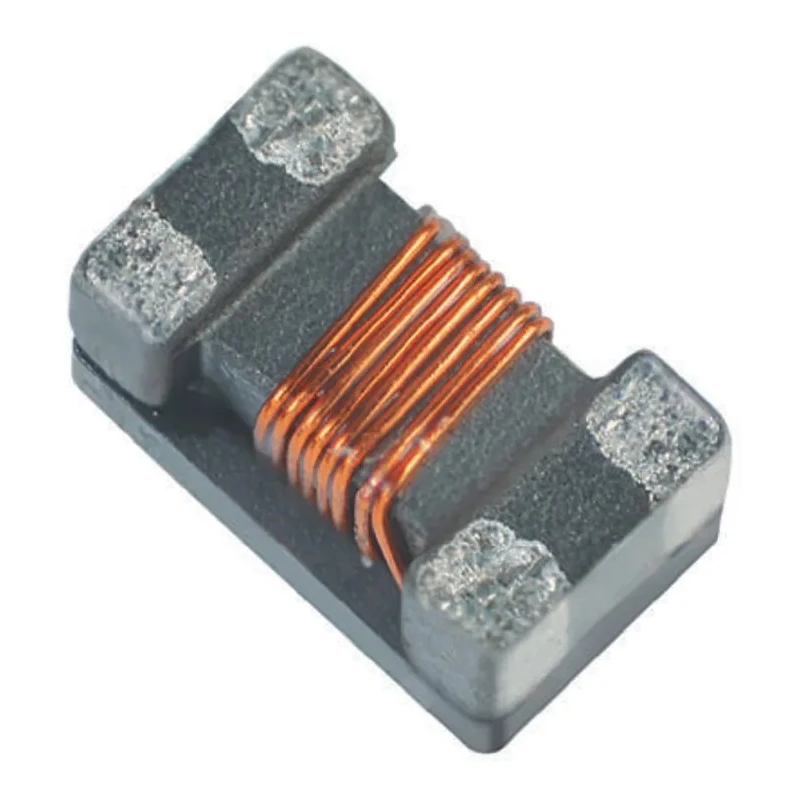

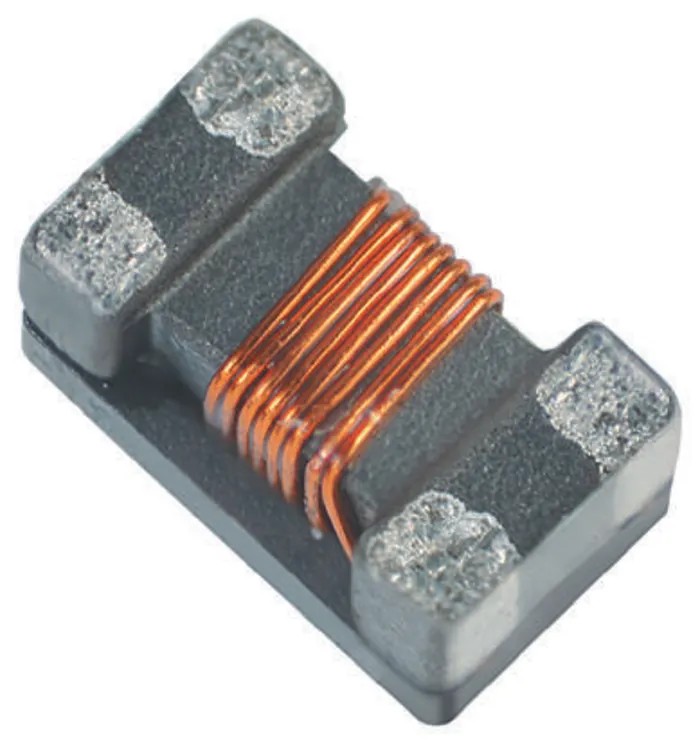

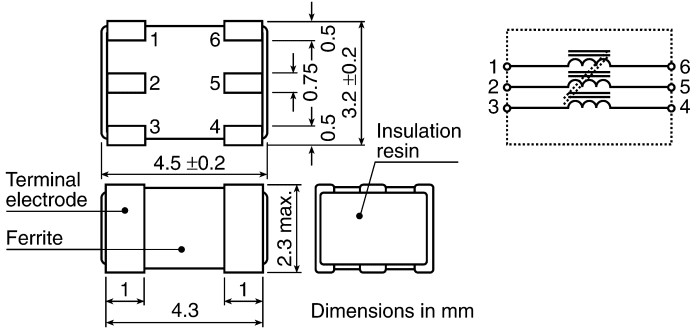

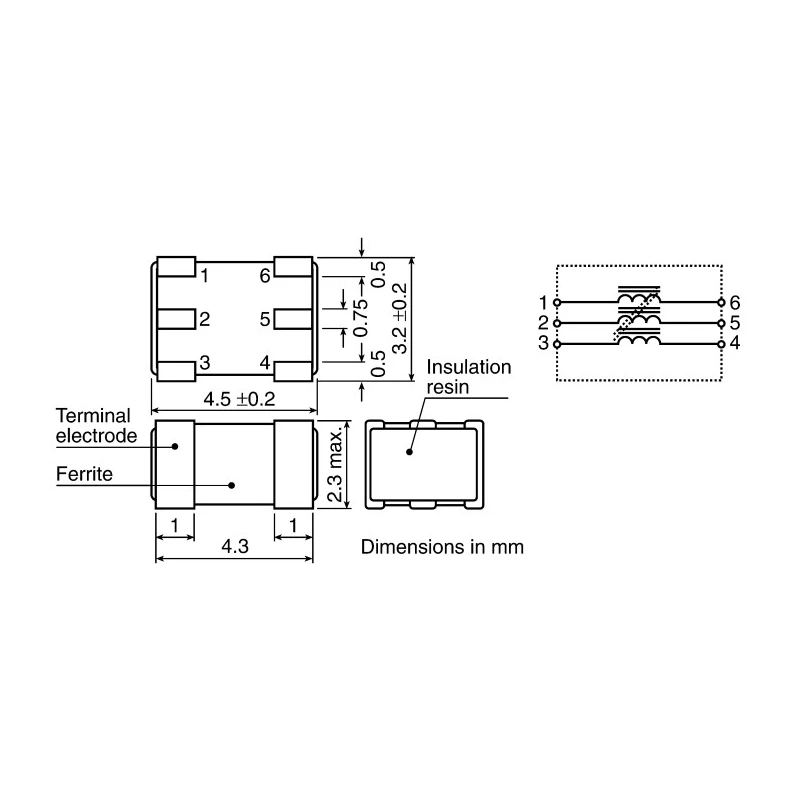

TDK Surface Mount Common Mode Line Filter with Ferrite Core 150 mA Idc ACM2520-801-3P-T

Free Delivery in India | Lowest Global Shipping Charges

TDK Surface Mount Common Mode Line Filter with Ferrite Core 150 mA Idc ACM2520-801-3P-T



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	1.2mm
Length	2.5mm
Model	ACM2520-801-3P-T
Depth	2mm
Packaging	Reel
Series	ACM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	USB and IEEE1394 computer lines, LVDS panel link lines
Core Material	Ferrite
Standards/Approvals	RoHS
Package/Case	2520
Maximum DC Current	150mA
Pin Count	6
Maximum DC Resistance	1.6Ω
Termination Style	Wire
Inductor Construction	Wirewound
ACM Common mode SMD choke, 600OhmBrand	TDK
CHOKE SMD 3 LINE X 0.3RBrand	TDK

Key Features

Compact 2520 package size suitable for surface mount technology.
Maximum DC current rating of 150 mA with low DC resistance of 1.6 ohms.
Wirewound inductor construction with ferrite core for effective noise suppression.
Operating temperature range from -25°C to +85°C for reliability in varied environments.
Suitable for suppressing radiation and common-mode noise in USB, IEEE1394, and LVDS panel link lines.
Complies with RoHS standards ensuring environmental compliance.
Termination style using wire for stable and secure connections.
Available on reel for efficient automated PCB assembly.

Product Description

TDK ACM2520-801-3P-T is a high-performance surface mount common mode line filter featuring a ferrite core and wirewound inductor construction. Designed for a maximum DC current of 150 mA, this compact 2520 case size component provides effective suppression of common-mode noise while maintaining a low differential mode impedance to avoid interference with high-speed signals.

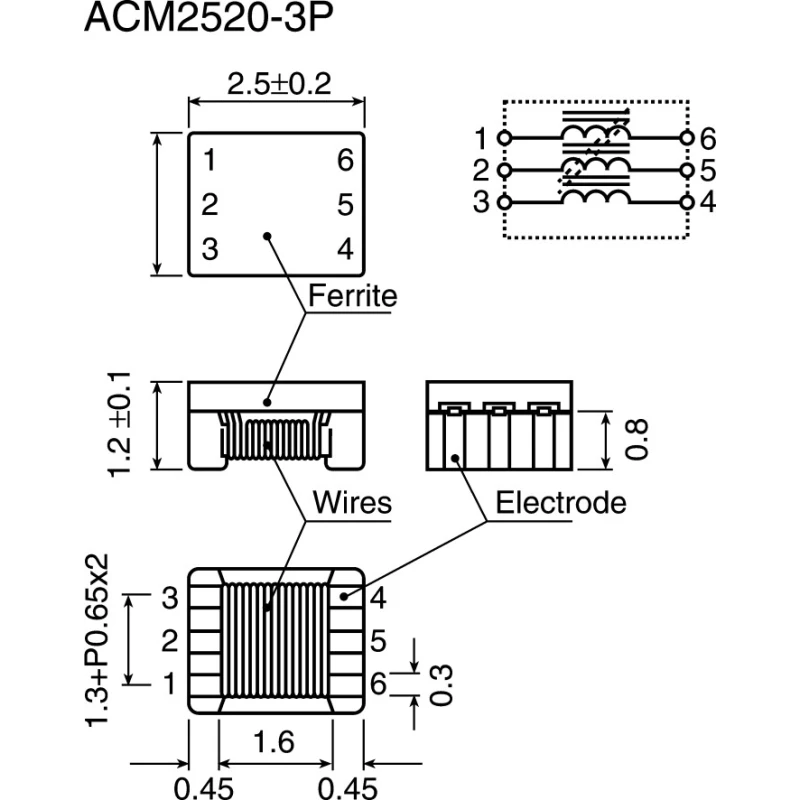

Its small dimensions (2.5mm length, 1.2mm height, and 2mm depth) make it suitable for modern surface mount PCB fabrication processes. The device supports operating temperatures ranging from -25°C to 85°C, ensuring stable performance across diverse industrial and electronic applications.

Typically used in applications such as radiation and noise suppression on USB, IEEE1394 computer lines, and LVDS panel link lines, it is ideal for electronics manufacturing, communications equipment, and digital computing environments requiring EMI/RFI mitigation.

The component is RoHS compliant, confirming that it meets stringent environmental safety standards. The 6-pin device is supplied on reels, facilitating automated insertion into machinery and enhancing production efficiency.

Compact 2520 size suitable for high-density PCB layouts. Ferrite core and wirewound design for effective noise filtration. 150 mA DC current rating with low DC resistance for minimal power loss. Wide temperature range enables use in multiple industrial settings.

Compliant with RoHS for environmental safety. Optimized for USB and IEEE1394 interfaces. Delivered on reel for streamlined manufacturing processes. Ideal for electronics manufacturers and design engineers seeking to integrate reliable noise filters in compact devices.

Explore more Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum DC current rating for the ACM2520-801-3P-T is 150 mA.

This unit operates within a temperature range of -25°C to 85°C.

The dimensions of this model are 2.5 mm in length, 1.2 mm in height, and 2 mm in depth.

It features a wirewound inductor construction with a ferrite core for effective noise suppression.

This model is optimized for USB and IEEE1394 computer lines, as well as LVDS panel link lines.

The ACM2520-801-3P-T is supplied on reels for efficient automated PCB assembly.

The maximum DC resistance is 1.6 ohms.

It complies with RoHS standards, ensuring environmental safety.

This unit has a pin count of 6.

The core material used in this common mode line filter is ferrite.

This model belongs to the ACM series of common mode filters.

It is suitable for applications requiring radiation and noise suppression in electronic devices, particularly in communications equipment and digital computing environments.
