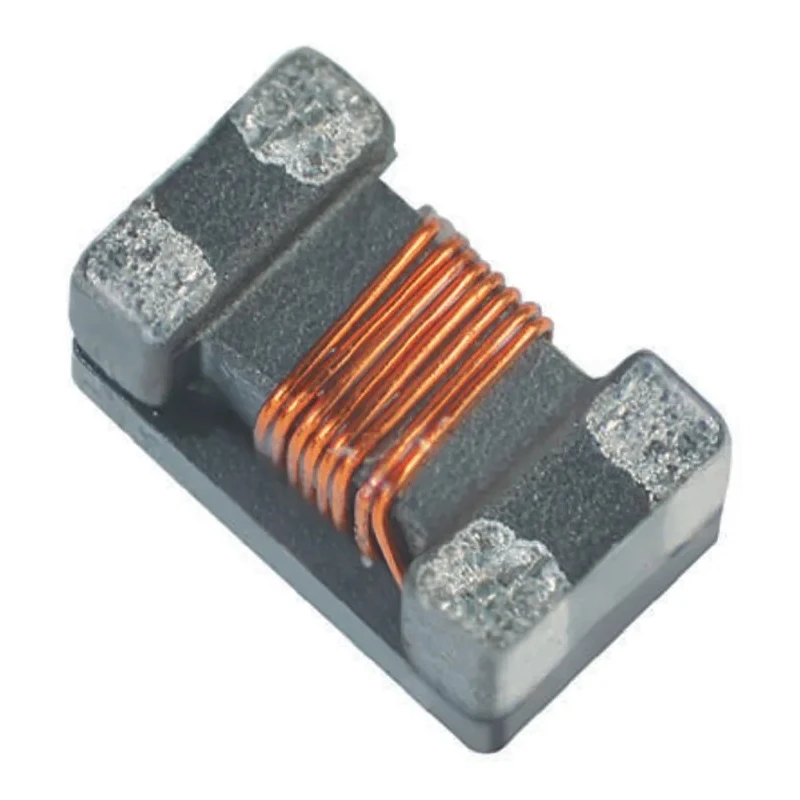

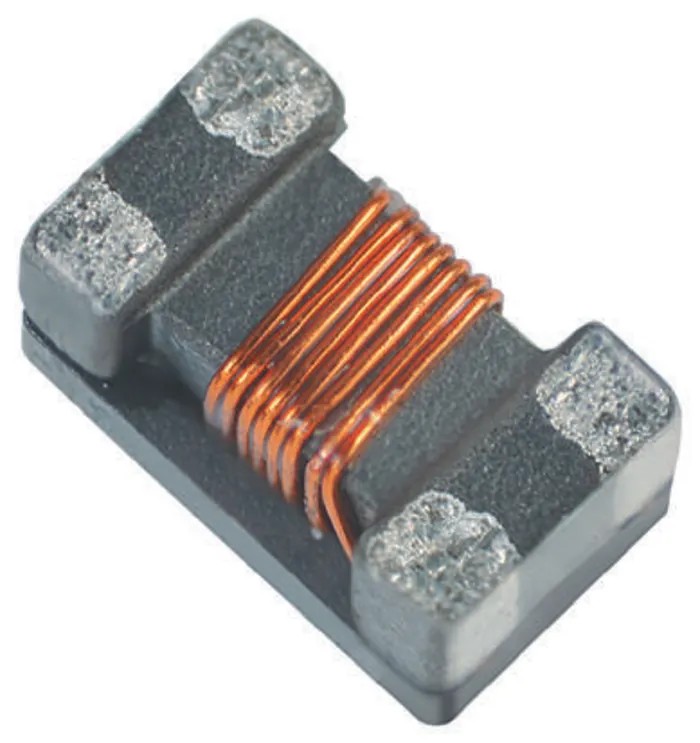

TDK Surface Mount Common Mode Line Filter with Ferrite Core 200 mA Idc, 2520 Package ACM2520

Free Delivery in India | Lowest Global Shipping Charges

TDK Surface Mount Common Mode Line Filter with Ferrite Core 200 mA Idc, 2520 Package ACM2520



Category Surface Mount Inductors Brand TDK Condition New

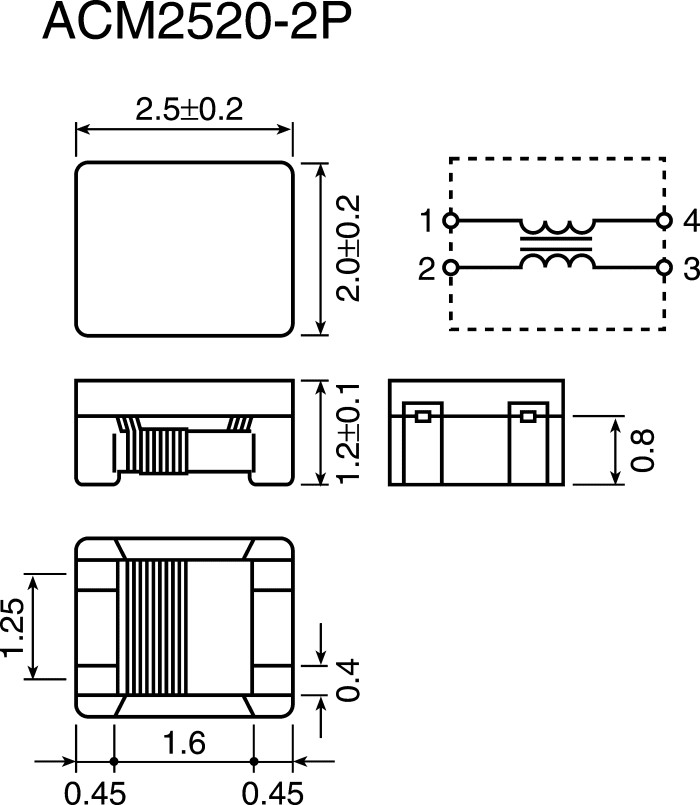

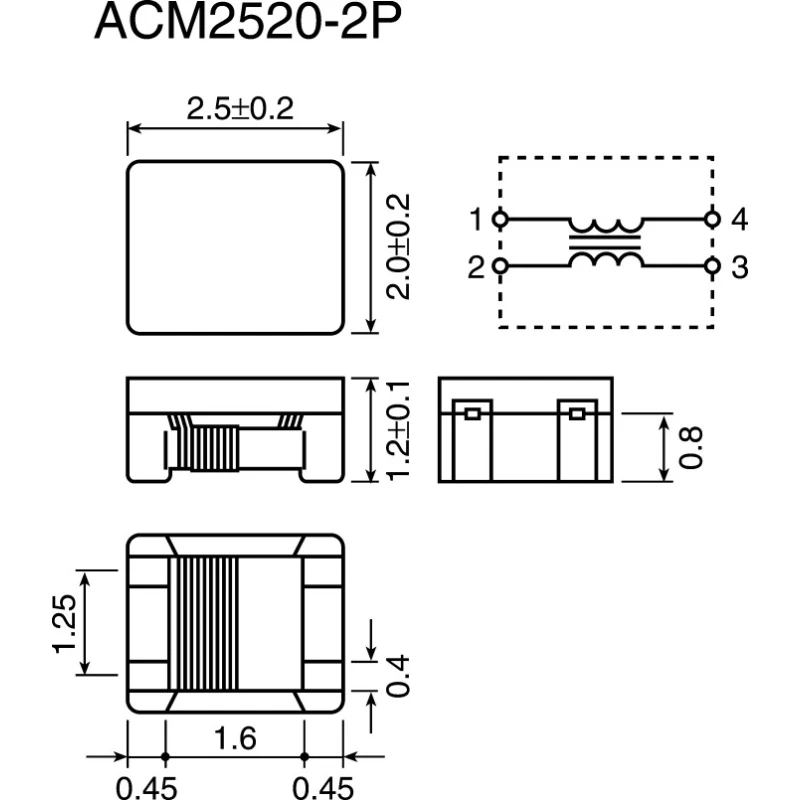

Specifications

Country of Origin	Japan
Brand	TDK
Height	1.2mm
Length	2.5mm
Model	ACM2520
Depth	2mm
Packaging	Reel
Series	ACM2520
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	USB and IEEE1394 computer lines, LVDS panel link lines
Core Material	Ferrite
Standards/Approvals	REACH SVHC-Free, Halogen Free, Lead Free, RoHS
Package/Case	2520
Maximum DC Current	200mA
Pin Count	3
Maximum DC Resistance	900mΩ
Termination Style	Surface Mount
Inductor Construction	Wirewound

Key Features

This filter features a 2520 package size suitable for surface mounting applications.
Designed to handle a maximum DC resistance of 900 milliohms for efficient performance.
Operates reliably within a temperature range of -25°C to 85°C.
The inductor construction is wirewound using ferrite core material ensuring high common-mode impedance.
Includes 3 pins with a height of 1.2 mm and depth of 2 mm for compact PCB integration.
Complies with environmental standards including REACH SVHC-Free, Halogen Free, Lead Free, and RoHS.
Applicable for suppressing radiation and common-mode noise in USB, IEEE1394 computer lines, and LVDS panel link lines.
Supplied in a reel packaging to facilitate automated assembly processes.

Product Description

TDK ACM2520 Surface Mount Common Mode Line Filter is a miniature SMD common-mode wire wound chip filter designed to suppress radiation and common-mode noise efficiently. Featuring a ferrite core, it offers a maximum DC current of 200 mA and a maximum DC resistance of 900 milliohms, ensuring effective electromagnetic interference suppression without affecting high-speed signals.

The compact 2520 package with dimensions of 2.5 mm length, 1.2 mm height, and 2 mm depth enables easy integration on PCB assemblies using surface mount technology. Its three-pin configuration supports versatile circuit designs. This series operates within a temperature range from -25°C to +85°C, making it suitable for a wide range of industrial and commercial electronic applications.

Constructed with wirewound inductors and ferrite core, the ACM2520 line filter provides common-mode impedance exceeding 1000 Ω at 100 MHz, minimizing noise in USB and IEEE1394 computer lines as well as LVDS panel link lines. It complies with global environmental standards including REACH SVHC-Free, Halogen Free, Lead Free, and RoHS, supporting eco-friendly manufacturing requirements.

The product is supplied in reel packaging to aid manufacturing automation and improved production efficiency. It finds applications across electronics manufacturing, industrial equipment, communications, and computing systems requiring reliable electromagnetic interference mitigation.

This filter features a 2520 package size suitable for surface mounting applications. Designed to handle a maximum DC resistance of 900 milliohms for efficient performance. Operates reliably within a temperature range of -25°C to 85°C.

The inductor construction is wirewound using ferrite core material ensuring high common-mode impedance. Includes 3 pins with a height of 1.2 mm and depth of 2 mm for compact PCB integration. Complies with environmental standards including REACH SVHC-Free, Halogen Free, Lead Free, and RoHS.

Applicable for suppressing radiation and common-mode noise in USB, IEEE1394 computer lines, and LVDS panel link lines. Supplied in a reel packaging to facilitate automated assembly processes. Explore the Electronics Components section at EnvMart for more Surface Mount Inductors and filters from trusted manufacturers like TDK.
