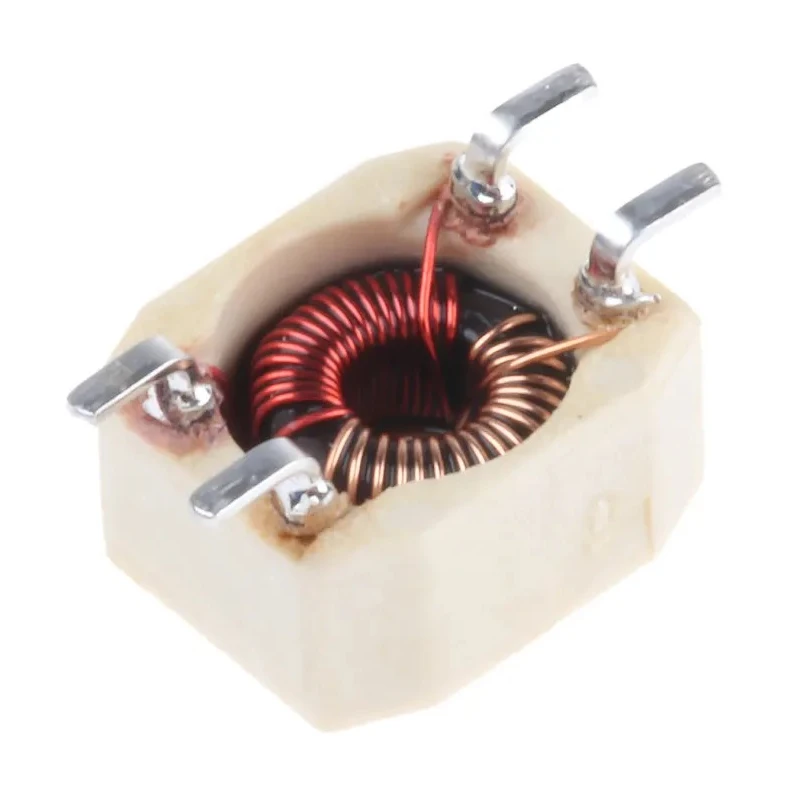

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 51 μH ±30% 800 mA Idc B82793S0513N201

Free Delivery in India | Lowest Global Shipping Charges

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 51 μH ±30% 800 mA Idc B82793S0513N201



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	4.8mm
Length	7.1mm
Model	B82793S0513N201
Depth	6mm
Packaging	Tape & Reel
Series	B82793
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	51μH
Standards/Approvals	RoHS
Maximum DC Current	800mA
Pin Count	2
Maximum DC Resistance	140mΩ
Inductance Tolerance	±30 %
Termination Style	Solder
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

The choke is constructed with a ferrite core and wirewound inductor construction.
It features a solder termination style and a tape & reel packaging method.
Designed to operate between -40°C and 125°C with a maximum DC resistance of 140 mΩ.
Complies with AEC-Q200 automotive standard and RoHS requirements.
Low profile design with dimensions 7.1 mm length, 4.8 mm height, and 6 mm depth for compact mounting.
Ideal for industrial applications requiring suppression of asymmetric and symmetric interference signals.
Flame retardant case to UL 94 V-0 with lead-free tinned terminals.

Product Description

TDK B82793S0513N201 is an unshielded surface mount common mode choke featuring a ferrite core and wirewound inductor construction. It provides an inductance of 51 μH with ±30% tolerance and supports a maximum DC current of 800 mA, suitable for industrial and automotive electronics.

This surface mount choke has a compact size of 7.1 mm length, 4.8 mm height, and 6 mm depth, making it ideal for PCB layouts requiring high component density. The termination style is solder, packaged in tape & reel format to streamline manufacturing processes.

It complies with the AEC-Q200 automotive standard ensuring reliability in harsh environments, and meets RoHS standards for environmental safety. The choke operates reliably across a temperature range of -40°C to 125°C with a low maximum DC resistance of 140 mΩ.

The B82793 series includes variants suitable for suppression of asymmetric and symmetric interference with bifilar and sector winding designs. The B82793S variant, in particular, is optimized for reducing high frequency electromagnetic compatibility (EMC) problems.

Additional features include a flame retardant case rated UL 94 V-0 and lead-free tinned terminals, supporting compliance with safety and environmental regulations. The choke is constructed with a ferrite core and wirewound inductor construction.

It features a solder termination style and a tape & reel packaging method. Designed to operate between -40°C and 125°C with a maximum DC resistance of 140 mΩ. Complies with AEC-Q200 automotive standard and RoHS requirements.

Low profile design with dimensions 7.1 mm length, 4.8 mm height, and 6 mm depth for compact mounting. Ideal for industrial applications requiring suppression of asymmetric and symmetric interference signals. Flame retardant case to UL 94 V-0 with lead-free tinned terminals.

This component is perfect for use in electronics, automotive systems, industrial control circuits, and telecommunications equipment, where electromagnetic interference suppression is critical. It supports enhanced signal integrity and noise reduction.
