TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 1.1 A Idc B82472G4223M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4223M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 200mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded ferrite core enhances electromagnetic compatibility.
- Wirewound construction ensures reliable inductance performance.
- Solder termination style suitable for surface mount PCB assembly.
- RoHS compliant with a maximum operating temperature of 125°C.
- Maximum DC resistance is 200 milliohms ensuring low power loss.
- Packaging in tape and reel format facilitating automated assembly lines.
- Operating temperature range from -55°C to +125°C supports varied environments.
- 2-pin design ideal for automotive and electronic power filtering applications.
Product Description
The TDK B82472G4223M000 is a shielded wirewound surface mount inductor designed with a ferrite core, intended for use in applications such as filtering supply voltages, DC-DC converters, and automotive electronics.
This inductor features magnetically shielded ferrite core construction to reduce electromagnetic interference, with enamel copper wire winding soldered securely to its terminals. It offers an inductance value of 22 μH ±20%, supporting a maximum DC current of 1.1 A with low DC resistance of 200 milliohms, ensuring efficient operation.
The component's dimensions are compact, measuring 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth, optimized for surface mounting with solder termination style. It is RoHS compliant and suitable for operating temperatures between -55°C and 125°C, making it rugged for industrial and automotive uses.
The product is packaged in tape and reel format, allowing integration into automated manufacturing processes and improved production efficiency. Magnetically shielded ferrite core reduces EMI effectively. Wirewound construction provides stable inductance.
Compact surface mount design with solder termination. Suitable for automotive electronic systems and DC-DC converters. RoHS compliant ensuring environmental safety. Wide operating temperature range supports harsh environments.
Low DC resistance minimizes power loss and heat generation. Tape and reel packaging supports efficient assembly processes. Reliable 2-pin configuration for standard PCB layouts.
This TDK surface mount inductor is ideal for use in electronic components sectors including power and connector assemblies in industrial, automotive, manufacturing, and repair applications. Browse our extensive category offerings at EnvMart for compatible electronic components and Inductors from top brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 22 μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.1 A.

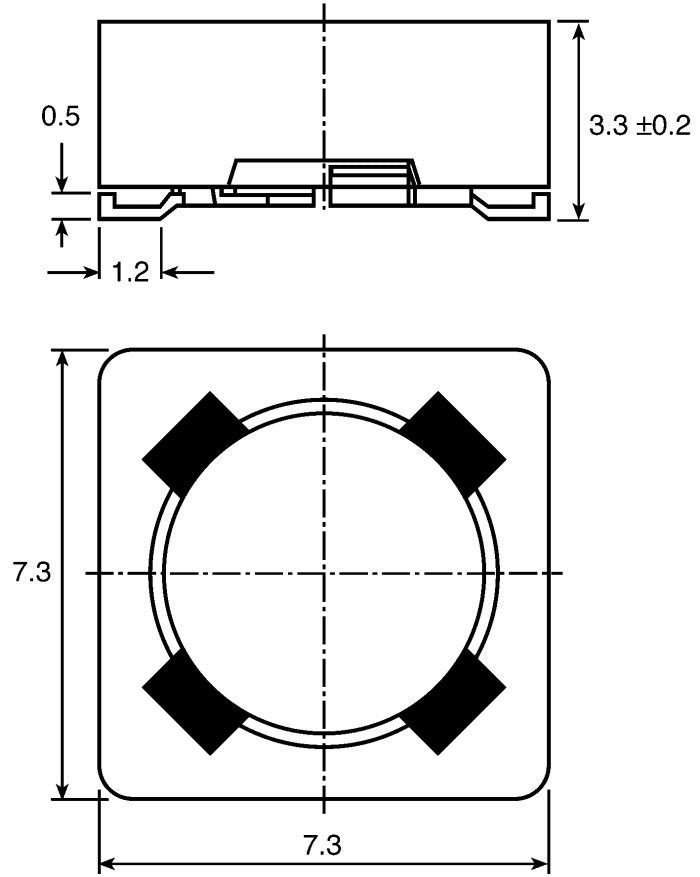

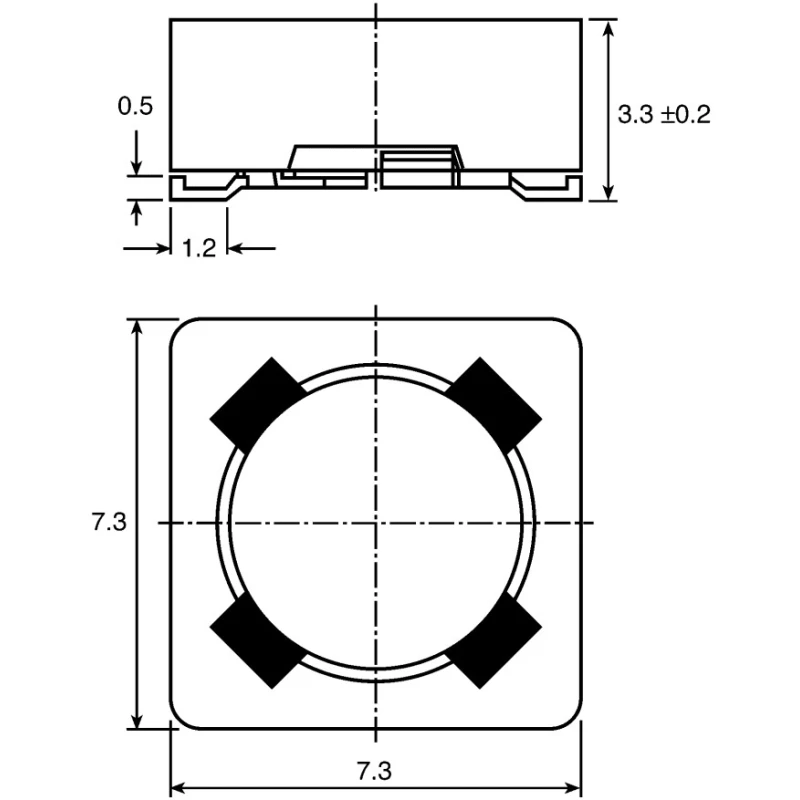

This model measures 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
The maximum operating temperature is 125°C.
It features a ferrite core material, which enhances its performance.
It is packaged in tape and reel format, facilitating automated assembly processes.
The termination style is solder, suitable for surface mount PCB assembly.
The maximum DC resistance is 200 milliohms, ensuring low power loss.
It is typically used in applications such as filtering supply voltages, DC-DC converters, and automotive electronics.
The minimum operating temperature is -55°C, allowing it to function in harsh environments.
This inductor has a 2-pin design, making it compatible with standard PCB layouts.
Yes, the TDK B82472G4223M000 is RoHS compliant, ensuring it meets environmental safety standards.
