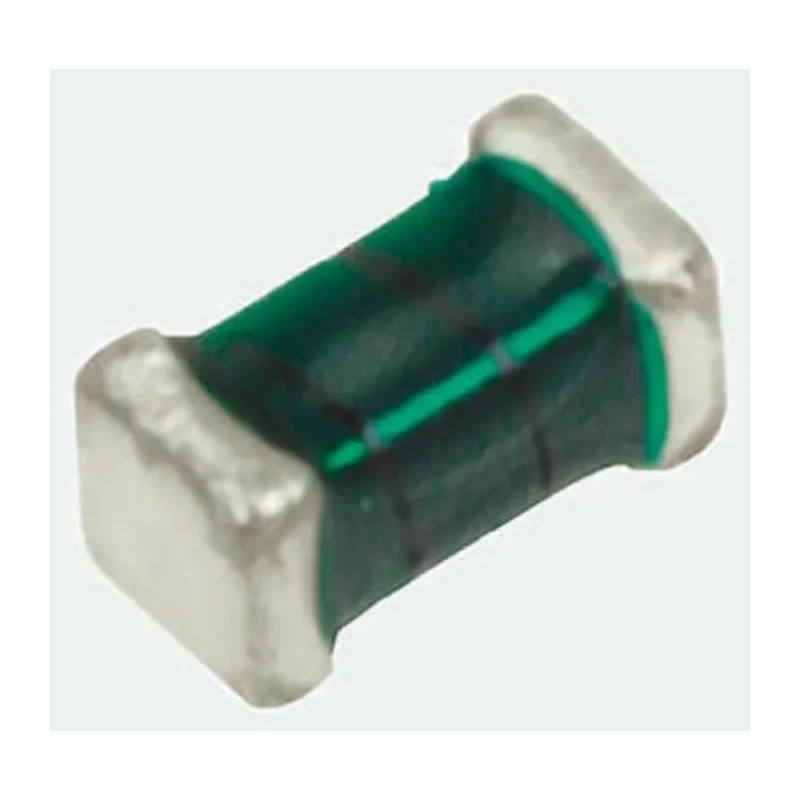

TDK SIMID 0603 Wirewound Surface Mount Inductor with Copper Plated Ceramic Core 2.2 nH ±0.3 nH 1.5 A Idc Q:14 B82496C3229A000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3229A000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 2.2nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±0.3 nH |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0603 (1.6 x 0.8 x 0.8 mm) package size suitable for PCB mounting.
- Copper plated ceramic core enhances mechanical stability and electrical performance.
- High quality factor of 14 ensures efficient inductance.
- Operation temperature range from -55°C to 150°C supports diverse environments.
- Inductor has low resistance of 35 mΩ minimizing power loss.
- Meets AEC-Q200 automotive standard for reliability and quality.
- Maximum self-resonant frequency up to 10 GHz suitable for high-frequency circuits.
- Tape & reel packaging enables easy automated assembly.
Product Description
TDK B82496C3229A000 is a wirewound surface mount inductor from the SIMID series featuring a copper plated ceramic core. It delivers an inductance of 2.2 nH with a tight tolerance of ±0.3 nH, suitable for precision electronic applications requiring stable inductive properties.
The compact 0603 package (1.6 x 0.8 x 0.8 mm) and surface mount termination style facilitate easy integration onto printed circuit boards in various industrial and commercial electronics. Its copper plated ceramic core construction ensures high mechanical stability and reduced electromagnetic interference, while maintaining excellent quality factor at a minimum of 14.
This inductor supports a maximum DC current rating of 1.5 A and has a low maximum DC resistance of 35 mΩ, which helps minimize power losses in power management circuits. It is rated for operation over a broad temperature range from -55°C to 150°C, making it suitable for automotive applications compliant with the AEC-Q200 standard.
The device's high self-resonant frequency of 10 GHz supports high-frequency electronic circuits, including RF and signal filtering. Packaged in tape & reel form, it is optimized for high-volume manufacturing processes.
Typical industrial use cases include power supplies, telecommunications equipment, automotive electronics, and other precision electronic devices requiring compact, robust surface mount inductors.
Compact 0603 package measuring 1.6 x 0.8 x 0.8 mm. Copper plated ceramic core enhances reliability. Maximum DC current rating of 1.5 A. Tight inductance tolerance of ±0.3 nH. Low DC resistance of 35 mΩ reduces power loss.
Operating temperature range from -55°C to 150°C. Compliance with AEC-Q200 automotive standards. High self-resonant frequency up to 10 GHz. Tape & reel packaging for automated PCB assembly. Wirewound construction for stable inductance performance.
Explore more Surface Mount Inductors and related electronic components at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 2.2 nH with a tolerance of ±0.3 nH, making it suitable for precision applications.
It has a maximum DC current rating of 1.5 A, which is essential for ensuring reliable performance in power management circuits.
The inductor comes in a compact 0603 package, measuring 1.6 x 0.8 x 0.8 mm, which facilitates easy mounting on PCBs.
This unit operates over a temperature range from -55°C to 150°C, making it versatile for various environmental conditions.
The inductor supports a maximum self-resonant frequency of up to 10 GHz, suitable for high-frequency applications.
It features a wirewound construction with a copper plated ceramic core, enhancing both mechanical stability and electrical performance.
The maximum DC resistance is 35 mΩ, which helps minimize power loss in electronic circuits.
It meets the AEC-Q200 automotive standard, ensuring reliability and quality for automotive applications.
This model is packaged in tape & reel format, which is optimized for automated assembly processes in high-volume manufacturing.
It has a minimum quality factor of 14, indicating efficient inductance performance.
Typical applications include power supplies, telecommunications equipment, and automotive electronics, where compact inductors are required.
The inductor is manufactured in India, ensuring compliance with specified standards and quality controls.
