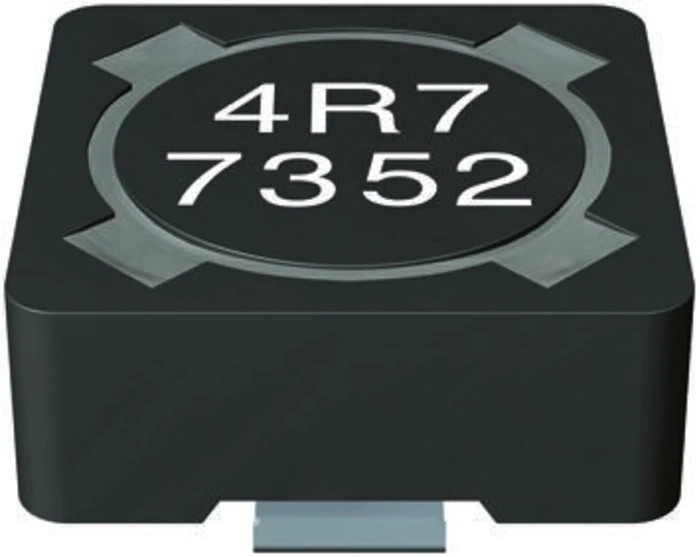

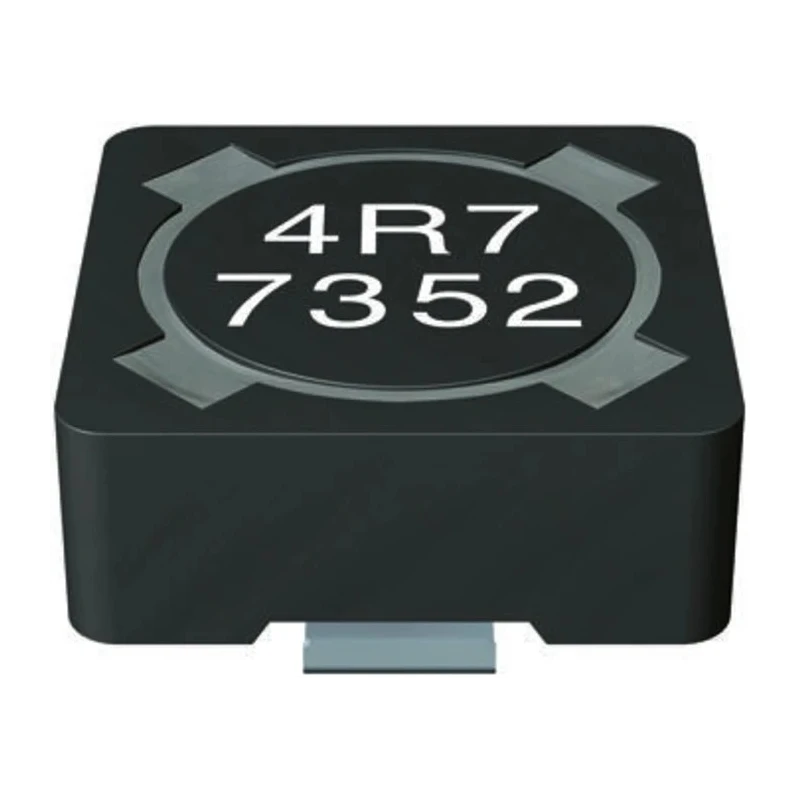

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 μH ±20% 3.45 A Idc B82472G4102M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4102M000 |
| Depth | 7.3mm |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 3.45A |
| Maximum DC Resistance | 18mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Soldered |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features

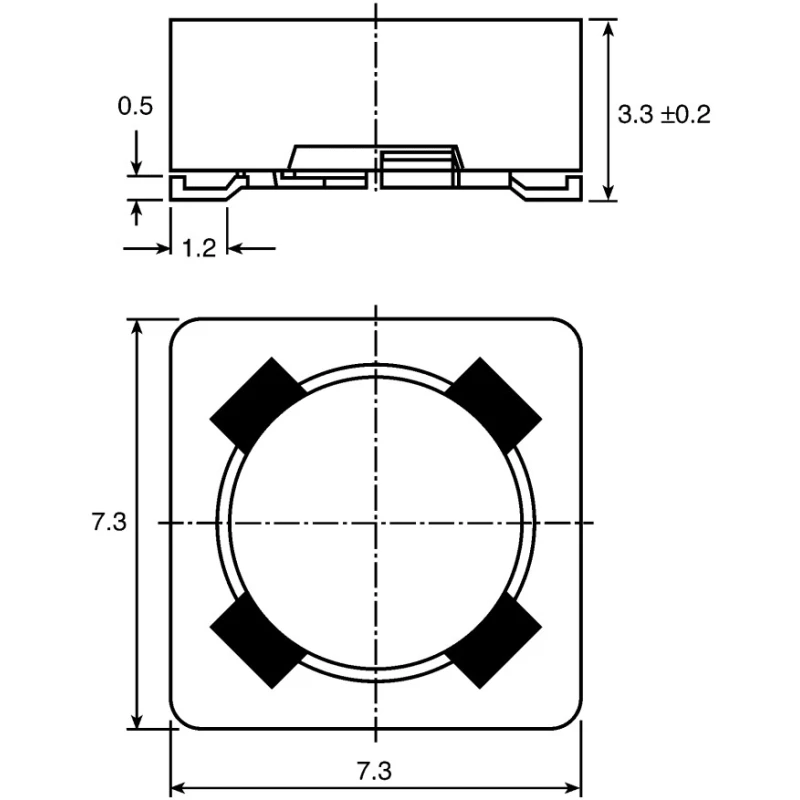

- This inductor has a compact surface mount design with dimensions 7.3 mm length, 3.3 mm height, and 7.3 mm depth.
- It is magnetically shielded and uses a wirewound construction with a ferrite core for reliable performance.
- The device supports automotive standards including AEC-Q200 certification.
- Designed for applications such as filtering supply voltages, DC-DC converters, and automotive electronics.
- Soldered termination style with lead-free tinned terminals ensures robust PCB integration.
- Operates in a temperature range of -55°C to 125°C, suitable for harsh environments.
- The maximum DC resistance is 18 mΩ, minimizing power loss in circuits.
Product Description
TDK B82472G4102M000 is a shielded wirewound Surface Mount Inductor featuring a ferrite core, providing an inductance of 1 μH with ±20% tolerance and capable of handling a maximum DC current of 3.45 A. This component is engineered for critical electronic applications such as supply voltage filtering, DC-DC converters, and automotive electronics where high reliability and compactness are essential.
The inductor utilizes a magnetically shielded ferrite core with enamel copper wire winding, ensuring reduced electromagnetic interference for sensitive circuits. Its surface mount design facilitates easy assembly on printed circuit boards using a soldered termination style with lead-free tinned terminals, complying with environmental standards.
Physical dimensions are precise at 7.3 mm length, 3.3 mm height, and 7.3 mm depth, offering a compact form factor suitable for dense electronic assemblies. The component meets AEC-Q200 automotive certification, endorsing its suitability for harsh automotive operating environments.
Operating temperature ranges from -55°C to 125°C allow use in extreme thermal conditions. With a low maximum DC resistance of 18 mΩ, the inductor minimizes power losses and heats generation in circuits. The B82472-G4 series embodies a robust solution for industrial and automotive electronic designs requiring magnetic shielding and reliable inductance performance.
This inductor offers stable inductance and current handling for electronic component applications. Compact size ensures compatibility with modern PCB layouts in automotive and industrial electronics. Magnetic shielding reduces interference ensuring circuit integrity.
Lead-free soldered termination and RoHS compliance meet environmental and industry standards. Suitable for harsh environments with wide operating temperature and automotive qualification. Explore the wide range of TDK inductors in the EnvMart Electronics Components category for enhanced industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±20%.
The maximum DC current for this inductor is 3.45 A.
The dimensions are 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
The maximum operating temperature is 125°C.
It features a soldered termination style with lead-free tinned terminals for robust PCB integration.
Yes, it meets the AEC-Q200 automotive standard, making it suitable for automotive applications.
The core material is ferrite, which contributes to its magnetic shielding capabilities.
The maximum DC resistance is 18 mΩ, which helps minimize power loss in circuits.
It operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
It is designed for applications such as filtering supply voltages, DC-DC converters, and automotive electronics.
This inductor features a wirewound construction, which enhances its performance in electronic circuits.
Yes, it is RoHS compliant, adhering to environmental standards.
