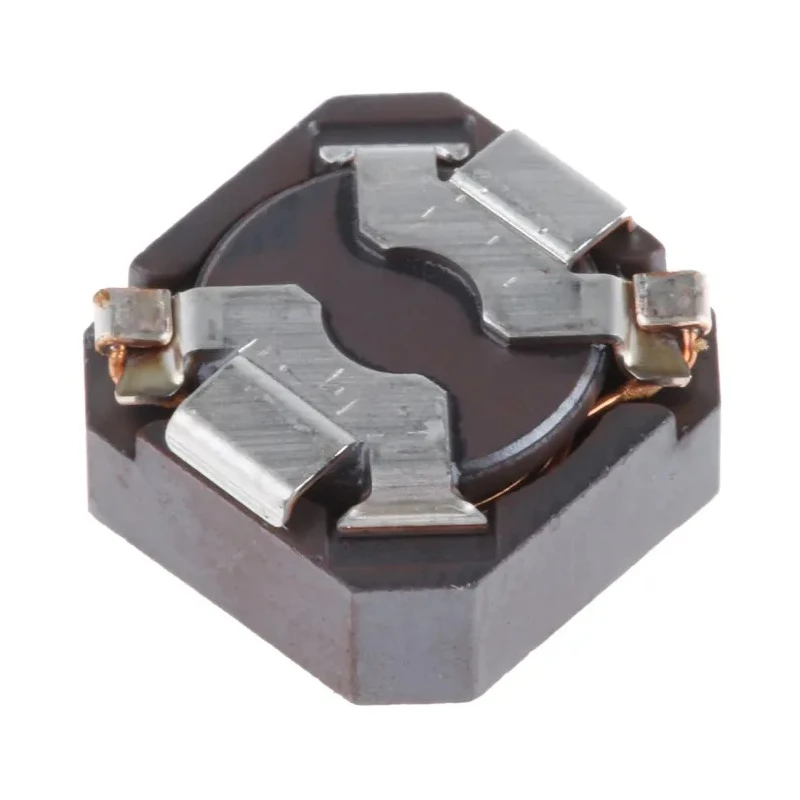

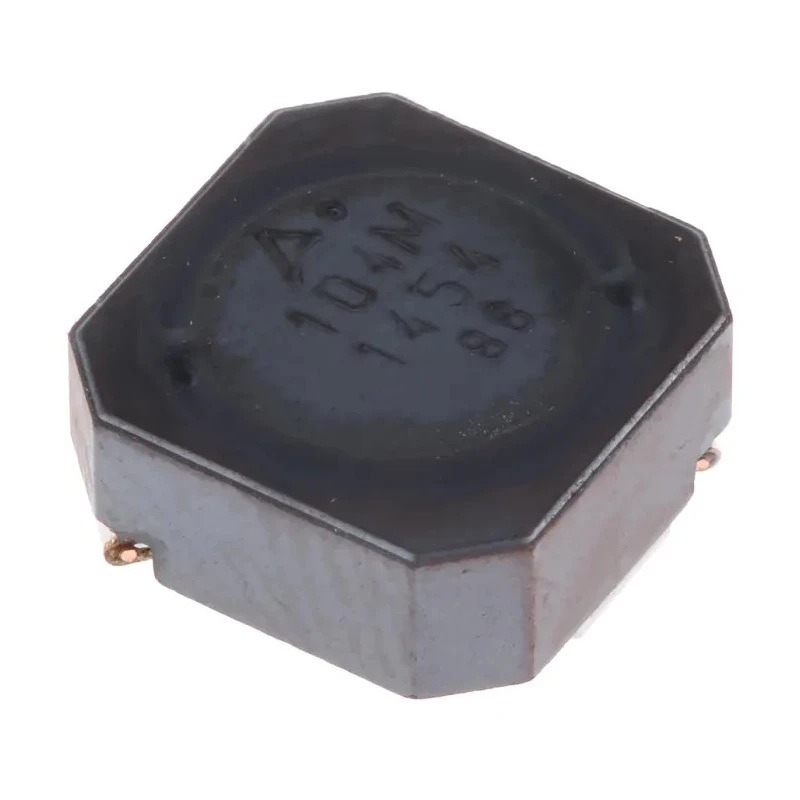

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core, 100μH ±20% Inductance, 1.05A Max DC B82464G4104M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 10.4mm |
| Model | B82464G4104M000 |
| Depth | 10.4mm |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | Qualified to AEC-Q200, JEDEC J-STD 020D, RoHS |
| Maximum DC Current | 1.05A |
| Maximum DC Resistance | 220mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Winding Welded To Terminal |
| Maximum Self Resonant Frequency | 6.5MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This surface mount inductor has magnetic shielding for reduced electromagnetic interference.
- The inductor measures 10.4mm length and depth, with a height of 4.8mm.
- It is constructed with a wirewound design on a ferrite core for high performance.
- Operating temperature ranges from -55°C to 150°C for versatile application.
- Certified to meet AEC-Q200 automotive standards ensuring reliability.
- Maximum DC resistance is 220 milliohms to maintain efficiency.
- Termination style involves winding welded to terminal to ensure robust connections.
- Typical applications include power supply filtering and other electronic component uses.
Product Description
TDK B82464G4104M000 shielded wirewound surface mount inductor is designed with a ferrite core and offers an inductance value of 100μH with ±20% tolerance. It supports a maximum DC current rating of 1.05 A and features magnetic shielding to reduce electromagnetic interference.The inductor measures 10.4mm in length and depth and stands 4.8mm tall, making it suitable for compact PCB designs. Its wirewound construction ensures stable inductance and performance over a wide temperature range from -55°C to 150°C. This product meets stringent AEC-Q200 automotive qualification standards, providing reliability for automotive and industrial electronics applications.
Additional features include a maximum DC resistance of 220 milliohms, which contributes to efficient power handling, and a termination style where winding is welded to terminal to provide secure electrical connections. The maximum self-resonant frequency is 6.5 MHz.This inductor is widely used in filtering power supplies and other circuits requiring stable inductive components with shielding to minimize electromagnetic noise. Its ferrite core construction enhances magnetic properties and reduces core losses.
This inductor is magnetically shielded to minimize interference in sensitive electronic environments. The compact 10.4 x 10.4 x 4.8 mm size allows for space-saving on modern PCBs. Wide operating temperature range supports various industrial and automotive uses.
Wirewound design with ferrite core ensures durability and consistent electrical performance. Certified to AEC-Q200 and JEDEC J-STD 020D standards and RoHS compliant for quality assurance. Low DC resistance improves efficiency in power applications.
Termination with welded winding ensures robust mechanical and electrical durability.
This surface mount inductor is a dependable component for electronic manufacturers working in automotive, industrial, HVAC, power management, and other electronic system sectors. It facilitates efficient filtering and energy storage in compact electronic assemblies.
Browse EnvMart's comprehensive Surface Mount Inductor selection to find the perfect components for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 100μH with a tolerance of ±20%.
It supports a maximum DC current rating of 1.05 A.

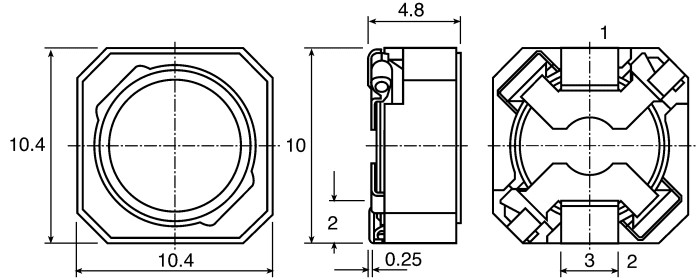

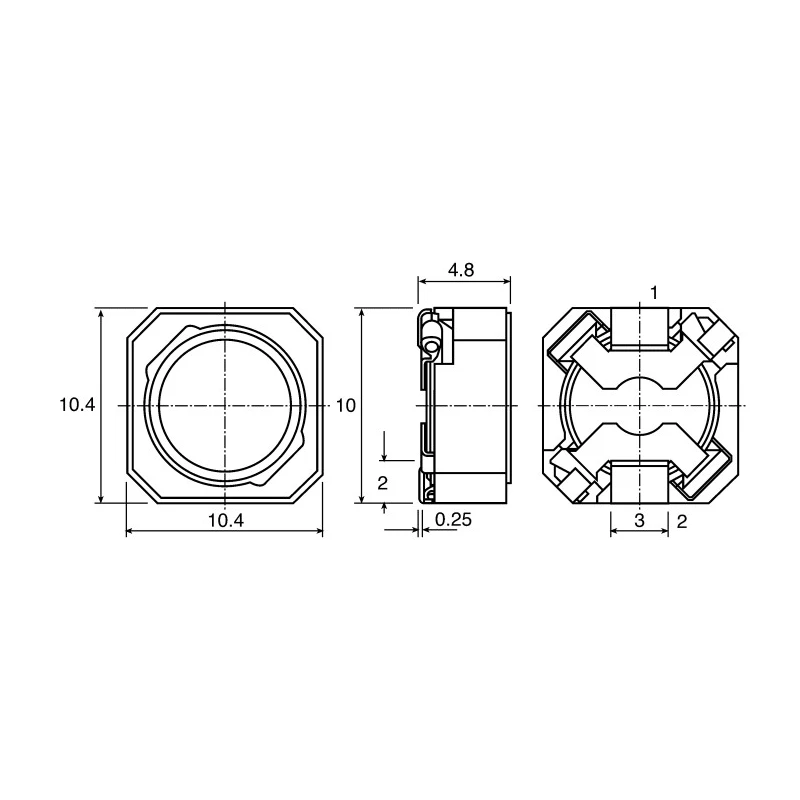

This inductor measures 10.4mm in length, 10.4mm in depth, and 4.8mm in height.
It operates within a temperature range of -55°C to 150°C.
The maximum DC resistance is 220 milliohms.
It is qualified to AEC-Q200, JEDEC J-STD 020D standards, and is RoHS compliant.
The inductor is constructed with a ferrite core.
The termination style involves winding welded to the terminal, ensuring robust connections.
The maximum self-resonant frequency is 6.5 MHz.
Typical applications include power supply filtering and other electronic component uses.
It features a wirewound construction for stable inductance and performance.
The country of origin for this inductor is India.
