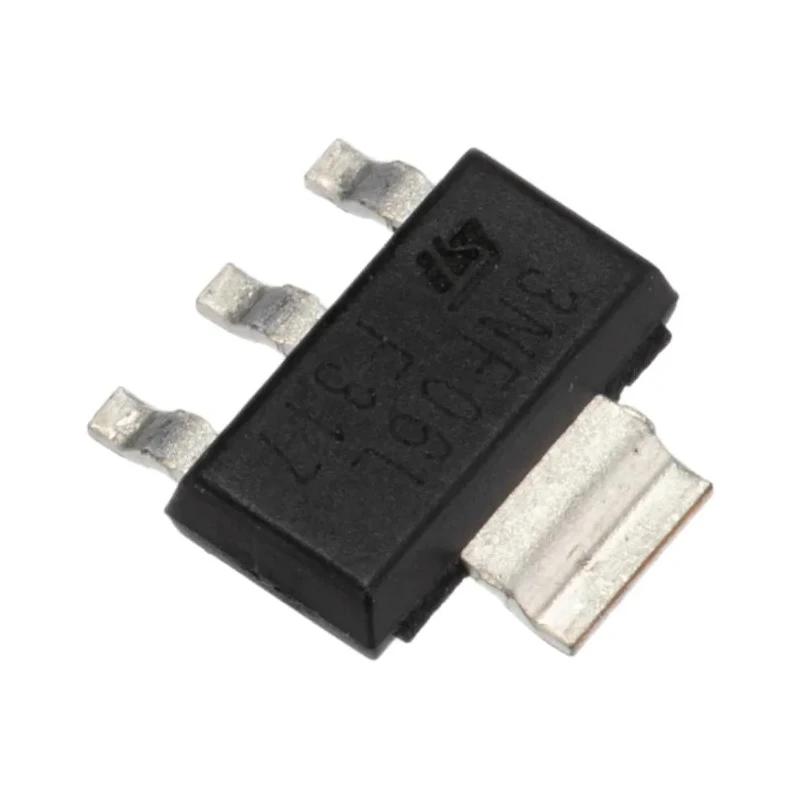

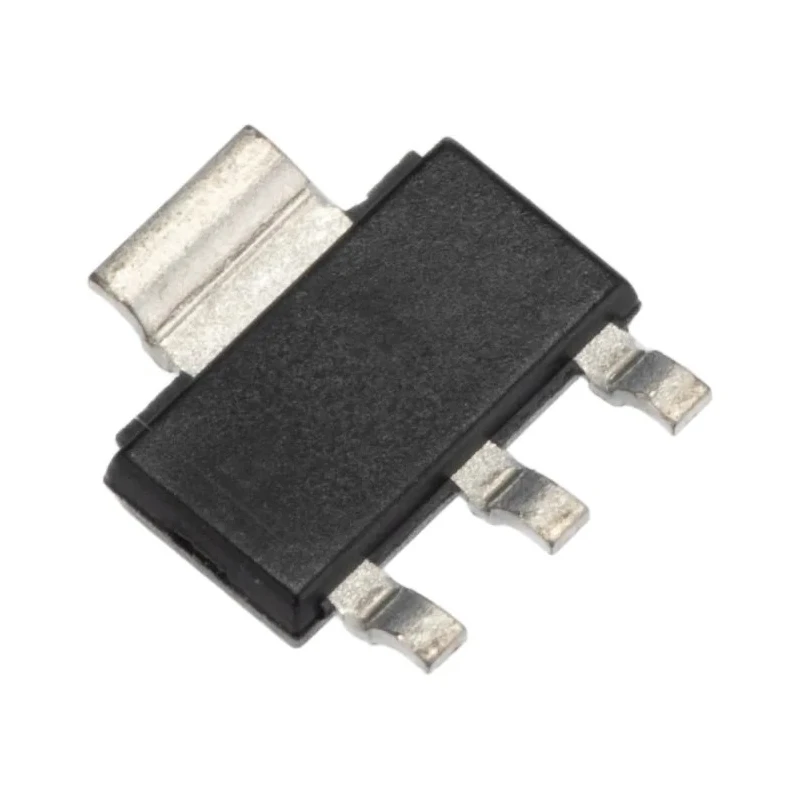

STMicroelectronics STripFET N-Channel MOSFET, 4 A, 60 V, 3.3 W, 4-Pin SOT-223 Package STN3NF06L
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.8mm |
| Length | 6.5mm |
| Model | STN3NF06L |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | STripFET |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 4A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 100mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 3.3W |
| Typical Gate Charge Qg @ Vgs | 7nC |
| Maximum Gate Source Voltage Vgs | -16, +16V |
| Forward Voltage Vf | 1.5V |
Key Features
- Maximum continuous drain current of 4 amperes.
- Maximum drain-source voltage rated at 60 volts.
- Surface mount SOT-223 package with 4 pins for easy PCB integration.
- Enhancement mode with 100 milliohm maximum drain-source resistance.
- Typical gate charge of 7 nC at Vgs.
- Maximum power dissipation of 3.3 watts for efficient heat management.
- Operating temperature range from -55°C to 150°C suitable for industrial applications.
- Maximum gate-source voltage of ±16 volts for robust switching.
Product Description
STMicroelectronics STN3NF06L is a high-performance STripFET N-Channel MOSFET designed for reliable switching and amplification applications. It features a maximum continuous drain current of 4 A and a drain-source voltage rating of 60 V, providing robust handling of moderate current and voltage loads.
This MOSFET is packaged in a compact 4-pin SOT-223 surface mount package, enabling easy integration into printed circuit boards for industrial and commercial electronics.
It operates in enhancement mode with a low maximum drain-source resistance of 100 mΩ, ensuring efficient conduction and minimal power loss. The device exhibits a typical gate charge of 7 nC at Vgs, aiding fast switching performance in power control circuits.
The maximum power dissipation is 3.3 W, which supports effective thermal management in various environments. Operating temperature ranges from -55°C to 150°C allow for wide industrial and automotive application compatibility.
The maximum gate-source voltage is ±16 V, providing gate protection and durability. The unit's dimensions (Height 1.8 mm, Length 6.5 mm, Width 3.5 mm) make it suitable for compact electronics assemblies.
Applications include power management, motor drives, power supplies, and other switching circuits in industrial, automotive, and consumer electronics sectors. Maximum continuous drain current of 4 amperes. Maximum drain-source voltage rated at 60 volts.
Surface mount SOT-223 package with 4 pins for easy PCB integration. Enhancement mode with 100 milliohm maximum drain-source resistance. Typical gate charge of 7 nC at Vgs. Maximum power dissipation of 3.3 watts. Operating temperature range from -55°C to 150°C.
Maximum gate-source voltage of ±16 volts. Compact dimensions: Height 1.8 mm, Length 6.5 mm, Width 3.5 mm. Reliable performance in power switching and amplification. Explore the STMicroelectronics range on EnvMart for high-quality semiconductor devices suitable for diverse industrial and electronic design needs.
Explore more products in our MOSFETs category.
