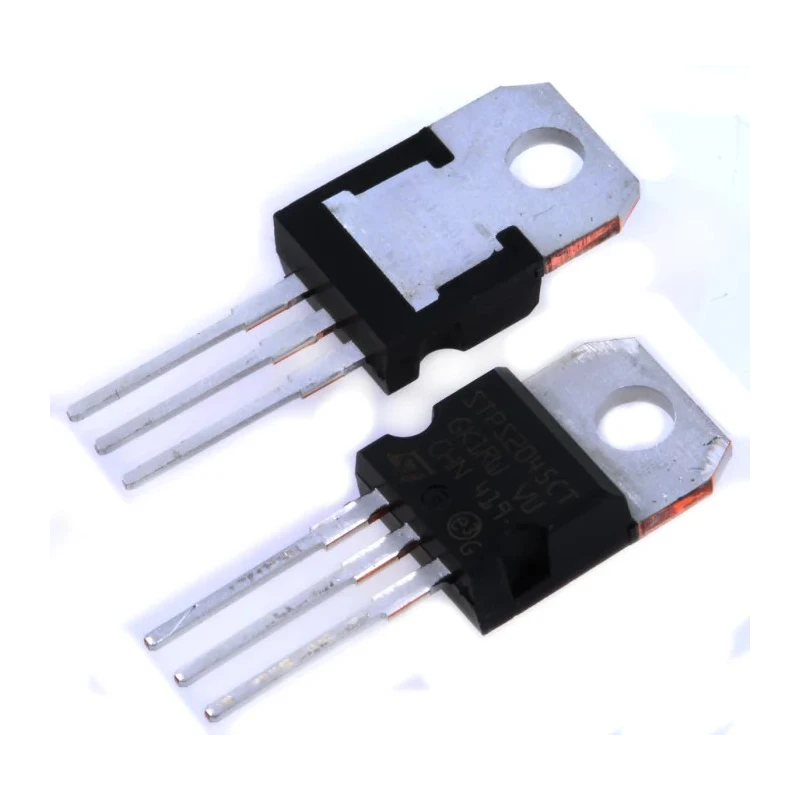

STMicroelectronics 45 V 10 A Schottky Diode 3-Pin Through Hole TO-220AB STPS2045CT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | STPS2045CT |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPS2045C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.5V |
| STMicroelectronics 45V 10A, Dual Schottky Diode, 3-Pin TO-220AB STPS2045CTBrand | STMicroelectronics |
Key Features
- Maximum continuous forward current of 10 A for robust power handling.
- Peak reverse repetitive voltage rating of 45 V ensures reliability under voltage stress.
- Low forward voltage drop of 0.5 V improves energy efficiency.
- Peak non-repetitive forward surge current of 180 A for transient overload capacity.
- Compact TO-220AB package with dimensions 10.4 mm length, 9.15 mm height, and 4.6 mm width.
- Operating temperature range from -65°C to 175°C suitable for varied environments.
- Common cathode diode configuration with 3 pins for easy mounting.
- Through hole mount type for secure PCB installation.
Product Description
STMicroelectronics STPS2045CT is a high-performance Schottky diode offering 45 V peak reverse voltage and a maximum continuous forward current of 10 A. Housed in a robust TO-220AB 3-pin through hole package, it is designed for power rectification in electronic circuits where low forward voltage drop and fast switching are critical.
This diode features a peak non-repetitive forward surge current rating of 180 A, enabling it to handle transient overloads effectively. Its low forward voltage of 0.5 V ensures energy efficient operation in power supplies, automotive electronics, and industrial electronics applications.
The device operates reliably over a temperature range from -65°C to 175°C, making it suitable for harsh operating conditions. The common cathode configuration and three-pin layout allow straightforward integration on printed circuit boards with through hole mounting.
Typical uses include power rectification in electronic power supplies, voltage clamping, and protection circuits in industrial, automotive, and electronic manufacturing sectors. Its TO-220AB package facilitates heat dissipation and mounting convenience.
Maximum continuous forward current of 10 A for robust power handling. Peak reverse repetitive voltage rating of 45 V ensures reliability under voltage stress. Low forward voltage drop of 0.5 V improves energy efficiency.
Peak non-repetitive forward surge current of 180 A for transient overload capacity. Compact TO-220AB package with dimensions 10.4 mm length, 9.15 mm height, and 4.6 mm width. Operating temperature range from -65°C to 175°C suitable for varied environments.
Common cathode diode configuration with 3 pins for easy mounting. Through hole mount type for secure PCB installation.
STMicroelectronics provides quality semiconductor components trusted in industrial, automotive, and electronic component manufacturing fields. Discover more Schottky diode products in the Semiconductor Schottky Diodes category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 10 A, allowing for robust power handling in various applications.
This diode has a peak reverse repetitive voltage rating of 45 V, ensuring reliability under voltage stress.
The forward voltage drop of this diode is 0.5 V, which improves energy efficiency in power applications.
It has a peak non-repetitive forward surge current rating of 180 A, enabling it to handle transient overloads effectively.
The TO-220AB package has dimensions of 10.4 mm in length, 9.15 mm in height, and 4.6 mm in width.
The operating temperature range for this model is from -65°C to 175°C, making it suitable for varied environments.
This model features a common cathode diode configuration, which simplifies integration into circuits.
The STPS2045CT has a 3-pin layout, facilitating easy mounting on printed circuit boards.
It is a Schottky rectifier, which is known for its low forward voltage drop and fast switching capabilities.
The peak reverse current rating for this diode is 100 μA, indicating its performance under reverse voltage conditions.
This diode is suitable for power rectification in electronic power supplies, voltage clamping, and protection circuits in various sectors.
The mounting type of this model is through hole, ensuring secure installation on PCBs.
