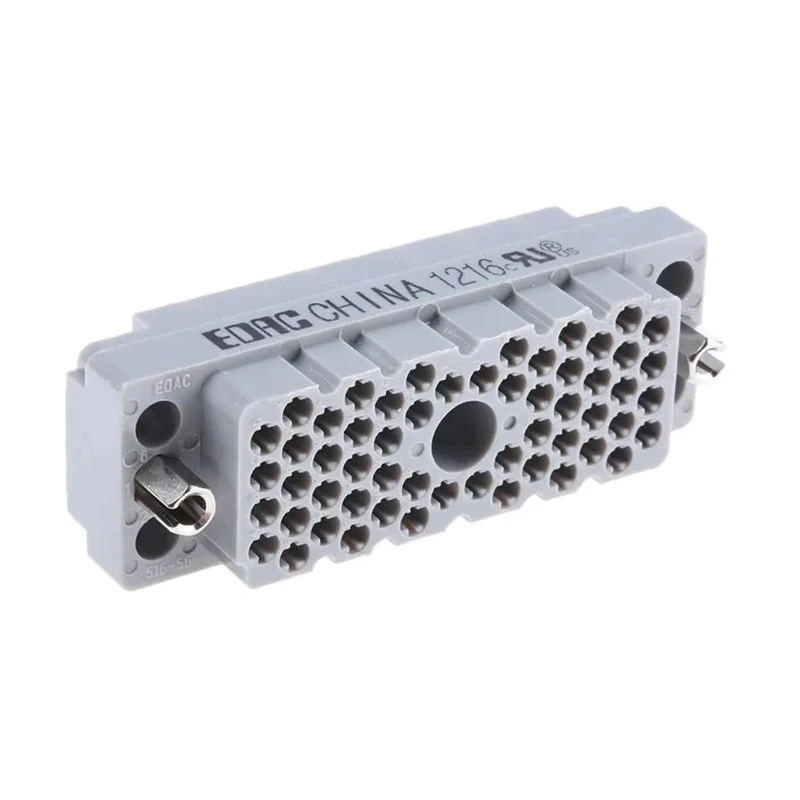

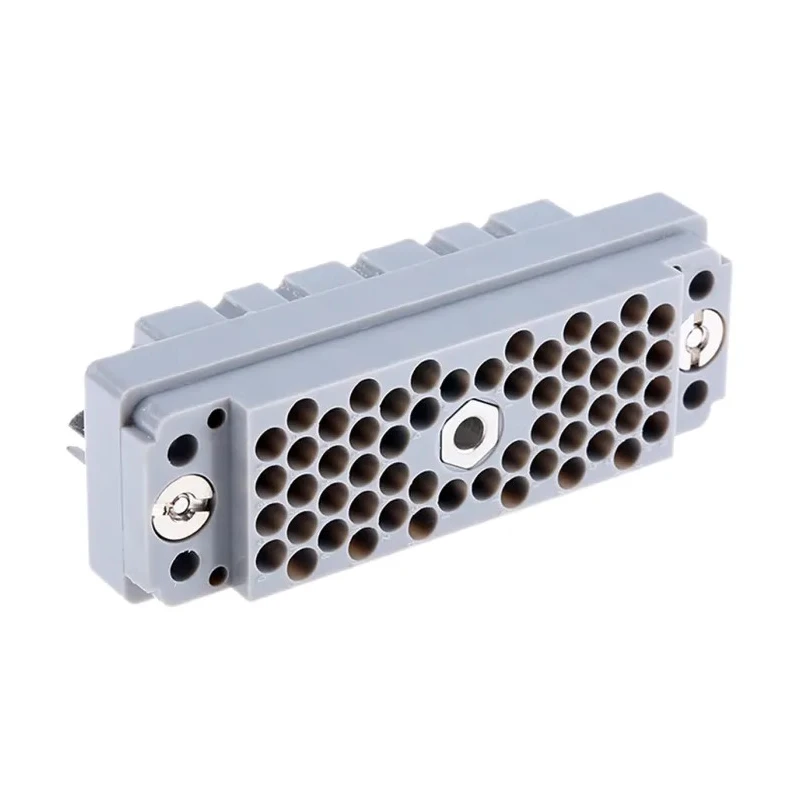

EDAC 56 Way Straight Female D-Sub Connector Crimp Termination Phosphor Bronze Gold Plated 516-056-000-402
Specifications
| Country of Origin | China |
|---|---|
| Brand | EDAC |
| Orientation | Straight |
| Current | 8.5A |
| Contact Material | Phosphor Bronze |
| Series | 516 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 56 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Features 56 contacts for high pin count applications.
- Designed for crimp termination with female connector gender.
- Constructed with phosphor bronze contact material plated in gold for durability and conductivity.
- Operates safely from -65°C to 105°C temperature range.
- Rated for 8.5A current with 2000Vrms voltage endurance.
- Utilizes a straight orientation and 516 series connector housing.
- Suitable for rack and panel receptacle applications with actuating screw connection.
- Ideal for industrial, automotive, broadcast, railway signalling, and oil & gas control systems.
Product Description
EDAC 516-056-000-402 is a 56 Way Straight Female D-Sub Connector designed for demanding electrical interconnects requiring high reliability and secure connections. It features gold-plated phosphor bronze contacts that ensure excellent conductivity and resistance to corrosion, supporting a current rating of 8.5A and voltage endurance up to 2000Vrms.
The connector supports crimp termination and is designed with a straight orientation, female contact gender, and is part of the EDAC 516 series known for precision and durability. It is suitable for use in rack and panel receptacles and incorporates an actuating screw mechanism to ensure firm mating with corresponding connectors.
Operating reliably between -65°C to 105°C, this female D-Sub connector is ideal for industrial and commercial applications such as audio broadcast equipment, railway signalling systems, oil and gas industry control instrumentation, automotive control and testing setups, and general industrial automation where multi-pin cable to panel or cable to cable connections are needed.
The connector’s hermaphroditic metal-to-metal contact design and polarized moldings prevent incorrect mating and promote secure electrical contacts. Contacts fit both plug and socket arrangements, enabling flexible system designs.
Features 56 contacts for high-density connections. Phosphor bronze contacts plated with gold for robustness and enhanced conductivity. Operates safely in extreme temperature ranges from -65°C to +105°C. Supports current ratings up to 8.5 Amperes and voltage withstand of 2000Vrms.
Crimp termination type for reliable cable attachment. EDAC 516 series rack and panel mounting design with actuating screws for secure locking. Widely used in industrial, transportation, broadcast, and oil & gas control systems for ultra-reliable connections.
This connector leverages EDAC’s extensive experience in multi-pole connector design, ensuring excellent performance in safety-critical and precision applications. It is manufactured in China and supplied as a brand new component ready for integration into electrical assemblies.
Explore full range of D-Sub Connectors and components at EnvMart for comprehensive industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 8.5A.
It is rated for a voltage endurance of up to 2000Vrms.
It operates reliably in a temperature range from -65°C to 105°C.
This unit utilizes a crimp termination type for reliable cable attachment.
It features 56 contacts, making it suitable for high-density connections.
The contacts are made of phosphor bronze and are gold plated for enhanced conductivity.
This connector has a straight orientation.
It is ideal for industrial, automotive, broadcast, railway signalling, and oil & gas control systems.
The connector gender is female, designed for use with female contacts.
It is manufactured in China.
Yes, it incorporates hermaphroditic metal-to-metal contact design and polarized moldings to prevent incorrect mating.
This model is part of the EDAC 516 series, known for its precision and durability.
