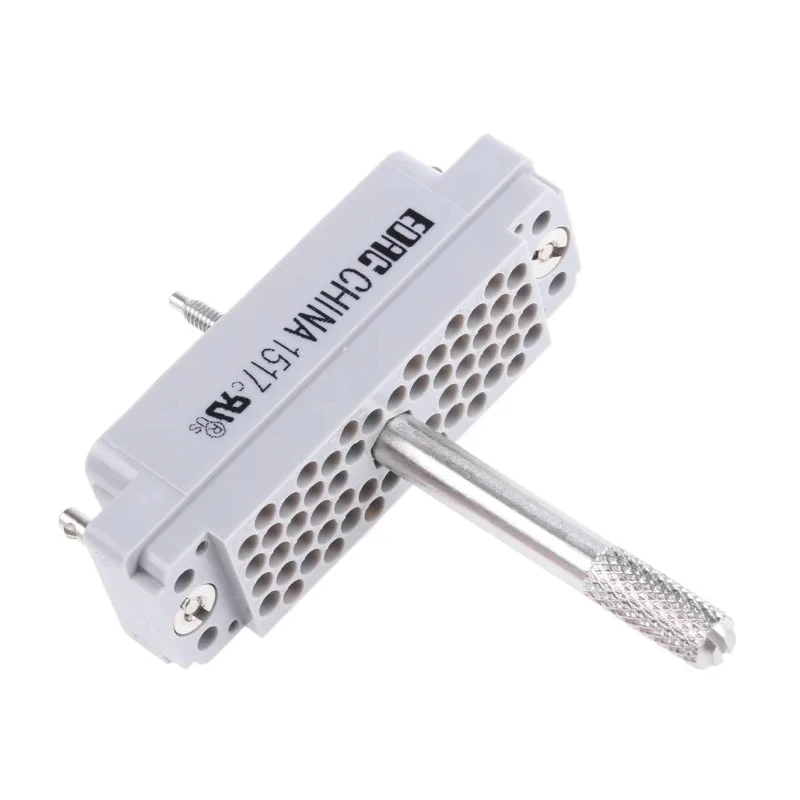

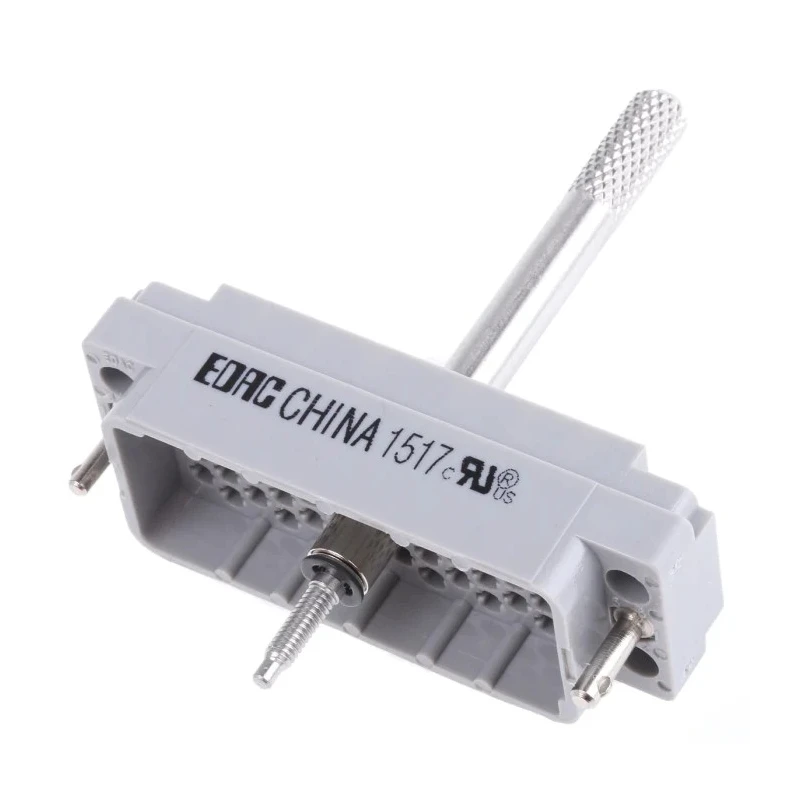

EDAC Heavy Duty Power Connector 56 Way Straight D-Sub Connector Male 8.5A 2000Vrms 516-056-000-301
Specifications
| Country of Origin | India |
|---|---|
| Brand | EDAC |
| Orientation | Straight |
| Current | 8.5A |
| Contact Material | Phosphor Bronze |
| Series | 516 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 56 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- This connector features 56 crimp termination contacts made from gold-plated phosphor bronze for durability.
- It supports a current rating of 8.5A and voltage up to 2000Vrms for robust power handling.
- The housing is made of polycarbonate ensuring insulation and mechanical protection.
- Operating temperature ranges from -65°C to 105°C suitable for demanding environments.
- The connector uses a hermaphroditic metal-to-metal contact design for flexible connector assembly.
- Suitable for industrial, railway signalling, automotive control, and oil and gas control systems.
- Security and reliability in connection are guaranteed by its heavy-duty design.
- Crimp, solder, and wire wrap contacts are compatible but sold separately.
Product Description
EDAC 516-056-000-301 Heavy Duty Power Connector is a 56 Way Straight D-Sub Connector Male designed for secure and reliable power connections.
Constructed with gold-plated phosphor bronze contacts, it supports a maximum current of 8.5A and withstands voltages up to 2000Vrms. The connector housing is made from durable polycarbonate material providing excellent insulation and mechanical protection.
Operating efficiently in temperature ranges from -65°C to 105°C, this connector is engineered to perform in challenging industrial environments including railway signalling, automotive control systems, oil and gas industry controls, and general industrial applications.
The hermaphroditic metal-to-metal contact system allows versatile mating options between plugs and receptacles, enabling designers flexibility in system assembly. Crimp termination pins are used for reliable and secure electrical connections, enhancing safety and minimizing connection failures.
This product comes with 56 contacts designed to fit tightly into their plugs and sockets, ensuring excellent conductivity and minimal signal loss. The connector is ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 compliant, ensuring adherence to safety and electrostatic discharge standards.
56 gold-plated phosphor bronze crimp contacts for secure termination. Current rating of 8.5A and voltage rating of 2000Vrms. Operating temperature from -65°C to 105°C suitable for extreme conditions. Polycarbonate housing offers strong insulation and mechanical protection.
Hermaphroditic metal-to-metal contact design for flexible system configurations. Applications include industrial, automotive, railway signalling and oil and gas control systems. Compatible with solder, crimp, and wire wrap contacts sold separately.
Select from EnvMart’s comprehensive range of D-Sub Connectors and explore EDAC’s high-quality industrial power connectors for your technical and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 8.5A.
It can withstand voltages up to 2000Vrms.
The contacts are made from gold-plated phosphor bronze, providing durability and excellent conductivity.
The operating temperature ranges from -65°C to 105°C, making it suitable for extreme conditions.
This model uses crimp termination for secure electrical connections.
It features 56 contacts designed for reliable connections.
It is compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
The connector is designed with a straight orientation.
It is suitable for industrial, railway signalling, automotive control, and oil and gas control systems.
The housing is made from polycarbonate, providing strong insulation and mechanical protection.
Yes, it is compatible with crimp, solder, and wire wrap contacts, although these are sold separately.
This connector is a male connector, designed for secure mating with female counterparts.
