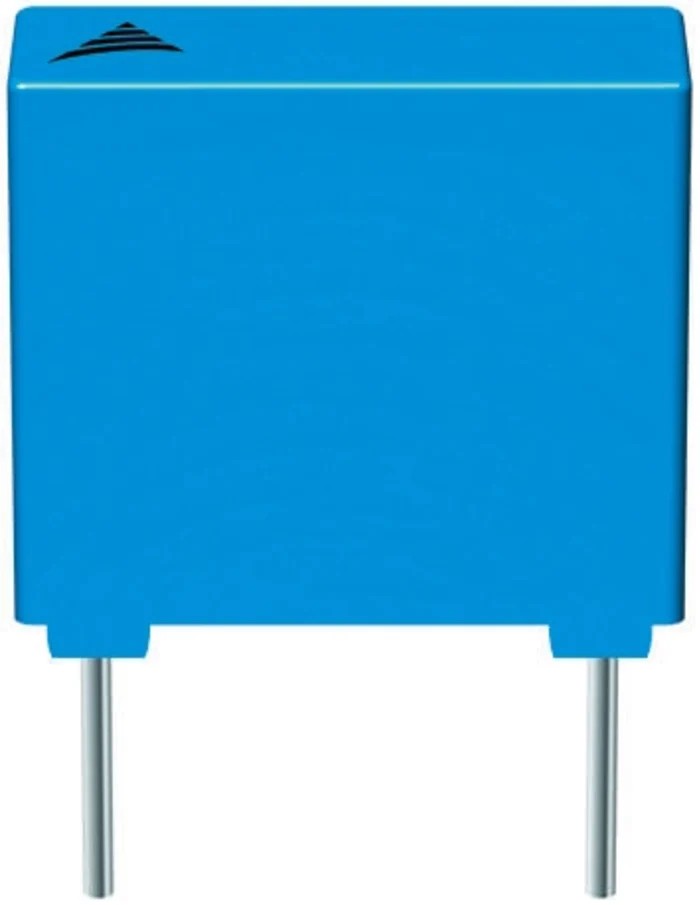

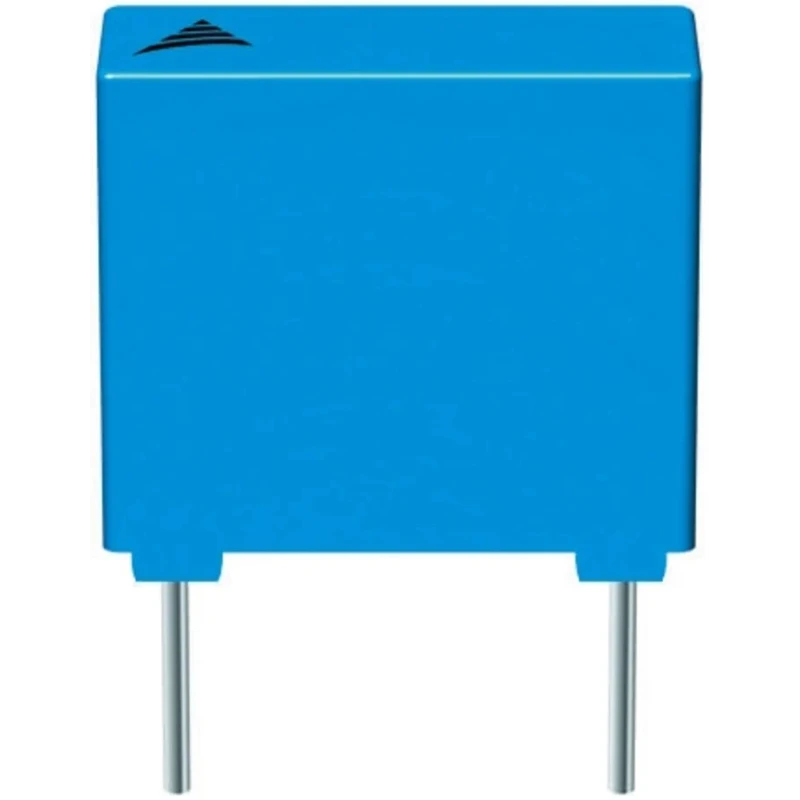

TDK Film Capacitor 220 nF 300V AC 300 V DC Through Hole B32024A3224M000

TDK B32024A3224M000 is a film capacitor designed for electronic applications requiring stable capacitance and high voltage resistance. Rated at 220 nF capacitance with a maximum AC and DC voltage rating of 300 V, this capacitor features a rugged polypropylene construction housed within a UL 94 V-0 certified plastic case with epoxy resin sealing.

The device is mounted using through-hole pins spaced 27.5 mm apart and each pin has a diameter of 0.8 mm, facilitating secure PCB integration. Its compact size with dimensions 31.5 mm (length) by 11 mm (width) by 19 mm (height) allows installation in space-constrained environments.

Operating from −40 °C to 110 °C, this capacitor maintains reliable performance under varying industrial conditions. It complies with important standards such as UL, CSA, and IEC, ensuring safety and quality. Its self-healing properties and high voltage handling make it an excellent candidate for interference suppression applications, particularly as a Y2 class capacitor for line-to-ground scenarios.

Constructed with polypropylene material and epoxy resin sealing. 220 nF capacitance for effective filtering in electronic circuits. 300 V AC and DC rated voltage tolerance. Through-hole mounting with 27.5 mm lead pitch and 0.8 mm lead diameter.

Maximum operating temperature of 110 °C. Compliance with UL and CSA certifications. Compact size enabling easy PCB mounting. Ideal for use in industrial, electronics manufacturing and power supply applications.

Widely used in industrial electronics, power and connector assemblies, this TDK Film Capacitor supports robust design and manufacturing of low-noise, interference-reduced electronic equipment. Explore the Electronics Components category for additional capacitors and related passive components.
