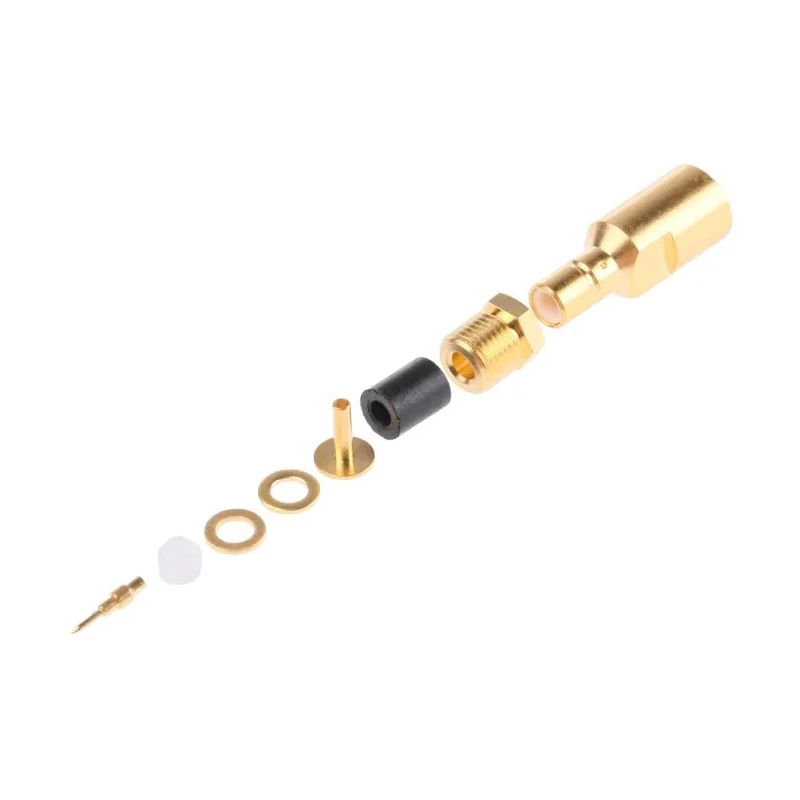

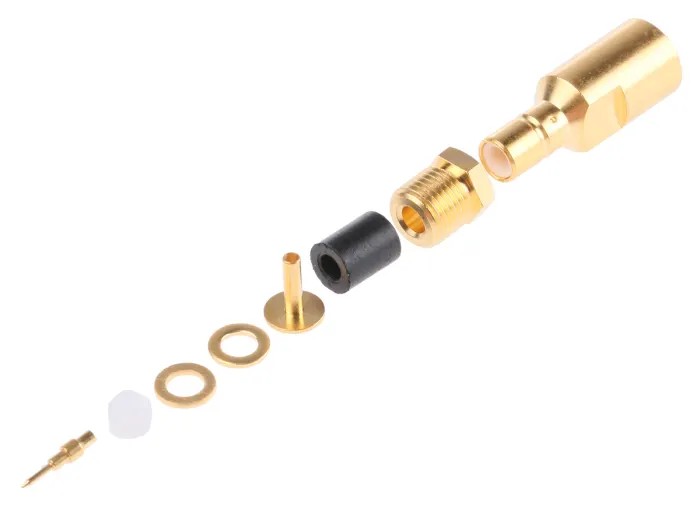

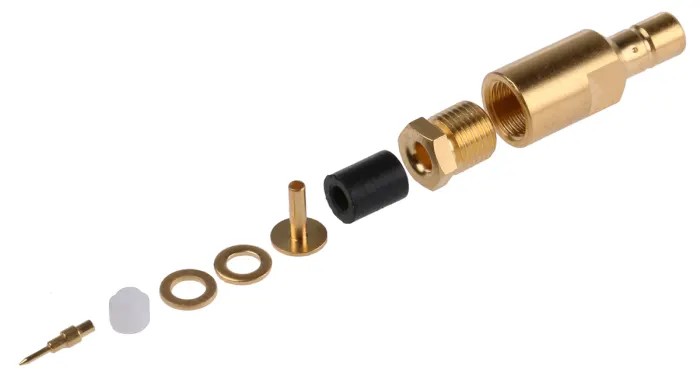

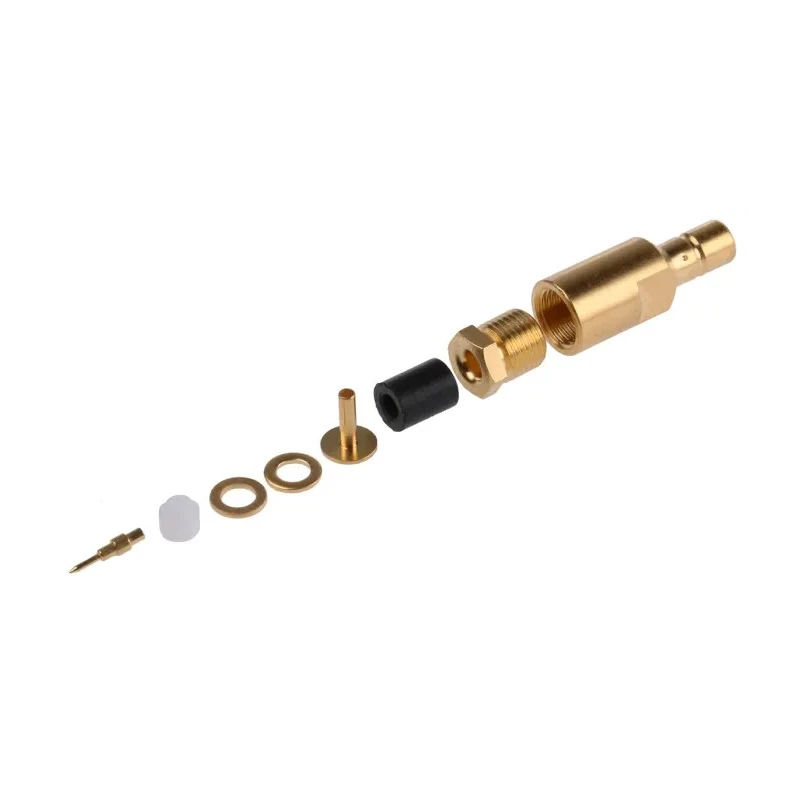

Radiall SMB Series Coaxial Connector Cable Female, 50 Ω, Clamp Termination, Straight Body, Gold Plated R114203000

Radiall R114203000 SMB Series Coaxial Connector Cable Female is designed for demanding RF applications requiring 50 Ω impedance and stable electrical performance. This connector features a female SMB interface with a straight orientation and clamp termination, suitable for RG178 and RG196 cable types, making it an ideal choice for secure and flexible cable connections.

The connector's body and contact are brass with gold over nickel plating, enhancing signal conductivity and providing excellent resistance to corrosion and wear. The gold plating on the body ensures long-lasting durability and reliable performance in industrial and electronic environments.

Capable of operating across a temperature range from -55°C up to 100°C, this Coaxial Connector maintains high performance under various environmental conditions. It supports an operating frequency up to 4 GHz, meeting the requirements for high-frequency electronic equipment and communication systems.

The SMB connector series includes a push-pull coupling mechanism that facilitates quick and secure mating cycles, reducing installation time and improving maintenance efficiency. Clamp termination secures the cable firmly, offering reliable mechanical and electrical connections.

This product is widely used in industrial electronic assemblies, telecommunications, RF test equipment, instrumentation, and laboratory applications, where precision and signal integrity are essential. Radiall's SMB connectors are recognized for their sub-miniature design compliant with MIL-C-39012 standards, ensuring compatibility and ease of integration.

Constructed for reliable RF coaxial connections with female connector gender. Compatible with RG178 and RG196 cable types for flexible applications. Features a gold-plated brass contact and body plating for excellent conductivity and corrosion resistance.

Operates efficiently within a temperature range of -55°C to 100°C. Supports operating frequency up to 4GHz for high-frequency signal integrity. Designed with a push-pull coupling system for quick connect and disconnect. Includes a clamp termination type ensuring secure cable attachment.

Complies with no specific approvals but meets SMB series engineering standards.
