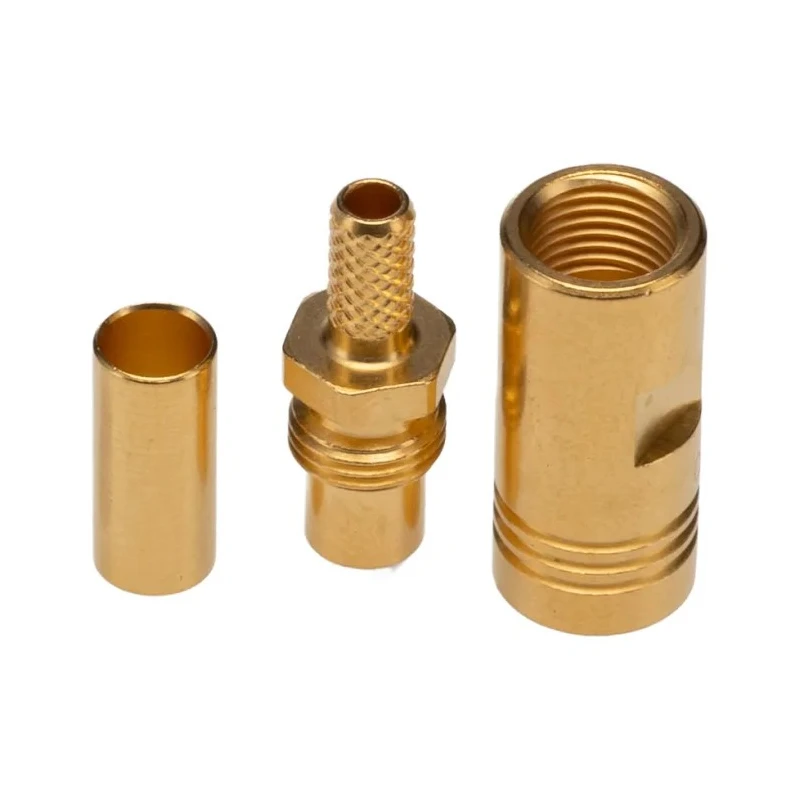

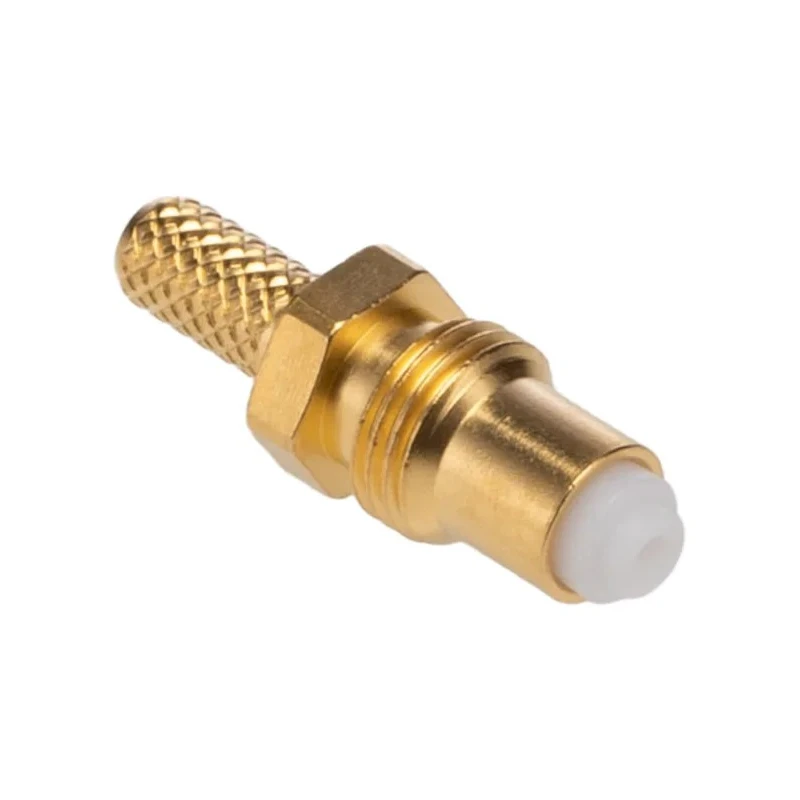

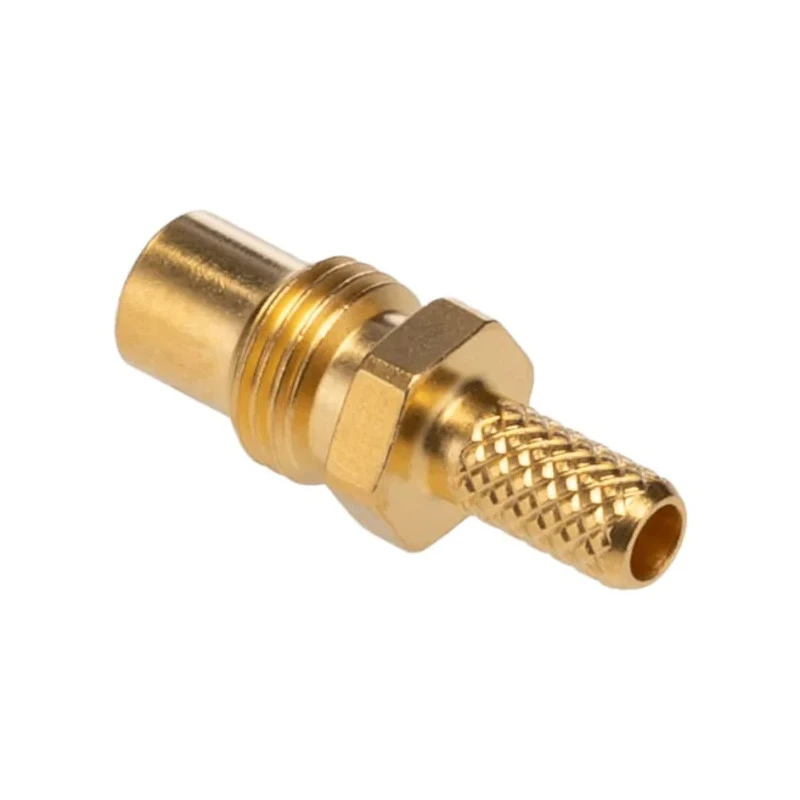

Radiall SMB Series Coaxial Connector Cable Male SMB 50 Ω, Straight Body Crimp R114075000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R114075000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG179, RG187, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| Telegartner Coaxial Connector Cable Female SMB, 50 Ω, Straight Body SolderBrand | Telegartner |
| RS PRO Coaxial Connector Cable Male SMB, 50 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- The connector features an impedance of 50 ohms for optimal signal transmission.
- It utilizes a push-pull coupling system ensuring quick and reliable connections.
- Compatible with RG179, RG187, RG188, and RG-316 cable types.
- Operates over a temperature range of -65°C to 165°C, suitable for diverse environments.
- Constructed with gold-plated body and gold over nickel contact plating for corrosion resistance.
- Designed with reverse polarity and male contact gender for specific application needs.
- Supports operating frequencies up to 4 GHz.
- Recommended for use in RF coaxial applications in electronics and communications industries.
Product Description
Radiall R114075000W SMB Series Coaxial Connector Cable Male 50 Ω is a high-quality coaxial connector designed for cable mounting applications. Featuring a straight body with crimp termination, it provides a robust and reliable interface for flexible cables such as RG179, RG187, RG188, and RG-316.
This connector operates efficiently within an impedance of 50 Ω and supports frequencies up to 4 GHz, making it suitable for RF communication applications in industrial, laboratory, and commercial electronics settings.
The body plating is gold, and the contact plating is gold over nickel on beryllium copper contact material, enhancing durability and signal integrity. It supports reverse polarity and features a push-pull coupling system for quick connect/disconnect functionality.
With an operating temperature range from -65°C to 165°C, this connector is suitable for harsh environmental conditions, providing reliable performance in a wide range of applications.
The SMB series connectors comply with MIL-C-39012 standards, offering a snap-on coupling mechanism for secure and rapid connection. This product is ideal for use in electronic components, power connectors, and RF coaxial connector assemblies.
The connector offers a straightforward crimp termination for easy cable assembly. Designed to meet demanding electrical and mechanical performance standards. Supports a bulkhead mounting configuration for flexible system integration.
High corrosion resistance due to gold plating on both body and contacts. Enables applications requiring stable impedance and minimal signal loss. Explore more Radiall products and other Coaxial Connectors in EnvMart for your electronics and communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features an impedance of 50 ohms, which is optimal for signal transmission.
It supports operating frequencies up to 4 GHz, making it suitable for various RF applications.
This model is compatible with RG179, RG187, RG188, and RG-316 cable types.
It operates efficiently within a temperature range of -65°C to 165°C, suitable for diverse environments.
This connector utilizes a crimp termination type for cable assembly.
The body is constructed with gold plating, and the contacts feature gold over nickel plating on beryllium copper material.
This model has a male contact gender, designed for specific application needs.
Yes, it features a push-pull coupling system, ensuring quick and reliable connections.
The SMB series connectors comply with MIL-C-39012 standards, ensuring performance reliability.
Yes, it supports a bulkhead mounting configuration for flexible system integration.
The country of origin for this connector is India.
