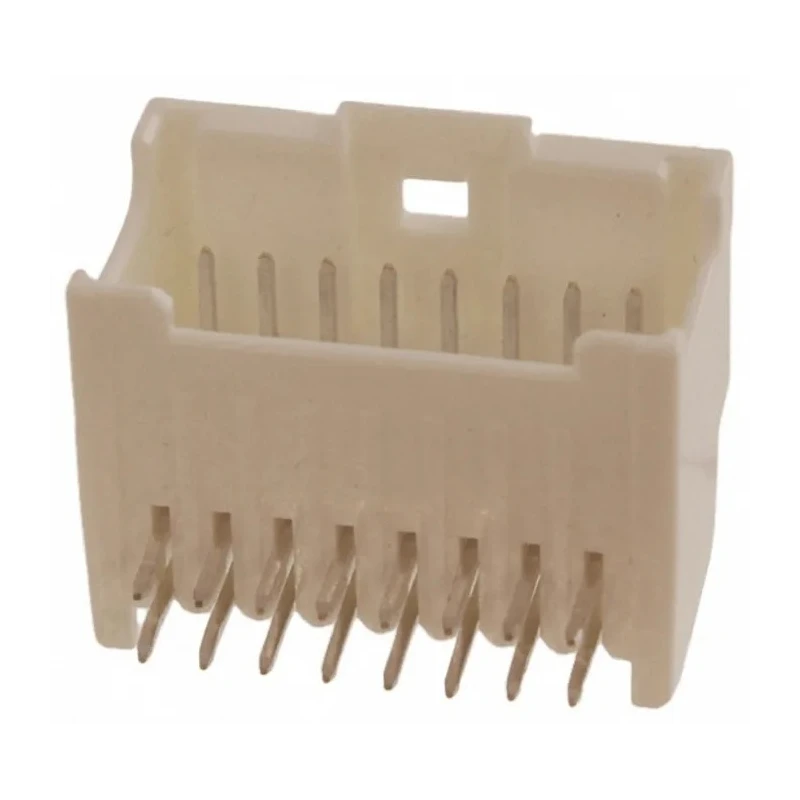

Molex MicroClasp Series Right Angle Through Hole PCB Header 8 Contact 2 mm Pitch 2 Row Shrouded 55959-0830

Molex 55959-0830 MicroClasp Series Right Angle Through Hole PCB Header is a compact and efficient connector designed for wire-to-board applications. Featuring 8 male contacts arranged in 2 rows with a 2 mm pitch, this shrouded header ensures secure connections with latch protection and an audible mating click for reliable assembly verification. The right angle orientation facilitates space-saving PCB layouts and easy mating/unmating operations.

The MicroClasp 2.00 mm pitch system combines low insertion and withdrawal forces with a unique inner positive lock for secure retention. Contacts are fabricated from brass and plated with tin to provide excellent electrical conductivity and resistance to corrosion. The housing is made from high-quality polyester, delivering mechanical strength and thermal stability up to 105°C.

This PCB header supports up to 3 A current and 250 V voltage, making it suitable for a wide range of electronic components, power distribution, and industrial electronics. Its through hole mounting ensures a robust mechanical connection especially important for industrial, manufacturing, and commercial electronic assemblies.

MicroClasp 2.00 mm pitch Wire-to-Board connector system for compact PCB designs. Right angle orientation with shrouded housing for secure and audible connection. Brass contact pins with tin plating for excellent electrical performance.

Rated for 3 A current and 250 V voltage supporting diverse applications. Living temperature range from -40°C to 105°C for demanding environments. Through hole mount type ensures strong mechanical PCB attachment. Low insertion force terminals with two-point contact design reduce wear and enhance reliability.

Housing made of durable polyester material provides thermal and mechanical stability. Inner positive lock mechanism offers secure retention and easy unmating. Industrial grade connector suitable for electronic, power, and control systems.

This PCB Header is ideal for applications in electronics manufacturing, industrial automation, communication devices, and power distribution systems. Molex MicroClasp connectors enable designers to create reliable and space-efficient assemblies suitable for high-volume production. Browse EnvMart catalog for more Molex connectors and PCB interconnect solutions.
