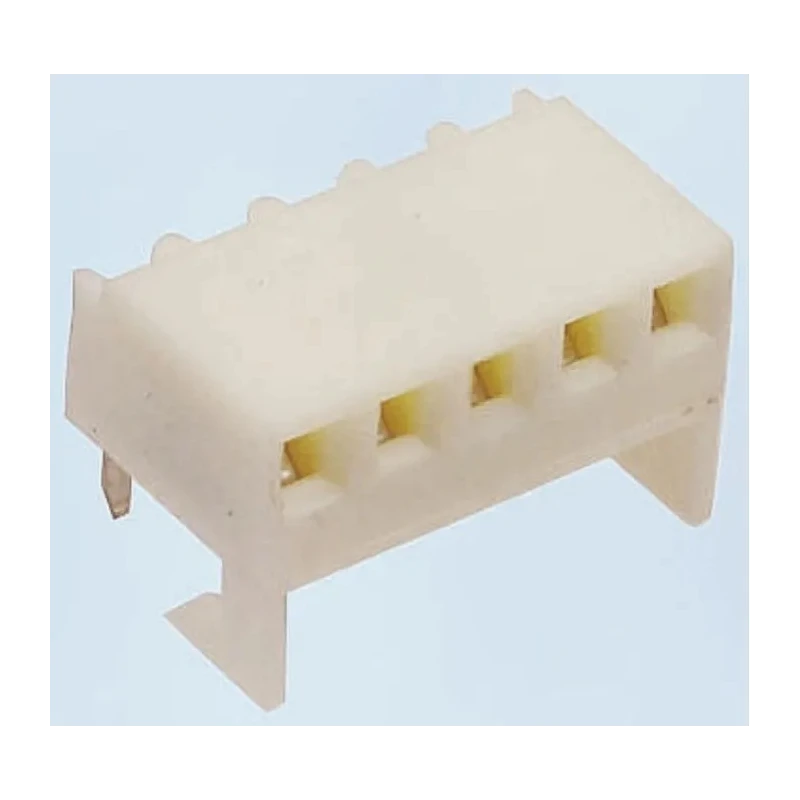

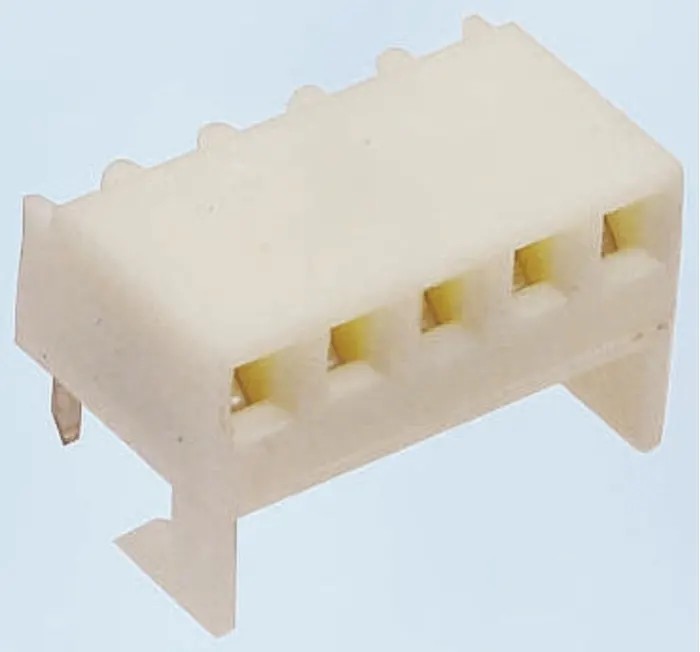

Molex KK 254 Series Right Angle Through Hole PCB Socket 5-Contact 1 Row 2.54 mm Pitch 250V 2.5A 38-00-1335
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Operates at a voltage rating of 250V and current rating of 2.5A.
- Constructed with a nylon housing material that is UL94 V-0 rated for flame resistance.
- Right angle orientation designed for through-hole mounting on PCBs.
- Contact gender is female with bronze material and tin plating for reliable connectivity.
- Suitable for operating temperatures ranging from -40°C to 105°C.
- Part of the KK 254 series known for dependable standard PCB sockets.
- Connector system supports board-to-board, signal applications.
- Manufactured in Mexico ensuring international quality standards.
Product Description
The Molex 38-00-1335 KK 254 Series Right Angle Through Hole PCB Socket is engineered for secure and efficient board-to-board signal connections. Featuring 5 female contacts arranged in a single row with a 2.54 mm pitch, this PCB socket supports current up to 2.5A and voltage up to 250V, suitable for various electronic applications.
The connector housing is made from durable nylon material rated UL94 V-0, providing excellent flame resistance and mechanical stability. The right angle orientation is ideal for space-saving PCB designs, ensuring robust through-hole mounting.
Contacts are manufactured from bronze and plated with tin, which offers reliable conductivity and protection against corrosion. This socket is engineered to perform reliably in operating temperatures ranging from -40°C to 105°C, making it suitable for demanding industrial, electronic, and communication equipment environments.
Part of the KK 254 series, this model assures a standard design with proven performance attributes, enhancing your electronic assembly efficiency. The connector system facilitates board-to-board signal transfers efficiently and effectively.
Manufactured in Mexico to strict quality standards, this PCB socket is ideal for use in industrial electronics, telecommunications, computing devices, and other applications requiring reliable PCB connectivity.
Operates at a voltage up to 250V and current rating of 2.5A. Durable nylon housing with UL94 V-0 flame rating. Right angle, through-hole mount design for compact assembly. Female bronze contacts with tin plating for corrosion resistance.
Temperature range from -40°C to 105°C ensures durability in varied environments. Standard 2.54 mm pitch for compatibility with common PCB designs. Supports board-to-board, signal connector system applications. Explore EnvMart for more Molex PCB Sockets and related electronic components designed for industrial and commercial electronics manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 250V and a current rating of 2.5A.
It features a through-hole mounting design, which is suitable for secure PCB assembly.
The contacts are arranged with a pitch of 2.54 mm, which is standard for many PCB designs.
This socket has a right angle orientation, allowing for compact assembly on PCBs.
The housing is made from nylon, while the contacts are bronze with tin plating for corrosion resistance.
It can operate in temperatures ranging from -40°C to 105°C, making it suitable for various environments.
This model features 5 female contacts arranged in a single row.
It supports a board-to-board signal connector system, facilitating efficient signal transfers.
It is manufactured in Mexico, adhering to international quality standards.
The contacts are plated with tin, which provides reliable conductivity and protection against corrosion.
This model is part of the KK 254 series, known for its reliable performance in PCB connectivity.
It uses solder termination, which is common for securing connections on PCBs.
