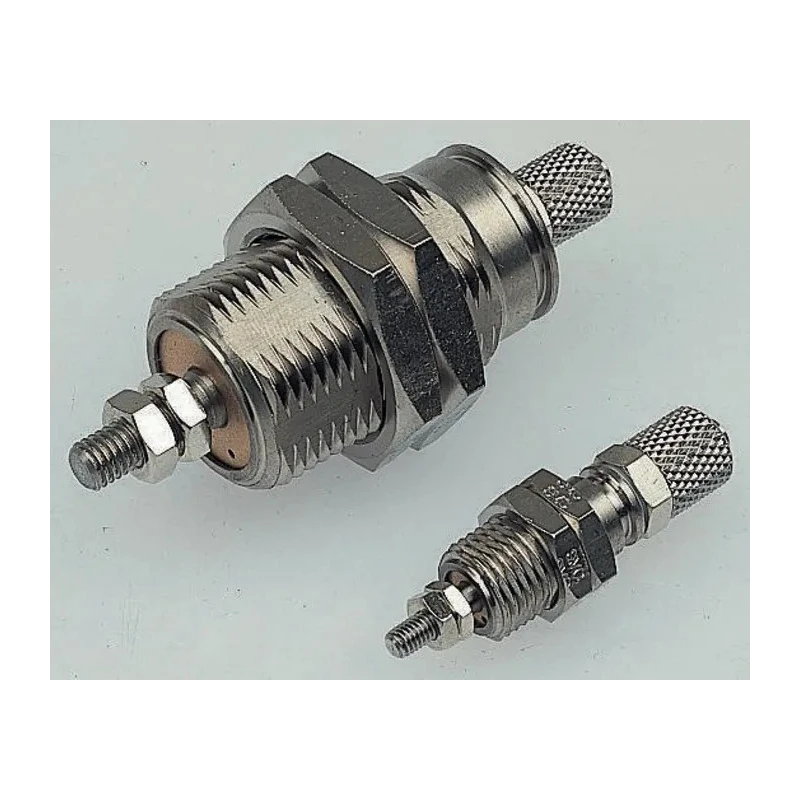

SMC 5 mm Pneumatic Piston Rod Cylinder Single Acting Panel Mount Brass Body 27.5mm Length CJPB6-5H4Z
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Brass |
| Length | 27.5mm |
| Model | CJPB6-5H4Z |
| Mount Type | Panel |
| Series | CJP |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 5mm |
| Rod Type | Spring Return |
| Action Type | Single Acting |
| Piston Rod Thread Standard | Metric |
| Stroke tolerance | +1.0mm |
| SMC 5 mm Pneumatic Piston Rod Cylinder - CJP Series, Single Acting ActingBrand | SMC |
Key Features
- Single acting pneumatic piston rod cylinder with spring return for efficient actuation.
- Panel mount type with a compact 27.5 mm total length suitable for tight installations.
- Constructed with a durable brass body ensuring strength and corrosion resistance.
- Metric piston rod thread standard and non-cushioned design for reliable performance.
- Maximum operating temperature of 70°C ideal for industrial environments.
- Proof pressure up to 10.5 bar and operating pressure range of 1.5 to 7 bar for versatile pneumatic applications.
- Stroke tolerance of +1.0 mm maintains accurate positioning during operation.
- Designed and manufactured in Japan, ensuring high quality and reliability.
Product Description
SMC CJPB6-5H4Z Pneumatic Piston Rod Cylinder is a miniature, single acting pneumatic actuator designed for precise control in fluid power applications. Featuring a brass body and panel mount configuration, this cylinder offers robust construction combined with space-saving dimensions including a compact 27.5 mm length and 5 mm stroke.
The cylinder operates with a spring return mechanism, eliminating the need for external return air and lubrication. Its metric threaded rod end and non-cushioned design provide dependable movement for industrial automation, assembly, and manufacturing processes.
It supports a wide operating pressure range from 1.5 bar minimum to 7 bar maximum, with a proof pressure of 10.5 bar and a maximum piston speed of 500 mm/s. The maximum operating temperature of 70°C allows use in typical factory environments without performance degradation.
With stroke tolerance of +1.0 mm, this piston rod cylinder delivers accurate linear motion control for pneumatic tooling, packaging, robotics, and other mechanical applications that require precision actuation.
Single acting pneumatic piston rod cylinder with spring return for consistent actuation. Panel mount type suitable for compact installations in machinery or instruments. Brass body material offers corrosion resistance and durability.
Metric thread standard on piston rod enables secure mounting and integration. Maximum operating temperature up to 70°C for demanding industrial use. Proof pressure rated at 10.5 bar ensures safety margin above operating pressures.
Stroke tolerance of +1.0 mm maintains precise motion control. Manufactured in Japan with strict quality standards.
This pneumatic piston rod cylinder is ideal for industrial, manufacturing, laboratory automation, and HVAC applications requiring reliable single-acting linear actuation. It is part of the SMC CJP series known for compactness and robustness.
Explore more pneumatic cylinders and related fluid power equipment in the Hydraulic & Pneumatic Tools category on EnvMart.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C, making it suitable for typical industrial environments.
This pneumatic piston rod cylinder has a stroke length of 5 mm, allowing for precise actuation in various applications.
It features a panel mount type, which is ideal for compact installations in machinery or instruments.
The operating pressure range for this cylinder is from 1.5 bar to 7 bar, providing versatility for different pneumatic applications.
The proof pressure for this model is rated at 10.5 bar, ensuring a safety margin above the maximum operating pressure.
The body of this cylinder is constructed from brass, offering strength and corrosion resistance.
The stroke tolerance for this model is +1.0 mm, which helps maintain accurate positioning during operation.
It operates as a single acting cylinder with a spring return mechanism, eliminating the need for external return air.
This pneumatic piston rod cylinder is manufactured in Japan, ensuring adherence to high-quality standards.
The maximum piston speed for this model is 500 mm/s, allowing for efficient actuation in various applications.
The piston rod uses a metric thread standard, facilitating secure mounting and integration into systems.
This model is suitable for industrial, manufacturing, laboratory automation, and HVAC applications that require reliable linear actuation.
